P-215-001e - 第42页
MODEL TIM-X100F/R 0302-002 40 カバー部 COVER SECTION Fig. G-1 側面カバー Side Cover Fig.G-1 TIM-X100-002 See Fig.B-1 Key No.1 14 49 30 15 30 49 48 13 17 35 6 21 23 38 45 46 47 22 36 37 42 38 12 20 27 33 32 31 28 39 40 43 44 27 28…
MODEL TIM-X100F/R
0302-002
39
Fig.G
TIM-X100-002

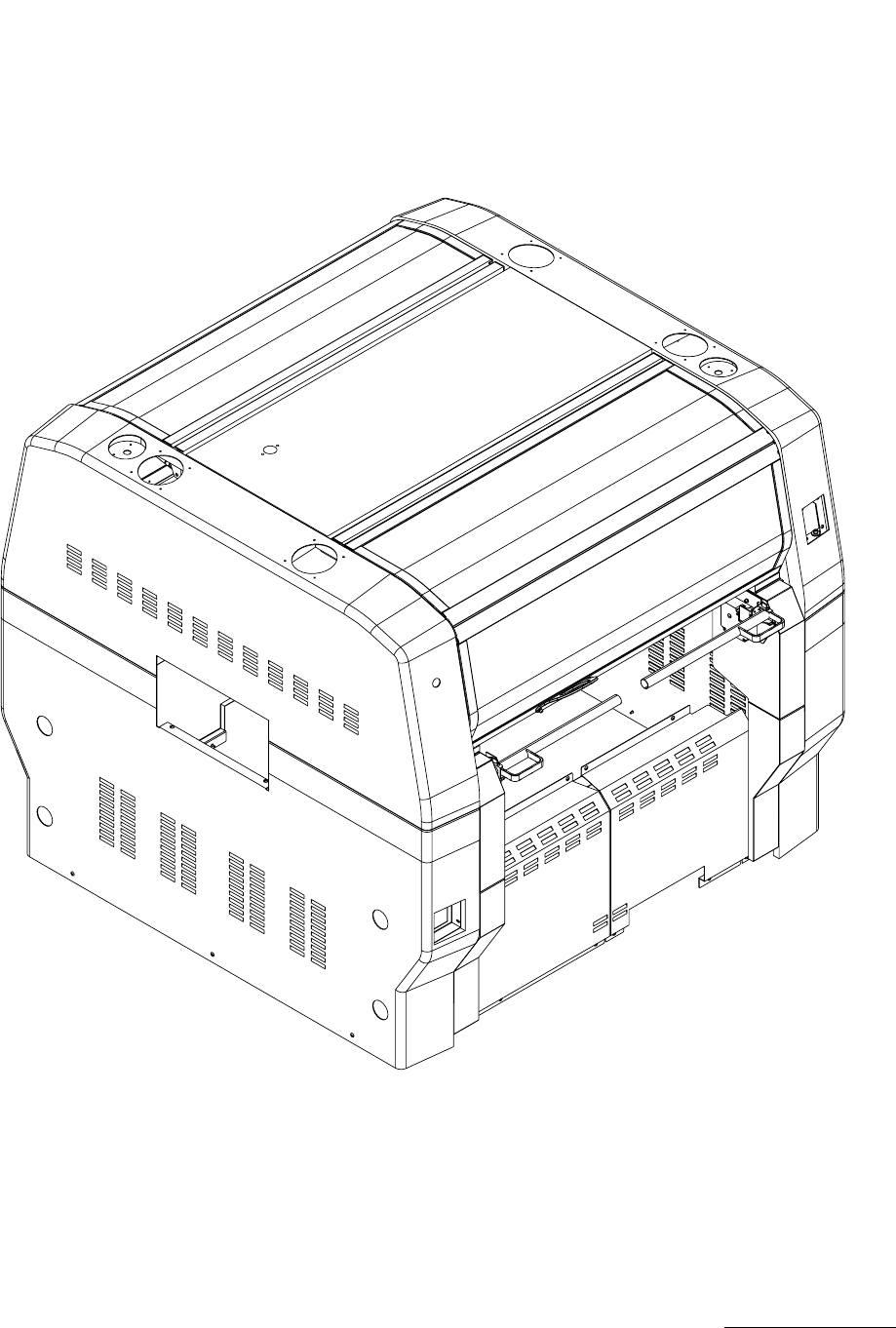

Fig. G カバー部 COVER SECTION
MODEL TIM-X100F/R
0302-002
40
カバー部 COVER SECTION
Fig. G-1 側面カバー Side Cover
Fig.G-1
TIM-X100-002
See Fig.B-1
Key No.1
14
49
30
15
30
49
48
13
17
35
6
21
23
38
45
46
47
22
36
37
42
38
12
20
27
33
32
31
28
39
40
43
44
27
28
38
42
11
43
44
39
40
40
39
38
28
27
33
32
31
12
42
43
44
16
20
42
45
23
38
22
46
47
38
28
27
11
39
40
43
44
35
36
37
See Fig.GB-5
Key No.342
6
21
See Fig.GB-3
Key No.142
MODEL TIM-X100F/R
0302-002
41
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
G-1
6 630 115 9218 BRACKET 2 750G--210-006
11 630 120 4062 BRACKET 2 750G--210-011
12 630 120 4079 BRACKET 2 750G--210-012
13 630 106 3485 COVER 1 750G--210-013
14 630 105 9983 COVER 1 750G--210-014
15 630 105 9990 COVER 1 750G--210-015
16 630 117 6581 COVER 1 750G--210-016
17 630 117 6598 COVER 1 750G--210-017
20 630 111 4033 CAP 4 750G--210-223
21 630 103 2672 SWITCH,LIMIT 2 YSOL01(SQ1),YSOL02(SQ2)
750G--210-021
22 630 073 5727 SWITCH,LIMIT 2 750G--210-022
23 630 110 8421 BOLT,HEX-SCT(BUTTON HEAD) 4 750G--210-224
27 630 103 7387 SENSOR,PELEC 2 BPH082AT,BPH082AR,
BPH082BT,BPH082BR
750G--210-027
28 630 103 7400 SENSOR,PELEC 2 750G--210-028
30 630 109 2676 NAME PLATE 2 750G--210-222
31 630 001 0237 WASHER 8 750G--210-031
32 411 141 3001 WASHER SPR 6 8 750G--210-032
33 630 000 7893 BOLT,HEX-SCT 8 750G--210-033
35 411 141 4107 WASHER V 5X10X1 4 750G--210-035
36 411 141 6705 WASHER SPR 5 4 750G--210-036
37 630 000 7756 BOLT,HEX-SCT 4 750G--210-037
38 411 141 4008 WASHER V 4X9X0.8 12 750G--210-038
39 411 141 2905 WASHER SPR 4 8 750G--210-039
40 630 000 7619 BOLT,HEX-SCT 8 750G--210-040
42 411 141 3902 WASHER V 3X7X0.5 8 750G--210-042
43 411 141 2806 WASHER SPR 3 8 750G--210-043
44 630 000 7558 BOLT,HEX-SCT 8 750G--210-044
45 411 119 2005 WASHER F 4X8X0.8 6 750G--210-045
46 411 008 1706 WASHER SPR 4 6 750G--210-046
47 411 162 1505 SCR PAN 4X20 6 750G--210-047
48 411 050 5004 SCR TRS 3X6 2 750G--210-048
49 411 113 9109 SCR TRS 5X10 10 750G--210-049
