MODEL TIM-X100F/R 0302-002 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 51 GB-2 10 1 630 1 14 2555 FRAME 1 10 2 630 1 14 2586 FRAME 2 10 3 630 1 14 2746 P ANEL 1 10 4 630 1 14 2593 FRAME 1 10 5 630 106 8404 MECH P A…

100%1 / 222
MODEL TIM-X100F/R
0302-002
50
安全扉 Safety Door

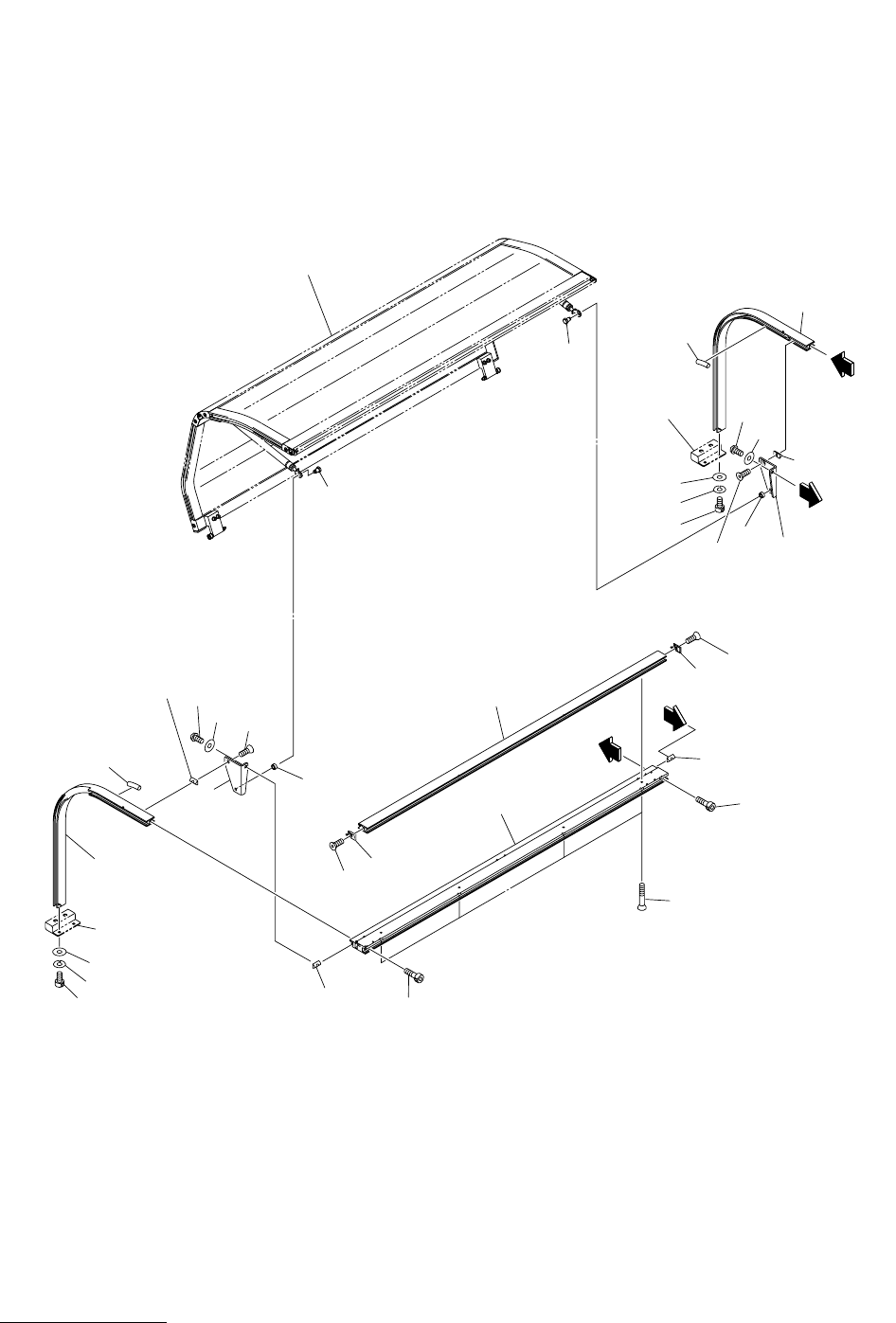

Fig. GB-2 後面安全扉 Rear Safety Door
Fig.GB-2
TIM-X100-002
133
132
131
132
134
136
138
122
123
123
124
124
102
120
110
105
113
113
114
114
115
125
125
114
114
117
117
117
117
117
117
126
116
125
114
126
115
108
106
107
112
102
109
111
111
111
120
120
120
127
111
119
119
103
101
104
135
137
143
143
143
145
145
145
143
145
106
107
112
125
114
116
142
146
146
141
139
139
141
140
148
148
147
149
149
MODEL TIM-X100F/R
0302-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
51
GB-2
101 630 114 2555 FRAME 1
102 630 114 2586 FRAME 2
103 630 114 2746 PANEL 1
104 630 114 2593 FRAME 1
105 630 106 8404 MECH PARTS(BRACKET) 1
106 630 117 6208 MECH PARTS(SLEEVE) 2
107 630 117 6192 MECH PARTS(ROLLAR) 2
108 630 106 8411 MECH PARTS(BRACKET) 1
109 630 103 4669 MECH PARTS(CAP) 1
110 630 103 4676 MECH PARTS(CAP) 1
111 630 098 1926 MECH PARTS(CAP) 4
112 630 117 6215 BOLT 2
113 411 141 4107 WASHER V 5X10X1 2 FW5
114 411 141 6705 WASHER SPR 5 6 SW5
115 411 141 0505 NUT HEX 5 2 M5
116 630 000 7787 BOLT,HEX-SCT 2 M5X25
117 630 109 4298 BOLT 6
119 630 059 0012 NUT 2
120 630 106 8398 MECH PARTS(JOINT) 4
122 630 114 2562 FRAME 1
123 630 110 7974 MECH PARTS(CAP) 2
124 630 109 4649 BOLT 2
125 630 029 1391 WASHER 4
126 630 000 7794 BOLT,HEX-SCT 2
127 630 114 2708 SHEET 2
131 630 114 2531 FRAME 1
132 630 114 2579 FRAME 2
133 630 114 2739 PANEL 1
134 630 114 2555 FRAME 1
135 630 103 5390 MECH PARTS(CAP) 1
136 630 103 5383 MECH PARTS(CAP) 1
137 630 103 4669 MECH PARTS(CAP) 1
138 630 103 4676 MECH PARTS(CAP) 1
139 630 103 4744 SHOCK ABSORBER 2
140 630 114 2814 BRACKET 1
141 630 098 0851 MECH PARTS(BOLT) 2
142 630 114 2821 BRACKET 1
143 630 106 8398 MECH PARTS(JOINT) 4
145 630 109 4298 BOLT 4
146 630 109 3710 BOLT 4
147 630 114 2548 FRAME 1
148 630 110 7974 MECH PARTS(CAP) 2
149 630 109 4649 BOLT 2
MODEL TIM-X100F/R
0302-002
52
安全扉 Safety Door

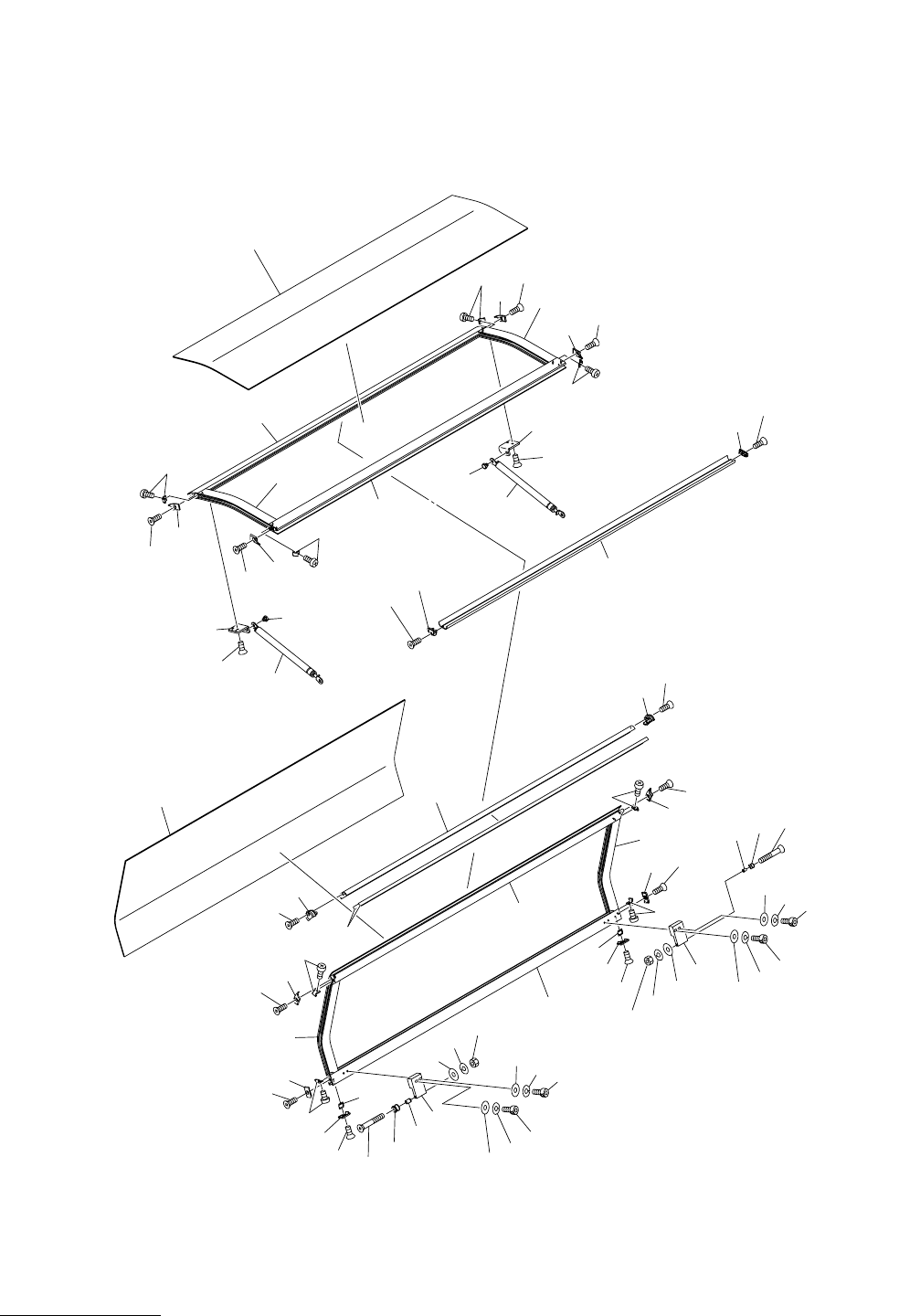

Fig. GB-3 ガイドフレーム後側 Guide Frame-Rear Side
