MODEL TIM-X100F/R 01 12-001 61 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE MB-1 1 630 099 5503 GUIDE,LINEAR 6 750MB-210-001 2 630 1 1 1 7850 HOLDER 6 750MB-210-002 3 630 1 12 4421 BO L T ,HEX-SCT 1 2 750MB-210-003 …
MODEL TIM-X100F/R
0112-001
60
ヘッド部 L HEAD SECTION L
Fig. MB-1 ノズル上下部 Nozzle Leveller
3
1
7
2
5
8
9
4
Fig.MB-1
TIM-X100
3
MODEL TIM-X100F/R
0112-001
61
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MB-1
1 630 099 5503 GUIDE,LINEAR 6 750MB-210-001
2 630 111 7850 HOLDER 6 750MB-210-002
3 630 112 4421 BOLT,HEX-SCT 12 750MB-210-003
4 630 111 7867 SPRING,FLAT 6 750MB-210-004
5 630 095 4630 SHAFT 6 750MB-210-005
7 630 106 1191 SPRING,COMP 6 750MB-210-007
8 630 094 1128 SPACER 6 750MB-210-008
9 630 093 9460 CAM FOLLOWER 6 750MB-210-009
MODEL TIM-X100F/R
0302-002
62
ヘッド部 L HEAD SECTION L

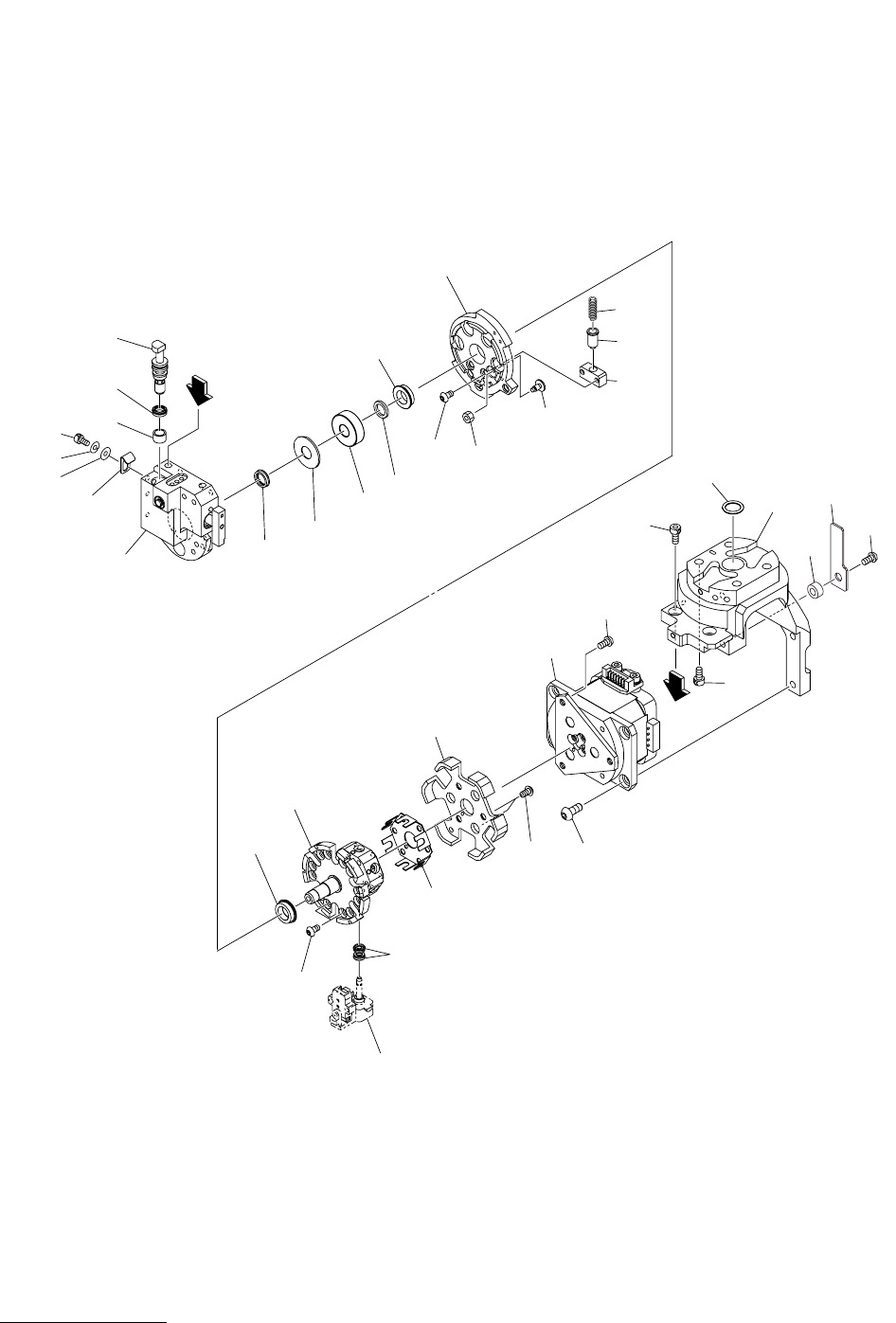

Fig. MB-2 NC 軸 NC Axis
118
121
133
120
A
122
119
145
146
147
125
116
114
113
112
111
104
109
108
107
111
101
105
103
104
124
144
110
102
104
133
Fig.MB-2
TIM-X100-002
115
See Fig.MB-1
106
104
123
148
127
126
A
