MODEL TIM-X100F/R 0302-002 65 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE MB-3 20 1 630 105 3073 FRAME 1 750MB-210-201 20 2 630 096 1713 SEAL,RING 1 750MB-210-202 20 3 630 094 1548 SEAL 2 750MB-210-203 20 4 630 094…
MODEL TIM-X100F/R
0112-001
64
ヘッド部 L HEAD SECTION L
Fig. MB-3 角度補正部 Angle Adjuster
Fig.MB-3
TIM-X100
235
232
230
210
209
204
203
202
203
204
201
208
297
299
251
252
298
298
235
232
231
235
234
232
242
243
241
216
241
242
243
239
238
237
218
231
215
231
232
231
235
206
224
219
228
217
231
232
235
213
231
214
205
211
232
236
212
221
222
245
220
231
232
235
See Fig.MB-4
Key No.305
240
231
232
233
244
MODEL TIM-X100F/R
0302-002
65
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MB-3
201 630 105 3073 FRAME 1 750MB-210-201
202 630 096 1713 SEAL,RING 1 750MB-210-202
203 630 094 1548 SEAL 2 750MB-210-203
204 630 094 1555 SEAL 2 750MB-210-204
205 630 097 3907 COUPLING 1 750MB-210-205
206 630 094 1272 PLATE 1 750MB-210-206
208 630 064 0700 BOLT 3 750MB-210-208
209 630 094 1579 COUPLING 1 750MB-210-209
210 630 093 9163 MOTOR,AC-SERVO 1 MSVM-Z1,SGMAH-01ABA21
750MB-210-210
211 630 094 1586 BLOCK 1 -YSV51,-YSV52 750MB-210-211
212 630 094 1593 AIR LINE EQPT 2 750MB-210-212
213 630 094 1609 AIR LINE EQPT 1 750MB-210-213
214 630 003 6541 AIR LINE EQPT 1 750MB-210-214
215 630 094 1296 BRACKET 1 750MB-210-215
216 630 094 1616 SENSOR,PHOTO 1 -BPH021 750MB-210-216
217 630 098 3012 BRACKET 1 750MB-210-217
218 630 094 1654 SENSOR,PHOTO 2 -BPH022,-BPH023 750MB-210-218
219 630 094 1739 SEAL 1 750MB-210-219
220 630 096 1843 BRACKET 1 750MB-210-220
221 630 094 3573 AIR LINE EQPT 1 750MB-210-221
222 630 096 9467 TUBE 1 750MB-210-222
224 630 095 3596 SET SCREW 2 750MB-210-224
228 630 000 7749 BOLT,HEX-SCT 4 750MB-210-228
230 411 141 5906 WASHER F 4X8X0.8 2 750MB-210-230
231 411 141 4008 WASHER V 4X9X0.8 13 750MB-210-231
232 411 141 2905 WASHER SPR 4 14 750MB-210-232
233 630 000 7602 BOLT,HEX-SCT 2 750MB-210-233
234 630 000 7626 BOLT,HEX-SCT 1 750MB-210-234
235 630 000 7633 BOLT,HEX-SCT 11 750MB-210-235
236 630 000 7671 BOLT,HEX-SCT 2 750MB-210-236
237 411 141 3902 WASHER V 3X7X0.5 1 750MB-210-237
238 411 141 2806 WASHER SPR 3 1 750MB-210-238
239 630 000 7527 BOLT,HEX-SCT 1 750MB-210-239
240 630 000 7534 BOLT,HEX-SCT 3 750MB-210-240
241 411 119 1909 WASHER V 3X7X0.5 6 750MB-210-241
242 411 086 4408 WASHER SPR 3 12 750MB-210-242
243 411 042 0703 SCR PAN 3X8 6 750MB-210-243
244 630 008 2296 SET SCREW 1 750MB-210-244
245 411 113 7501 SCR TRS 4X10 1 750MB-210-245
251 630 121 3682 P.C.B,MOUNT(CN HEAD) 1 UA94*002*0001 750MB-210-152
252 630 105 7965 ACCESSORY,P.C.B 4 750MB-210-052
297 411 041 8908 SCR PAN 3X6 4 750MB-210-097
298 411 086 4408 WASHER SPR 3 8 750MB-210-098
299 411 119 1909 WASHER V 3X7X0.5 4 750MB-210-099
MODEL TIM-X100F/R
0302-002
66
ヘッド部 L HEAD SECTION L

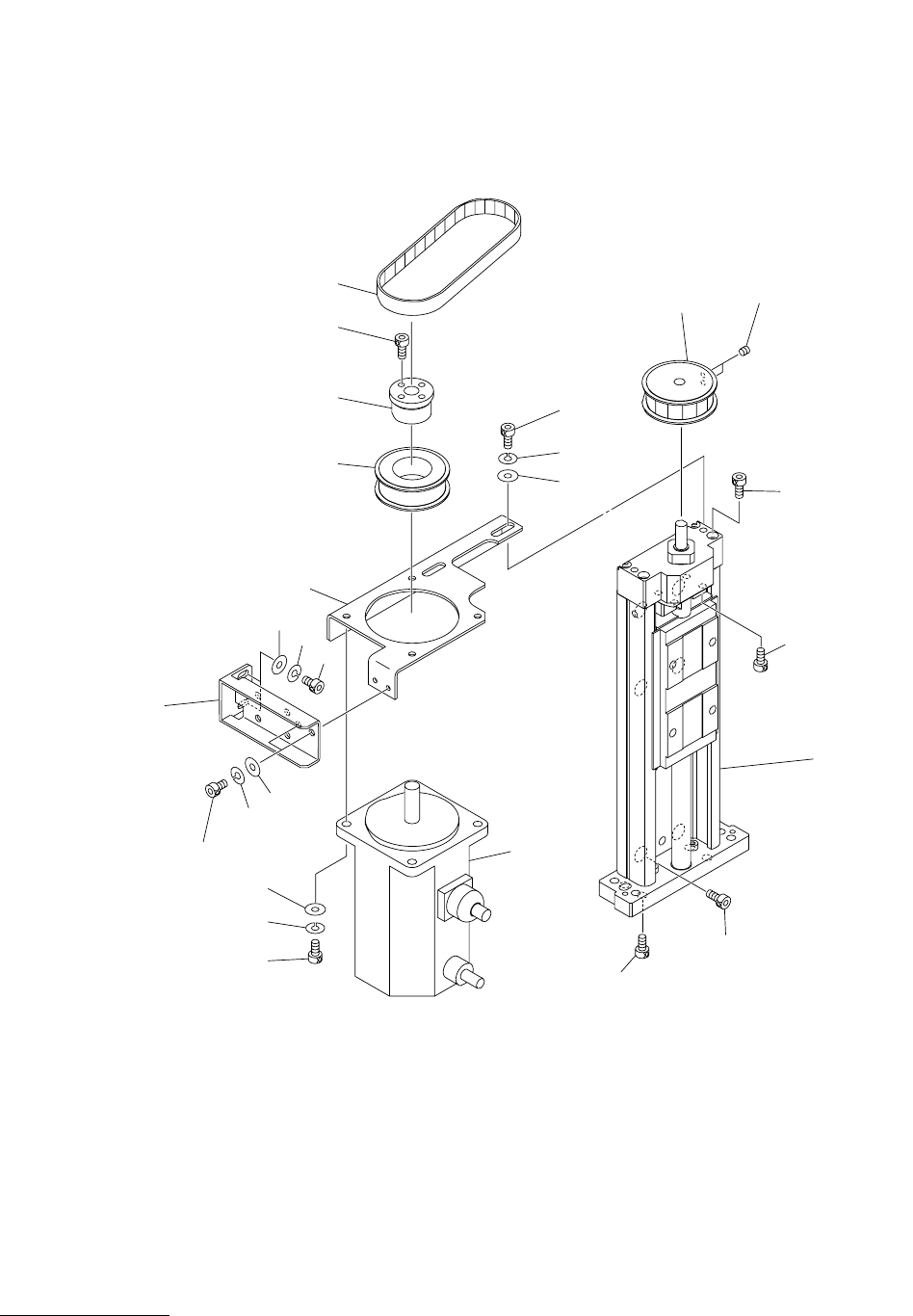

Fig. MB-4 L 軸駆動部 L Axis Driver
Fig.MB-4
TIM-X100-002
334
306
344
305
303
302
308
336
301
341
328
337
338
338
337
336
331
332
333
304
340
307
332
331
339
342
