MODEL TIM-X100F/R
0112-001
80
ヘッド部 R HEAD SECTION R
Fig. MC-3 角度補正部 Angle Adjuster
Fig.MC-3
TIM-X100
235
232
230
210
209
204
203
202
203
204
201
208
228
217
231
232
235
206
205
213
211
212
222
231
232
236
214
221
219
231
232
235
231
231
215
231
232
218
237
238
239
241
242
243
241
216
242
243
234
220
245
231
232
235
232
235
235
224
See Fig.MC-4
Key No.305
244
231
232
233
297
299
251
252
298
298
240
MODEL TIM-X100F/R
0302-002
81
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MC-3
201 630 105 3080 FRAME 1 750MC-210-803
202 630 096 1713 SEAL,RING 1 750MC-210-202
203 630 094 1548 SEAL 2 750MC-210-203
204 630 094 1555 SEAL 2 750MC-210-204
205 630 097 3907 COUPLING 1 750MC-210-205
206 630 094 1272 PLATE 1 750MC-210-206
208 630 064 0700 BOLT 3 750MC-210-208
209 630 094 1579 COUPLING 1 750MC-210-209
210 630 093 9163 MOTOR,AC-SERVO 1 MSVM-Z2,SGMAH-01ABA21
750MC-210-210
211 630 094 3733 BLOCK 1 -YSV51,-YSV52 750MC-210-805
212 630 094 1593 AIR LINE EQPT 2 750MC-210-212
213 630 094 1609 AIR LINE EQPT 1 750MC-210-213
214 630 003 6541 AIR LINE EQPT 1 750MC-210-214
215 630 094 1753 BRACKET 1 750MC-210-801
216 630 094 1616 SENSOR,PHOTO 1 -BPH021 750MC-210-216
217 630 098 3050 BRACKET 1 750MC-210-804
218 630 094 1654 SENSOR,PHOTO 2 -BPH022,-BPH023 750MC-210-218
219 630 094 1739 SEAL 1 750MC-210-219
220 630 096 1829 BRACKET 1 750MC-210-806
221 630 094 3573 AIR LINE EQPT 1 750MC-210-221
222 630 096 9467 TUBE 1 750MC-210-222
224 630 095 3596 SET SCREW 2 750MC-210-224
228 630 000 7749 BOLT,HEX-SCT 4 750MC-210-228
230 411 141 5906 WASHER F 4X8X0.8 2 750MC-210-230
231 411 141 4008 WASHER V 4X9X0.8 13 750MC-210-231
232 411 141 2905 WASHER SPR 4 14 750MC-210-232
233 630 000 7602 BOLT,HEX-SCT 2 750MC-210-233
234 630 000 7626 BOLT,HEX-SCT 1 750MC-210-234
235 630 000 7633 BOLT,HEX-SCT 11 750MC-210-235
236 630 000 7671 BOLT,HEX-SCT 2 750MC-210-236
237 411 141 3902 WASHER V 3X7X0.5 1 750MC-210-237
238 411 141 2806 WASHER SPR 3 1 750MC-210-238
239 630 000 7527 BOLT,HEX-SCT 1 750MC-210-239
240 630 000 7534 BOLT,HEX-SCT 3 750MC-210-240
241 411 119 1909 WASHER V 3X7X0.5 6 750MC-210-241
242 411 086 4408 WASHER SPR 3 12 750MC-210-242
243 411 042 0703 SCR PAN 3X8 6 750MC-210-243
244 630 008 2296 SET SCREW 1 750MC-210-244
245 411 113 7501 SCR TRS 4X10 1 750MC-210-245
251 630 121 3682 P.C.B,MOUNT(CN HEAD) 1 UA94*002*0001 750MC-210-152
252 630 105 7965 ACCESSORY,P.C.B 4 750MC-210-052
297 411 041 8908 SCR PAN 3X6 4 750MC-210-097
298 411 086 4408 WASHER SPR 3 8 750MC-210-098
299 411 119 1909 WASHER V 3X7X0.5 4 750MC-210-099
MODEL TIM-X100F/R
0302-002
82
ヘッド部 R HEAD SECTION R

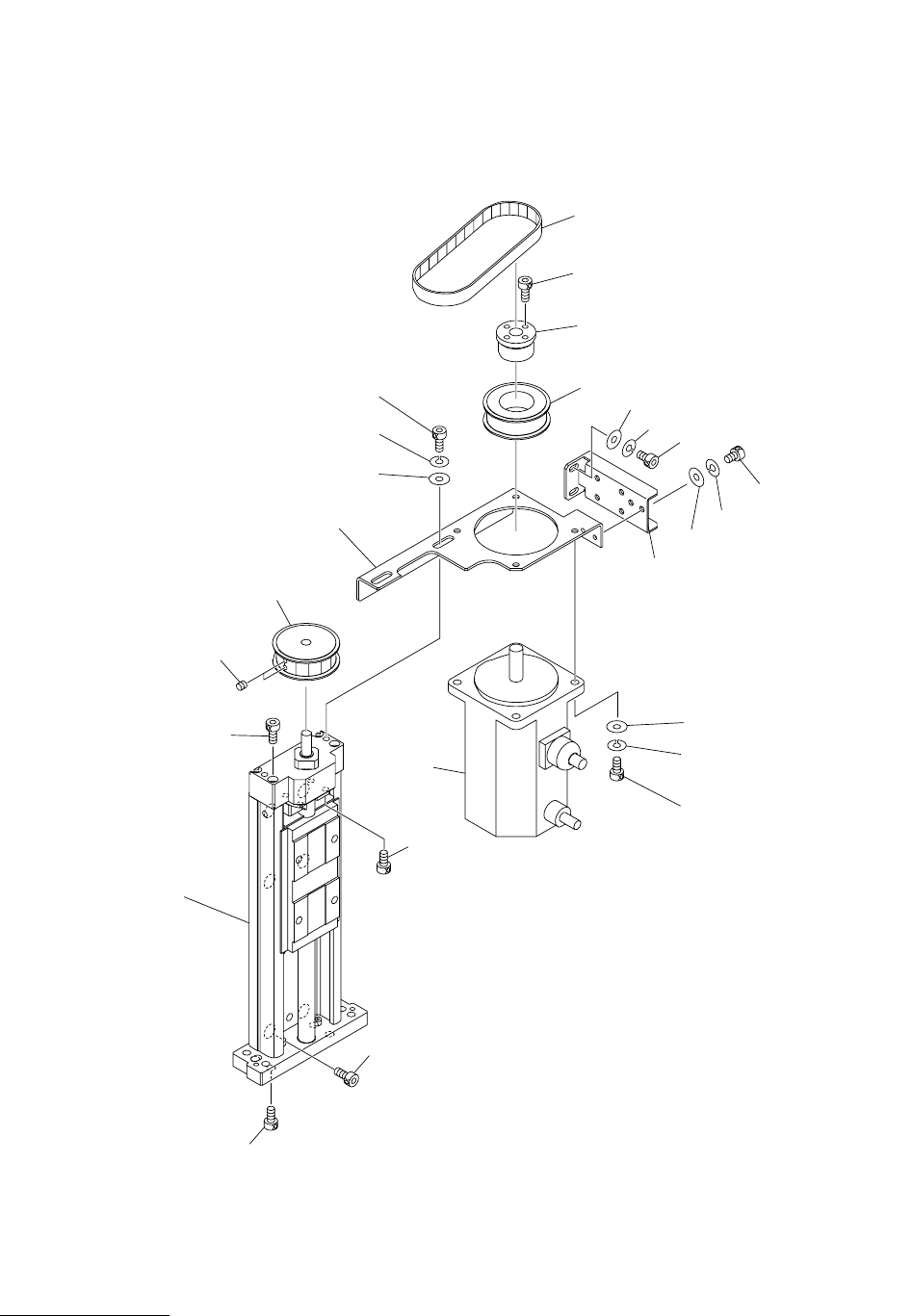

Fig. MC-4 L 軸駆動部 L Axis Driver
Fig.MC-4
TIM-X100-002
303
334
332
331
302
344
306
305
301
331
332
332
308
304
340
336
337
338
338
337
336
307
341
328
339
342
