MODEL TIM-X100F/R 0302-002 85 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE MC-5 40 1 630 094 1630 SENSOR,PHOTO 1 -BPH025T ,-BPH025R 750MC-210-401 40 2 630 094 1647 BRACKET 1 750MC-210-402 40 3 630 098 3258 BEARING,R…
MODEL TIM-X100F/R
0302-002
84
ヘッド部 R HEAD SECTION R

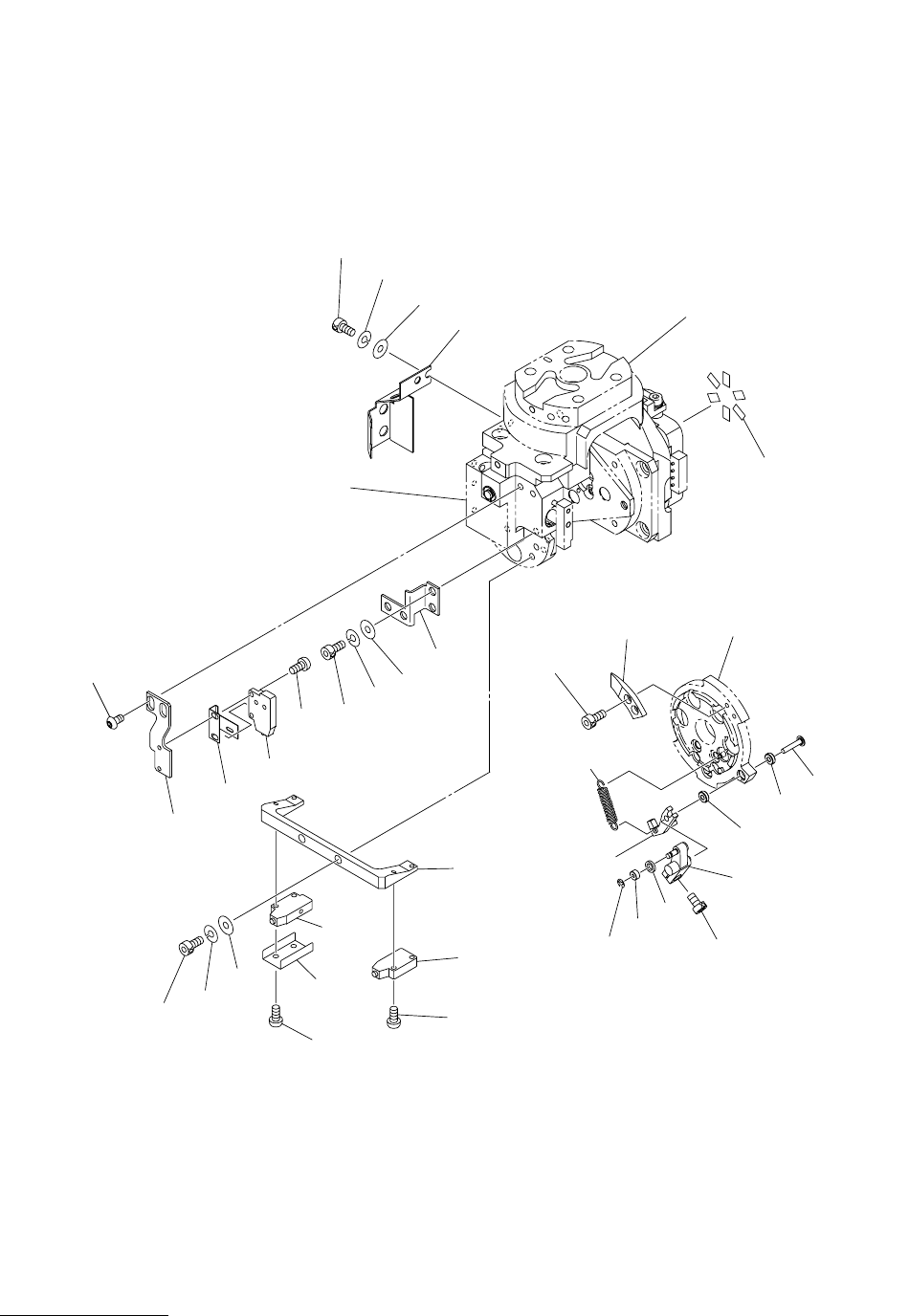

Fig. MC-5 過剰押し込みセンサ Excessively Inserted Sensor
408
443
Fig.MC-5
TIM-X100-002
415
445
430
413
436
418
429
429
401
402
401
437
440
416
412
439
437
435
414
409
405
449
404
403
403
406
410
435
437
438
See Fig.MC-2
Key No.107
407
444
See Fig.MC-2
Key No.118
See Fig.MC-2
Key No.116
417
MODEL TIM-X100F/R
0302-002
85
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MC-5
401 630 094 1630 SENSOR,PHOTO 1 -BPH025T,-BPH025R 750MC-210-401
402 630 094 1647 BRACKET 1 750MC-210-402
403 630 098 3258 BEARING,RADIAL 2 750MC-210-403
404 630 118 2094 LEVER 1 750MC-210-404
405 630 007 1740 BEARING,RADIAL 1 750MC-210-405
406 630 114 3750 PIN,HINGE 1 750MC-210-406
407 630 094 1692 CAM 1 750MC-210-407
408 630 114 3736 LEVER 1 750MC-210-408
409 630 002 3190 SPRING,TENSION 1 750MC-210-409
410 616 900 0172 RING E 1 1 750MC-210-410
412 630 071 7716 SENSOR,PELEC 1 -BPH024 750MC-210-412
413 630 099 5534 BRACKET 1 750MC-210-413
414 630 094 7472 BRACKET 1 750MC-210-414
415 630 098 7034 BRACKET 1 750MC-210-415
416 630 097 6267 BRACKET 1 750MC-210-416
417 630 105 6968 NAME PLATE,PARTS 1 750MC-210-417
418 630 109 5059 BRACKET 1 750MC-210-418
429 411 183 7104 SCR PAN 2X8 4 750MC-210-126
430 630 069 0644 BOLT 2 750MC-210-104
435 411 141 5807 WASHER F 3X6X0.5 4 750MC-210-435
436 411 141 3902 WASHER V 3X7X0.5 2 750MC-210-436
437 411 141 2806 WASHER SPR 3 6 750MC-210-437
438 630 000 7503 BOLT,HEX-SCT 2 750MC-210-438
439 630 000 7510 BOLT,HEX-SCT 2 750MC-210-439
440 630 000 7527 BOLT,HEX-SCT 2 750MC-210-440
443 630 106 5625 BOLT,HEX-SCT 1 750MC-210-443
444 630 008 3057 BOLT,HEX-SCT 2 750MC-210-444
445 411 039 2604 SCR PAN 2X6 2 750MC-210-445
449 630 114 3743 COLLAR 1 750MC-210-449
MODEL TIM-X100F/R
0112-001
86
ヘッド部 R HEAD SECTION R
Fig. MC-6 真空センサ Vacuum Pump
Fig.MC-6
TIM-X100
See Fig.C-3
Key No.202
See Fig.C-3
Key No.224
See Fig.MC-3
Key No.201
525
520
524
521
522
525
523
547
548
546
519
