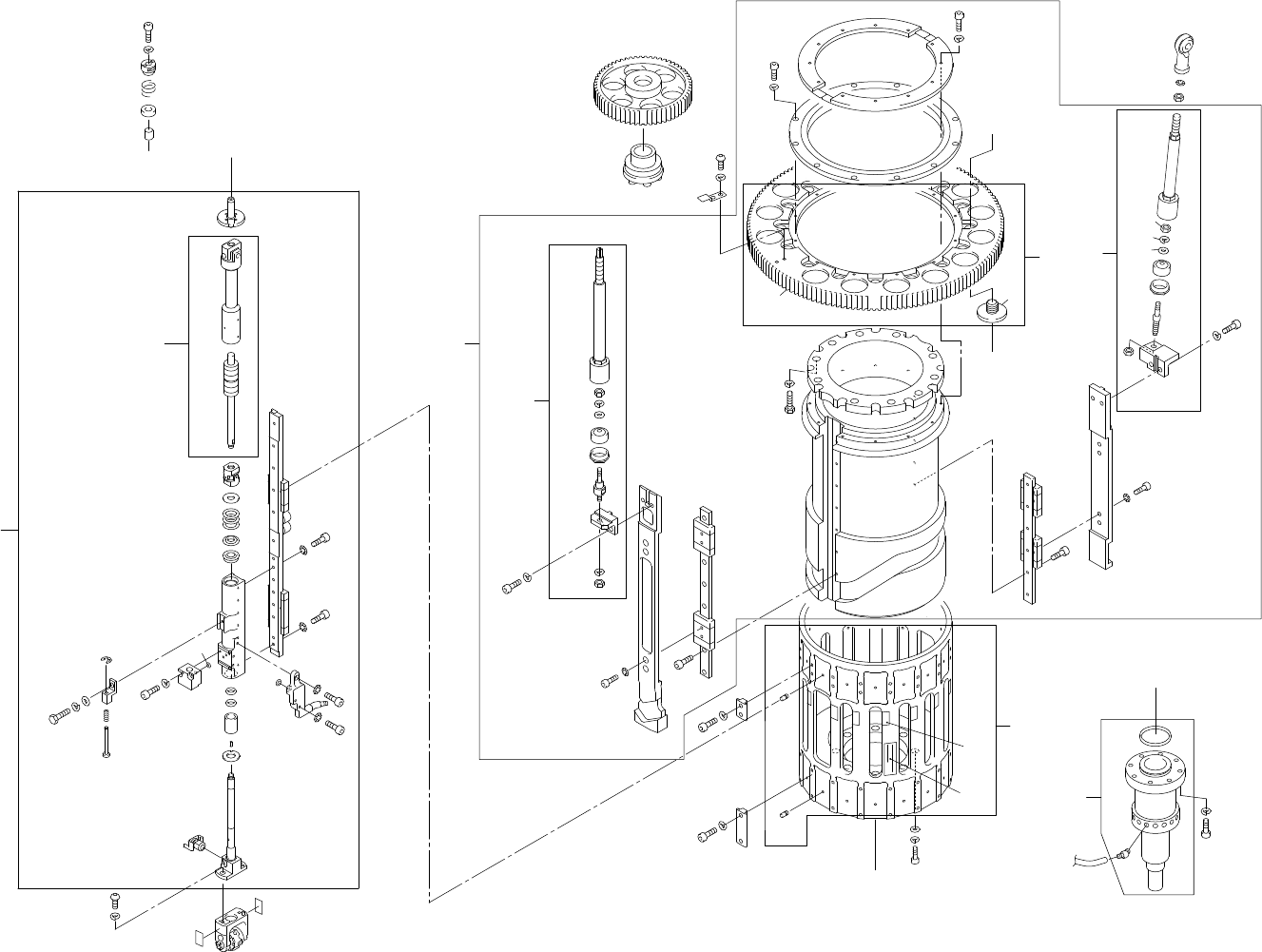

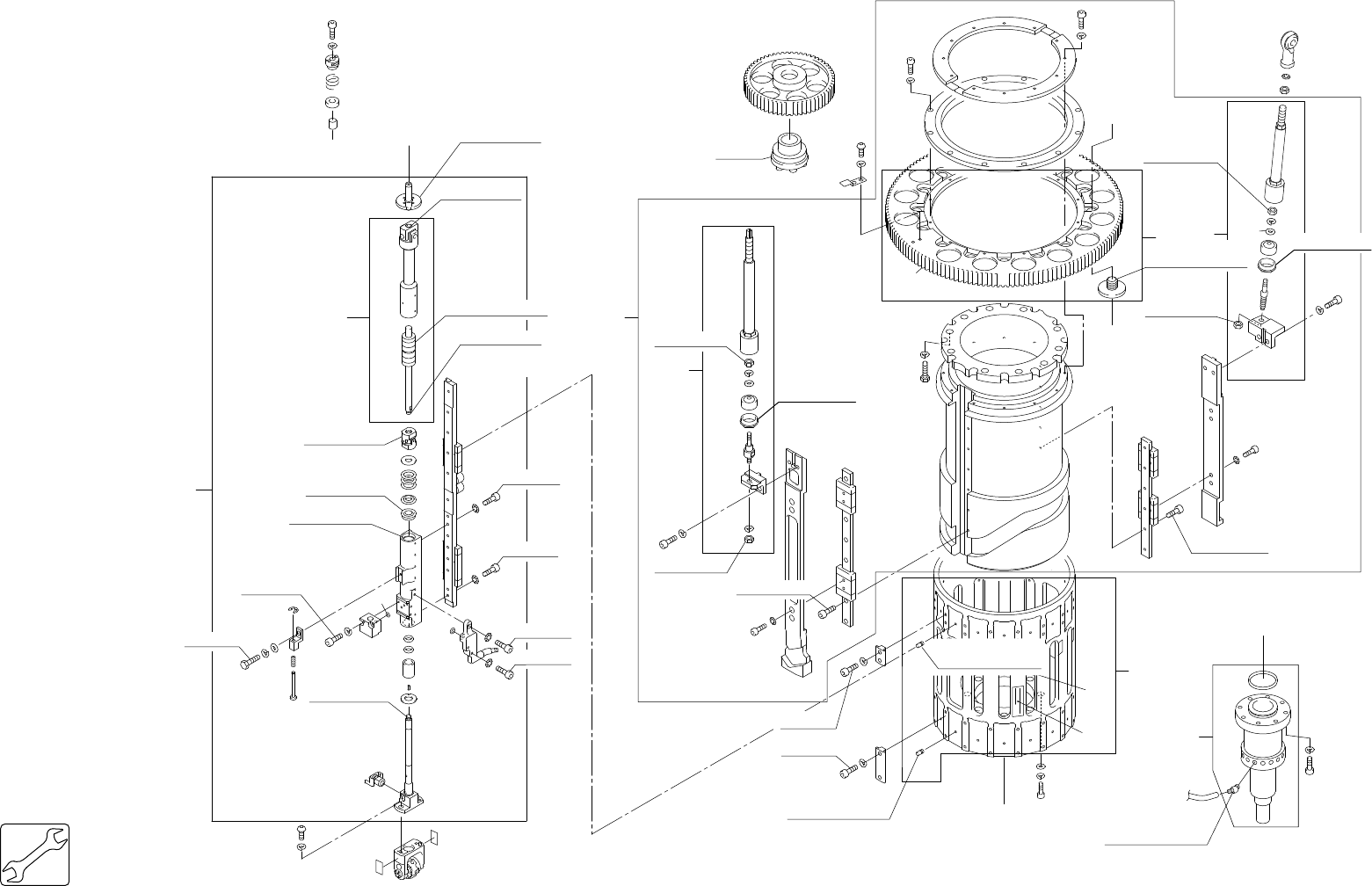

2.プレーシングヘッド(DGPH)
2.Placing head(DGPH)
2.プレーシングヘッド(DGPH)
2.Placing head(DGPH)
2 - 1
CP-743E,CP-742E PARTS LIST
2.プレーシングヘッド(DGPH)
2.Placing head(DGPH)
2.プレーシングヘッド(DGPH)
2.Placing head(DGPH)
2 - 2
N
M
O
P
A
B
C
A
F
C
N
x６
1ST
9ST
B
A
B
C
C
A
7.8N.m
2.94N.m
LOCTITE7649
LOCTITE262
2.94N.m
LOCTITE7649
LOCTITE262
1.47N.m
1.08N.m
0.98N.m
0.98N.m
LOCTITE7649
LOCTITE7649
ThreeBond1373B
LOCTITE601
LOCTITE7649
LOCTITE262
LOCTITE601(8h)
LOCTITE7471
LOCTITE262
LOCTITE262
LOCTITE222
LOCTITE222
LOCTITE262
LOCTITE262
LOCTITE7649
LOCTITE7649
0.78N.m
1.96N.m
1.47N.m
ThreeBond1373B
ThreeBond1390E
ThreeBond1373B
ThreeBond1390E
ThreeBond1373B
ThreeBond1390E
1.96N.m
LOCTITE262
LOCTITE262
ThreeBond1373B
ThreeBond1390E
ThreeBond1373B
ThreeBond1390E
1.96N.m
3.9N.m
LOCTITE222
LOCTITE222
2.94N.m
CP-743E,CP-742E PARTS LIST
2.ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ(DGPH)
2.Placing head(DGPH)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 H30763 1 BUSHING ﾌﾞｯｼｭ ETP-K-25 OT
2 DCPH0060 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
3 DCPH0070 1 BEARING, ROLLER ﾍﾞｱﾘﾝｸﾞ ﾛｰﾗ OT
4 DCPH0630 16 FILTER ﾌｨﾙﾀ OT
5 DGPH1050 16 SHAFT, SPLINE ｼｬﾌﾄ ｽﾌﾟﾗｲﾝ OT
6 DGPH1041 16 SHAFT ｼｬﾌﾄ OT
7 DGPH0050 1 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ OT
8 DGPH0060 1 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ OT
9 DCPH0201 16 SLEEVE ｽﾘｰﾌﾞ FE
10 DCPH0742 16 SHAFT ｼｬﾌﾄ FE
12 ADCPH3270 1 GEAR, HELICAL ｷﾞﾔ ﾍﾘｶﾙ OT
13 DGPH0010 1 CAM, CYLINDRICAL ｶﾑ 円筒 FE
14 DCPH0050 1 GEAR, HELICAL ｷﾞﾔ ﾍﾘｶﾙ FE
15 K1005X 16 COUPLING ｶｯﾌﾟﾘﾝｸﾞ CPU-22-A-T1 OT
16 H4118H 16
BEARING
ﾍﾞｱﾘﾝｸﾞ SST-1680 FE
17 H4581A 16 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ BK81010A FE
18 A5138A 1
O RING
Oﾘﾝｸﾞ S32 OT
19 DCPH0641 16 CLUTCH ｸﾗｯﾁ FE
20 DCPH0681 16 VALVE ﾊﾞﾙﾌﾞ OT
21 DGPH3013 16 SHAFT ｼｬﾌﾄ φ10.053 注1.Note.1 FE
22 DGPH0100 1 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ FE
23 DGPH0081 16 NIPPLE ﾆｯﾌﾟﾙ AL
24 DCPH0690 16 MANIFOLD ﾏﾆﾎｰﾙﾄﾞ PL
25 DGPH5650 16 HOSE, AIR ﾎｰｽ ｴｱｰ L=105 OT
26 DCPH0150 1 JOINT ｼﾞｮｲﾝﾄ FE
27 DGPH0030 1 SLIDER ｽﾗｲﾀﾞ FE
28 DGPH0650 16 SPRING ｽﾌﾟﾘﾝｸﾞ FE
29 DGPH1511 16 HOLDER ﾎﾙﾀﾞ OT
30 DGPH1010 16 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ OT
31 DGPH0021 1 DRUM ﾄﾞﾗﾑ AL
32 DCPH0170 1 BOLT, STUD ﾎﾞﾙﾄ ｽﾀｯﾄﾞ FE
33 DCPH0130 1 ROD, JOINT ﾛｯﾄﾞ ｼﾞｮｲﾝﾄ FE
34 DGPH0191 16 CLAMPER ｸﾗﾝﾊﾟ FE
35 DCPH0181 16 CLAMPER ｸﾗﾝﾊﾟ FE
36 DCPH0750 16 WASHER ﾜｯｼｬ FE
37 DCPH0590 16 WASHER ﾜｯｼｬ FE
38 DCPH0031 32 PIN ﾋﾟﾝ FE
39 DCPH0120 1 ROD, JOINT ﾛｯﾄﾞ ｼﾞｮｲﾝﾄ FE
40 DCPH0160 1 BOLT, STUD ﾎﾞﾙﾄ ｽﾀｯﾄﾞ FE
41 DGPH0040 1 SLIDER ｽﾗｲﾀﾞ FE
42 DCPH0140 1 JOINT ｼﾞｮｲﾝﾄ FE
43 ADGPH4303 16 ｼｬﾌﾄASSY OT
44 WPL0232 2 NUT ﾅｯﾄ FE
45 WPH0870 16 BKT BKT FE
46 DCPH0601 16 SPRING ｽﾌﾟﾘﾝｸﾞ FE
47 WPH2120 16 PIN ﾋﾟﾝ FE
48 H3181E 2
PLATE, END
ﾌﾟﾚｰﾄ ｴﾝﾄﾞ MBWT5 FE
49 WPA5160 1
PLATE, END
ﾌﾟﾚｰﾄ ｴﾝﾄﾞ OT
CP-743E,CP-742E PARTS LIST
2 - 3
2.ﾌﾟﾚｰｼﾝｸﾞﾍｯﾄﾞ(DGPH)
2.Placing head(DGPH)
