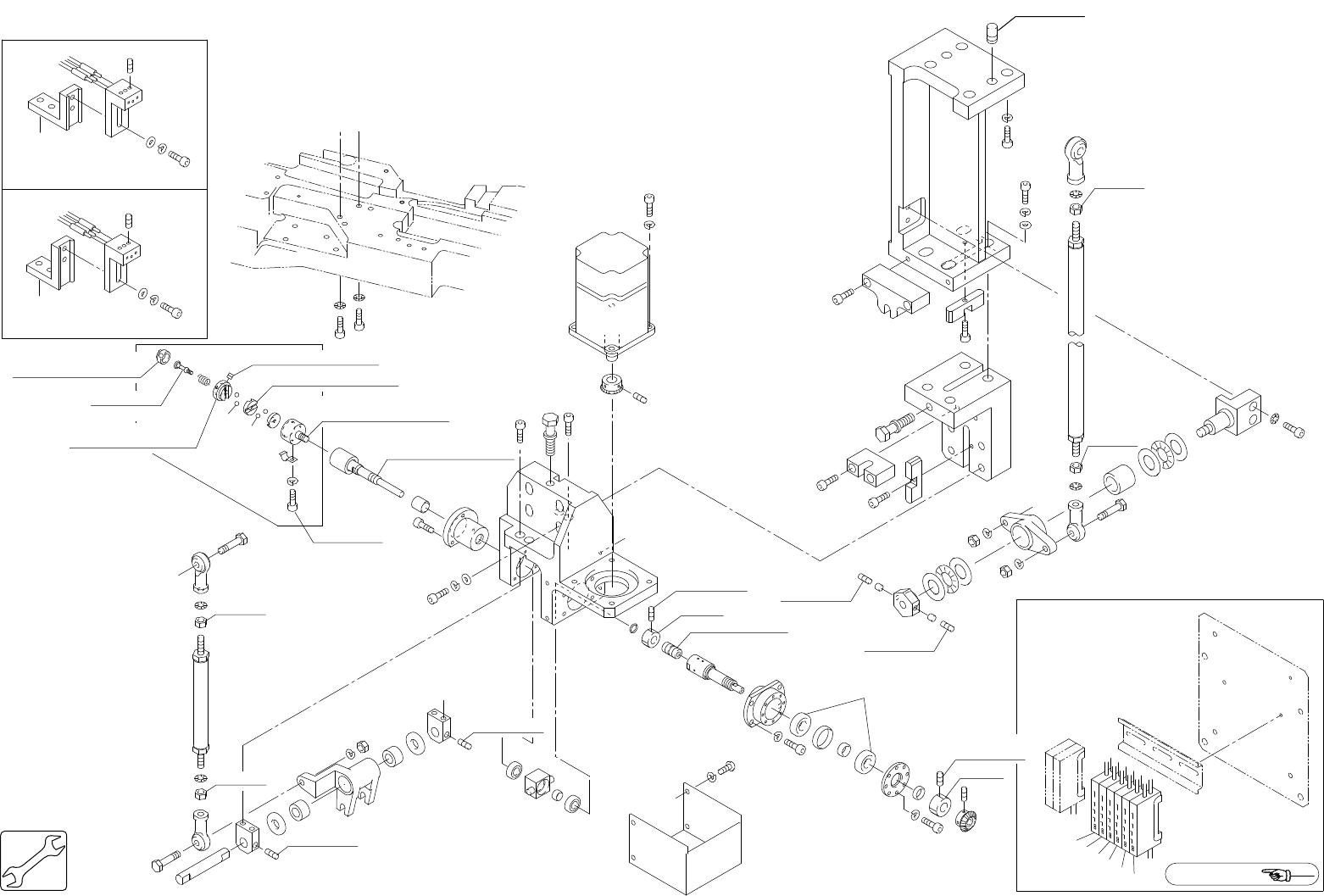

20.第14ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換)(DGPM) 20.Station 14(Nozzle change)(DGPM) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 H4224D 1 BEARING ﾍﾞｱﾘﾝｸﾞ 7900A5DBC7P5 FE 2 H4386T 2 BE…

100%1 / 237
Ref.15-1,36-1
C
B
B
C
A
X4.5
E
15ST
A
Front side
13ST
D
E
D
B
A
LOCTITE262
LOCTITE222
LOCTITE222
2.94N.m
7.84N.m
7.84N.m
8.0N.m
8.0N.m
7.84N.m
LOCTITE262
7.84N.m
1.7N.m
LOCTITE222
LOCTITE222
LOCTITE222
1.7N.m
LOCTITE222
ThreeBond1373B
ThreeBond1377B
ThreeBond1390E
ThreeBond1377B(12h)
ThreeBond1390E
ThreeBond1377B(12h)
LOCTITE262
ThreeBond1377B(12h)
ThreeBond1377B(12h)
ThreeBond1377B(12h)
ThreeBond1377B(12h)
LOCTITE262
1.92N.m
LOCTITE601
20.第14ステーション(ノズル切替)(DGPM)
20.Station 14(Nozzle change)(DGPM)
20.第14ステーション(ノズル切替)(DGPM)
20.Station 14(Nozzle change)(DGPM)
20 - 2
CP-743E,CP-742E PARTS LIST
20.第14ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換)(DGPM)
20.Station 14(Nozzle change)(DGPM)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 H4224D 1 BEARING ﾍﾞｱﾘﾝｸﾞ 7900A5DBC7P5 FE
2 H4386T 2
BEARING, NEEDLE
ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TA1010Z FE
3 N1124A 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ MR10(M10 P=0.75) FE
4 N1123A 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ MR8(M8 P=0.75) FE
5 H44512 2 BEARING, MINIATURE ﾍﾞｱﾘﾝｸﾞ ﾐﾆﾁｭｱ L-1680HH FE
6 H4391A 1
BEARING, NEEDLE
ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TA1520Z FE
7 H4296A 2
THRUST, WASHER
ｽﾗｽﾄ ﾜｯｼｬ AS1629 FE
8 H4297A 2
THRUST, WASHER
ｽﾗｽﾄ ﾜｯｼｬ AS1831 FE
9 H4300A 1
BEARING, THRUST
ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ NTB1629 FE
10 H4301A 1
BEARING, THRUST
ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ NTB1831 FE
11 GPK0880 1 NUT ﾅｯﾄ FE
12 H5066A 4
BALL, STEEL
ﾎﾞｰﾙ ｽﾁｰﾙ 4M/M OT
13 DCPA0070 2 PIN ﾋﾟﾝ FE
14 DCPM0090 1 RETAINER, BEARING 押え ﾍﾞｱﾘﾝｸﾞ FE
15 DCPM0100 1 COLLAR ｶﾗｰ FE
16 DCPM0110 1 COLLAR ｶﾗｰ FE
17 DCPM0140 1 COLLAR ｶﾗｰ FE
18 DCPM0150 1 COLLAR ｶﾗｰ FE
19 DCPM0160 1 FLANGE ﾌﾗﾝｼﾞ FE
20 DCPM0220 1 SHAFT ｼｬﾌﾄ FE
21 DCPM0230 2 COLLAR ｶﾗｰ CO
22 DCPM0320 1 COLLAR ｶﾗｰ OT
23 DCPM0330 1 BKT, ADJUSTING BKT 調整 FE
24 DCPM0340 2 SCREW, ADJUSTING ﾈｼﾞ 調整 FE
25 DCPM0350 1 BKT, ADJUSTING BKT 調整 FE
26 DCPM0360 2 KEY, POSITIONING ｷｰ 位置決め FE
27 DCPM0380 1 HOLDER, BEARING ﾎﾙﾀﾞ ﾍﾞｱﾘﾝｸﾞ FE
28 DCPM0390 2 BLOCK ﾌﾞﾛｯｸ FE
29 DCPM0400 1 BKT BKT OT
30 DCPM0420 1 SHAFT ｼｬﾌﾄ 注1.Note.1 FE
31 DCPM0470 1 SHAFT, SPLINE ｼｬﾌﾄ ｽﾌﾟﾗｲﾝ 注1.Note.1 OT
32 DCPM0052 1 BKT BKT FE
33 DGPM0010 1 BKT BKT FE
34 DCPM0210 1 FLANGE ﾌﾗﾝｼﾞ FE
35 DCPM0242 1 RING ﾘﾝｸﾞ OT
36 DCPM0311 4 SPRING, PLATE ｽﾌﾟﾘﾝｸﾞ 板 FE
37 DCPM0370 4 BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 OT
38 DCPM0291 1 HOLDER ﾎﾙﾀﾞ OT
39 DCPM0270 1 BOLT ﾎﾞﾙﾄ FE
40 DCPM0250 1 RING ﾘﾝｸﾞ FE
41 DCPM0282 1 SPRING ｽﾌﾟﾘﾝｸﾞ FE
42 DCPM0261 1 HOLDER ﾎﾙﾀﾞ FE
43 DCPM0300 1 CLUTCH ｸﾗｯﾁ FE
44 H3181H 2
PLATE, END
ﾌﾟﾚｰﾄ ｴﾝﾄﾞ PBRL6FN FE
45 H3181T 1
PLATE, END
ﾌﾟﾚｰﾄ ｴﾝﾄﾞ PBR6FN FE
46 H5120K 3 BOLT ﾎﾞﾙﾄ RMB6-26 FE
47 DCPM0460 1 ROD, JOINT ﾛｯﾄﾞ ｼﾞｮｲﾝﾄ FE
48 DGPM0020 1 ROD, JOINT ﾛｯﾄﾞ ｼﾞｮｲﾝﾄ FE
CP-743E,CP-742E PARTS LIST
20 - 3
20.第14ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換)(DGPM)
20.Station 14(Nozzle change)(DGPM)
20.第14ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換)(DGPM)
20.Station 14(Nozzle change)(DGPM)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
49 DCPM0180 1 LEVER ﾚﾊﾞｰ FE
50 DCPM0172 1 COVER ｶﾊﾞｰ FE
51 DCPM0040 1 LEVER ﾚﾊﾞｰ FE
52 DCPM0021 1 BKT BKT FE
53 DCPM0430 1 GEAR, SPIRAL BEVEL ｷﾞｱ ｽﾊﾟｲﾗﾙﾍﾞﾍﾞﾙ FE
54 DCPM0440 1 GEAR, SPIRAL BEVEL ｷﾞｱ ｽﾊﾟｲﾗﾙﾍﾞﾍﾞﾙ FE
55 N4027T 4 SCREW, HEX SOCKET SET
M4X5 KCPｱﾛｯｸ処理 FE
56 SAM6517 1 MOTOR, AC SERVO ﾓｰﾀ ACｻｰﾎﾞ OT
57 DCPM0070 2 BKT, SENSOR BKT ｾﾝｻ FE
58 DGPM0050 1 BKT BKT FE
59 S40548 6 SENSOR, FIBER ｾﾝｻ ﾌｧｲﾊﾞ HPF-S188-A ｺｰﾄﾞ2m OT
60 A1042T 6
AMPLIFIER
ｱﾝﾌﾟ HPX-T1 OT
61 GPK2220 2 BLOCK 駒 CO
62 H5275A
BOLT, HEX SOCKET
M3X8L FE
63 N4018A 2
SCREW, HEX SOCKET SET
M3X3L FE
64 N4014A
SCREW, HEX SOCKET SET
M3X4L FE
65 H5288A
BOLT, HEX SOCKET
M4X10L FE
66 H5290A
BOLT, HEX SOCKET
M4X15L FE
67 K5255T
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ   M3X6L FE
68 H5299A
BOLT, HEX SOCKET
M5X12L FE
69 H5301A
BOLT, HEX SOCKET
M5X18L FE
70 H5304A
BOLT, HEX SOCKET
M5X25L FE
71 H5305A
BOLT, HEX SOCKET
M5X30L FE
72 N4036A
SCREW, HEX SOCKET SET
M5X5L FE
73 H5326A
BOLT, HEX SOCKET
M6X25L FE
74 .
SCREW, HEX SOCKET SET
M6X6L FE
75 H5346A
BOLT, HEX SOCKET
M8X45L FE
76 H5361A
BOLT, HEX SOCKET
M10X30L FE
77 H5362A
BOLT, HEX SOCKET
M10X35L FE
78 W1020A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 2M/M FE
79 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
80 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
81 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
82 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
83 W1025A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
84 W1026A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M FE
85 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
86 W1046A WASHER, FLAT ﾜｯｼｬ 平 4W-8 FE
87 W1047A WASHER, FLAT ﾜｯｼｬ 平 4W-10 FE
88 W1013A
WASHER, CONICAL
M-6-H FE
89 N1085A
NUT, HEX
M6 P=1.0 FE
90 N1088A
NUT, HEX
M6-L FE
92 N1089Z
NUT, HEX
M8 P=1.25 FE
93 DGPM0030 1 BKT BKT FE
94 DCPM0410 1 COLLAR ｶﾗｰ PL
95 H5343A
BOLT, HEX SOCKET
M8X30L FE
96 W1014A
WASHER, CONICAL
M-8-H FE
97 ADCPM8015 1 HEAD, ASSY ﾍｯﾄﾞ ASSY . OT
CP-743E,CP-742E PARTS LIST
20 - 4
20.第14ｽﾃｰｼｮﾝ(ﾉｽﾞﾙ切換)(DGPM)
20.Station 14(Nozzle change)(DGPM)
