X 7 A B F G C E D D E A C B D A C B E F G L O C T I T E 2 6 2 2 . 9 4 N . m T h r e e B o n d 1 3 7 3 B L O C T I T E 2 2 2 L O C T I T E 2 2 2 7 . 8 4 N . m 1 2 . 7 4 N . m 1 2 . 7 4 N . m 1 2 . 7 4 N . m 1 2 . 7 4 N . …

100%1 / 237
A
139
X7
X20
X30
21
27
24
8
42
23
26
9
7
39
50
38
29
18
30
38
38
16
13
41
35
38
19
12
41
35
31
29
36
45
36
44
46
19
38
49
49
49
49
38
29
15
17
38
30
38
14
39
32
14
39
32
20
40
34
22
22
40
33
40
33
1
1
36
6
36
11
25
25
53
53
10
3
4
5
2
36
29
29
48
48
36
6
3
4
5
40
34
20
22
22
40
33
40
33
2
37
51
37
51
37
51
52
47
52
47
37
51
37
51
A
B
F
G
C
ED
43
E
D
A
C
B
D
E
A
C
B
D
A
C
B
E
F
G

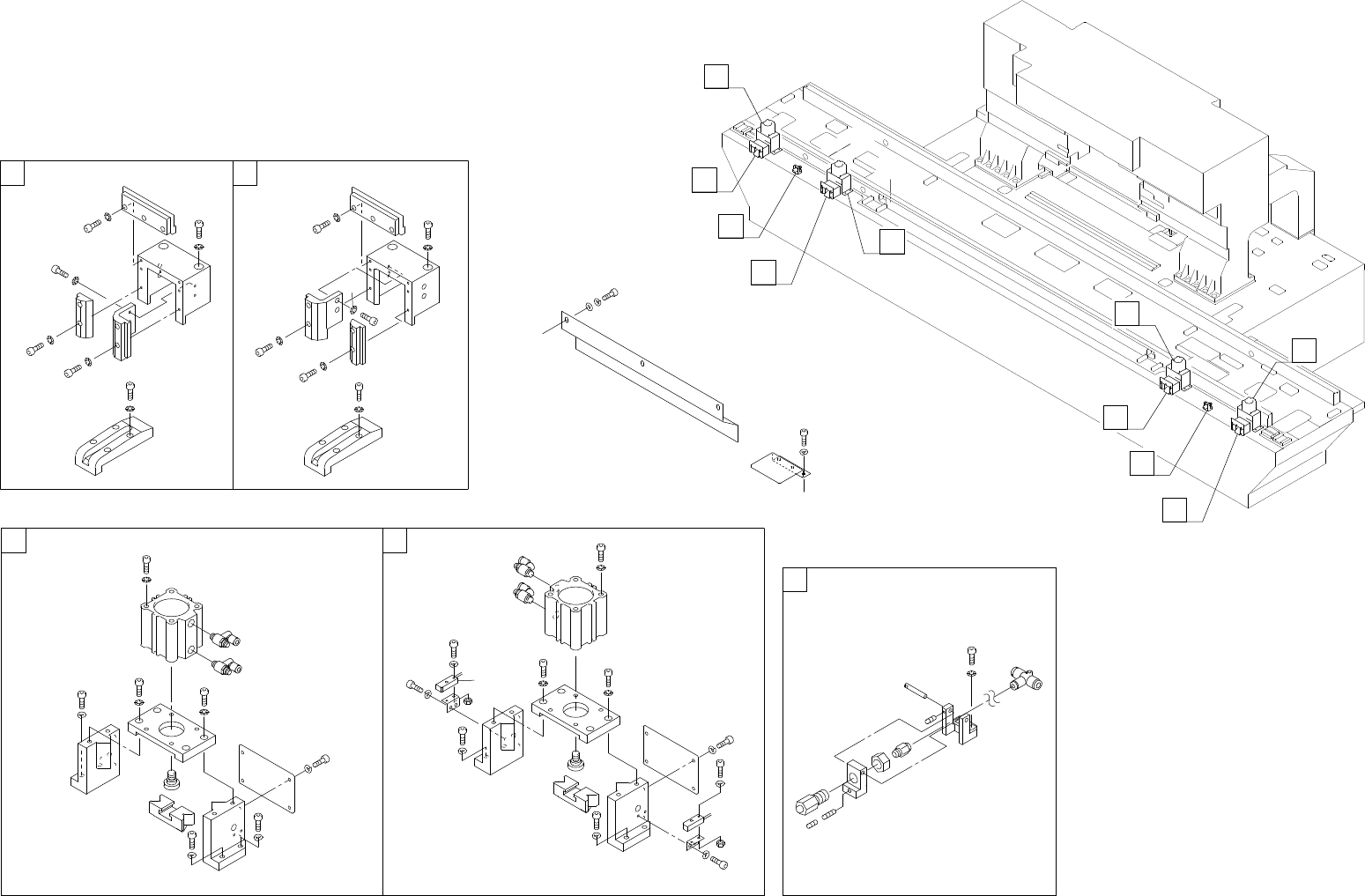

22.パレット連結部(DGSD)
22.Pallet couplings(DGSD)
22.パレット連結部(DGSD)
22.Pallet couplings(DGSD)
22 - 1
CP-743E,CP-742E PARTS LIST
X7
A
B
F
G
C
ED
D
E
A
C
B
D
A
C
B
E
F
G
LOCTITE262
2.94N.m
ThreeBond1373B
LOCTITE222
LOCTITE222
7.84N.m
12.74N.m
12.74N.m
12.74N.m
12.74N.m
12.74N.m
32.34N.m
7.84N.m
7.84N.m
32.34N.m
22.パレット連結部(DGSD)
22.Pallet couplings(DGSD)
22.パレット連結部(DGSD)
22.Pallet couplings(DGSD)
22 - 2
CP-743E,CP-742E PARTS LIST
22.ﾊﾟﾚｯﾄ連結部(DGSD)
22.Pallet couplings(DGSD)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 DGSD7010 4 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
2 DGSD7021 4 BKT BKT FE
3 DGSD7031 4 BKT BKT FE
4 DGSD7040 4 CLAMPER ｸﾗﾝﾊﾟ FE
5 DGSD7050 4 BOLT, JOINT ﾎﾞﾙﾄ ｼﾞｮｲﾝﾄ FE
6 DGSD7060 4 COVER ｶﾊﾞｰ FE
7 DCSD3080 2 BKT BKT FE
8 DCSD3090 2 BKT BKT FE
9 DCSD3100 2 PIN ﾋﾟﾝ FE
10 DCSD3170 2 BKT, SENSOR BKT ｾﾝｻ FE
11 DCSD3180 2 BKT, SENSOR BKT ｾﾝｻ FE
12 DCSD3052 2 GUIDE ｶﾞｲﾄﾞ FE
13 DCSD3062 2 GUIDE ｶﾞｲﾄﾞ FE
14 DGSD7500 4 GUIDE ｶﾞｲﾄﾞ FE
15 DCSD3260 2 GUIDE ｶﾞｲﾄﾞ PL
16 DCSD3271 2 GUIDE ｶﾞｲﾄﾞ PL
17 DCSD3280 2 GUIDE ｶﾞｲﾄﾞ PL
18 DCSD3290 2 GUIDE ｶﾞｲﾄﾞ PL
19 DCSD3240 4 GUIDE ｶﾞｲﾄﾞ PL
20 S2110K 4 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDQ2B50-15D-A93VL OT
21 H1024K 2
VALVE
ﾊﾞﾙﾌﾞ 80-IN-334-61 OT
22 K5347Y 8 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2301F-02-08S(ｼﾛ) OT
23 Y3083A 2
UNION, HALF
ﾕﾆｵﾝ ﾊｰﾌ KQ2H06-01S OT
24 H3154X 2 PLUNGER ﾌﾟﾗﾝｼﾞｬ SPJH6 OT
25 S3148N 2 SW, PHOTOELECTRIC SW 光電 HPJ-T21G-L05 OT
26 N4027A 2
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め M4X5L FE
27 N4046A 2
SCREW, HEX SOCKET SET
ﾈｼﾞ 六角穴止め M6X8L FE
28 H5286A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X6L FE
29 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L FE
30 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L FE
31 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L FE
32 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L FE
33 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L FE
34 H5332T BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X55L FE
35 H5347A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X50L FE
36 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
37 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
38 W1011A
WASHER, CONICAL
M-4-L FE
39 W1012A
WASHER, CONICAL
M-5-L FE
40 W1013A
WASHER, CONICAL
M-6-H FE
41 W1014A
WASHER, CONICAL
M-8-H FE
42 N1101A NUT, HEX ﾅｯﾄ 六角 M16 3ｼｭ FE
43 Y3071T 2
UNION
ﾕﾆｵﾝ KQ2T08-06 OT
44 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
45 DGSD0851 1 RETAINER, WIRING 押え 配線 FE
46 DGSD5580 1 RETAINER, WIRING 押え 配線 FE
47 H5276A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X10L FE
48 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L FE
CP-743E,CP-742E PARTS LIST
22 - 3
22.ﾊﾟﾚｯﾄ連結部(DGSD)
22.Pallet couplings(DGSD)
