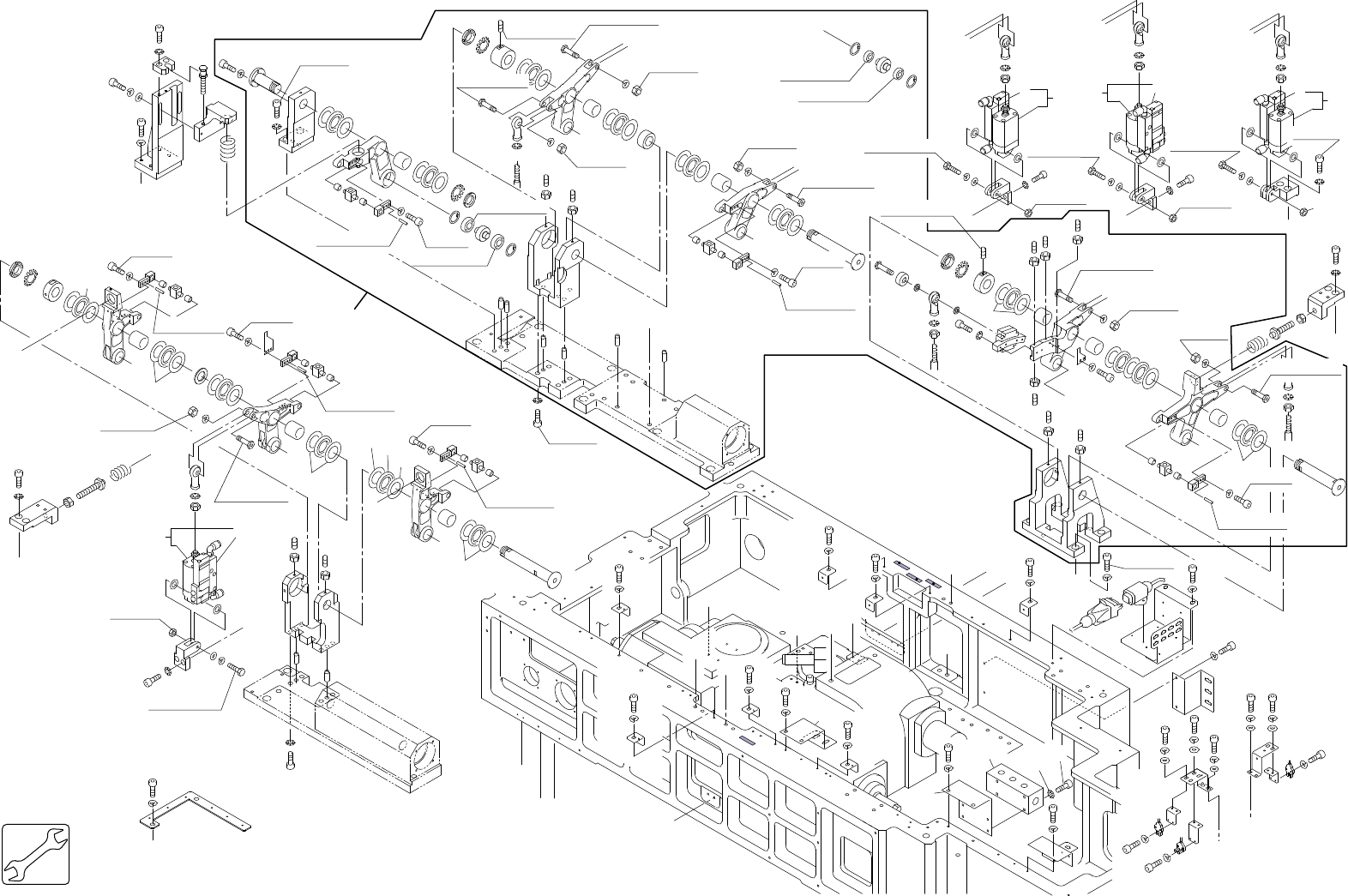

24.2.ｶﾑﾎﾞｯｸｽ(DCPA) 24.2.Cam box(DCPA) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 ADCPA8111 1 CYLINDER ｼﾘﾝﾀﾞ VALVE SOL＋CYLINDER OT 2 ADCPA8121 1 CYLINDER ｼﾘﾝﾀﾞ …
x9
Z
Z
M
F
E
Z
M
H
G
M
M
L
M
M
D
Y
J
K
K
J
Y
A
M
M
C
B
H
E
G
F
P
C
G
D
L
P
A
B
LOCTITE262
LOCTITE262
LOCTITE262
LOCTITE222
LOCTITE222
LOCTITE262
LOCTITE601
LOCTITE601
LOCTITE601
LOCTITE601
LOCTITE262
LOCTITE262
LOCTITE601
LOCTITE262
2.94N.m
12.8N.m
7.8N.m
7.8N.m
32.4N.m
12.8N.m
12.8N.m
12.8N.m
12.8N.m
32.4N.m
32.4N.m
12.8N.m
12.8N.m
12.8N.m
7.8N.m
7.8N.m
7.8N.m
LOCTITE601
7.8N.m
12.8N.m
12.8N.m
LOCTITE262
LOCTITE262
LOCTITE262
LOCTITE262
LOCTITE262
LOCTITE262
LOCTITE262
LOCTITE262
ThreeBond1373B
24.2.カムボックス(DCPA)
24.2.Cam box(DCPA)
24.2.カムボックス(DCPA)
24.2.Cam box(DCPA)
24 - 9
CP-743E,CP-742E PARTS LIST
24.2.ｶﾑﾎﾞｯｸｽ(DCPA)
24.2.Cam box(DCPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 ADCPA8111 1 CYLINDER ｼﾘﾝﾀﾞ VALVE SOL＋CYLINDER OT
2 ADCPA8121 1 CYLINDER ｼﾘﾝﾀﾞ VALVE SOL＋CYLINDER OT
3 ADCPA8131 1 CYLINDER ｼﾘﾝﾀﾞ VALVE SOL＋CYLINDER OT
4 ADCPA8141 1 CYLINDER ｼﾘﾝﾀﾞ VALVE SOL＋CYLINDER OT
5 ADCPA8150 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VALVE SOL OT
6 ADCPA8160 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VALVE SOL OT
7 ADCPA8170 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VALVE SOL OT
8 ADCPA8180 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL VALVE SOL OT
12 H5237A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X30L HRC34-44 FE
13 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
16 W1051A WASHER, FLAT ﾜｯｼｬ 平 6M/MX1.6X125(1W-6) FE
18 DCPA0800 6 HOLDER, PIN ﾎﾙﾀﾞ ﾋﾟﾝ FE
19 N4025A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X16L FE
20 N4025Z BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X20L FE
21 ADCPA8061 1 SHAFT, CAM ｼｬﾌﾄ ｶﾑ OT
34 DCPA1300 8 PIN, LOCATING ﾋﾟﾝ 位置決め FE
42 DCPA1360 1 BKT BKT FE
43 DCPA1370 1
BOLT, ADJUSTING
ﾎﾞﾙﾄ ｾﾘ FE
44 DCPA0810 6 PIN ﾋﾟﾝ FE
47 DCPA0631 3 BOLT ﾎﾞﾙﾄ FE
54 DCPA0560 3 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
55 DCPA0570 1 BKT, CYLINDER BKT ｼﾘﾝﾀﾞ FE
63 DCPA1380 8 SPACER ｽﾍﾟｰｻ OT
74 DCPA1332 4 PIN ﾋﾟﾝ FE
76 DCPA0790 1 ROLLER ﾛｰﾗ FE
77 DCPA0300 1 PLATE ﾌﾟﾚｰﾄ FE
95 DCPA0900 2 COLLAR ｶﾗｰ FE
97 DCPA0711 1 SHAFT ｼｬﾌﾄ FE
102 DCPA1210 1 BKT, SENSOR BKT ｾﾝｻ FE
103 DCPA1220 1 BKT, SENSOR BKT ｾﾝｻ FE
104 DCPA0970 2 BKT, SENSOR BKT ｾﾝｻ FE
105 DCPA0990 1 BKT, SENSOR BKT ｾﾝｻ FE
107 DCPA1011 1 DOG ﾄﾞｯｸﾞ FE
108 DCPA0911 1 BOLT ﾎﾞﾙﾄ FE
121 DCPA0920 1 BKT BKT FE
122 DCPA1340 1 BKT BKT FE
123 DCPA1350 1 BKT BKT FE
124 DCPA0650 1 BKT BKT FE
125 DCPA0670 1 BKT BKT FE
126 DCPA0680 1 BKT BKT FE
127 DCPA0110 1 LEVER ﾚﾊﾞｰ FE
128 DCPA0120 1 LEVER ﾚﾊﾞｰ FE
129 DCPA0130 1 LEVER ﾚﾊﾞｰ FE
130 DCPA0140 1 LEVER ﾚﾊﾞｰ FE
131 DCPA0090 1 LEVER ﾚﾊﾞｰ FE
132 DCPA0150 1 LEVER ﾚﾊﾞｰ AL
133 DCPA0160 1 LEVER ﾚﾊﾞｰ FE
134 DCPA0721 1 SHAFT ｼｬﾌﾄ FE
CP-743E,CP-742E PARTS LIST
24 - 10
24.2.ｶﾑﾎﾞｯｸｽ(DCPA)
24.2.Cam box(DCPA)
24.2.ｶﾑﾎﾞｯｸｽ(DCPA)
24.2.Cam box(DCPA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
135 DCPA0701 1 SHAFT ｼｬﾌﾄ FE
136 DCPA0770 1 COLLAR ｶﾗｰ FE
137 DCPA0780 1 COLLAR ｶﾗｰ FE
151 R50011 1 ROLLER ﾛｰﾗ NSAT8ZZ OT
152 N1085A 4 NUT, HEX ﾅｯﾄ 六角 M6 P=1.0 FE
154 S1039A 1
CIR-CLIP
ｻｰｸﾘｯﾌﾟ STW25 FE
155 H4402D 12
BEARING, NEEDLE
ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA79Z FE
156 S40443 4 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SX770A OT
163 W1066A 4
WASHER, A
ﾜｯｼｬ A AW04 FE
164 S31207 1 SW, PHOTOELECTRIC SW 光電 EE-SX771A OT
166 DCPA1240 6 BOLT ﾎﾞﾙﾄ RFN8-32 FE
167 R5024D 6 ROLLER, NEEDLE ﾛｰﾗ ﾆｰﾄﾞﾙ φ4X19.8 OT
169 Y3049W 4
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KJL06-01S(ｼﾛ） OT
170 S3021R 1 SPRING, SQUARE ｽﾌﾟﾘﾝｸﾞ 角 TL20X50 FE
171 S3021M 2 SPRING, SQUARE ｽﾌﾟﾘﾝｸﾞ 角 TF20X50 FE
172 S3022Y 1 SPRING, SQUARE ｽﾌﾟﾘﾝｸﾞ 角 TM22X80(ｱｶｲﾛ) FE
173 H4395A 4
BEARING, NEEDLE
ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TA2020Z FE
174 H4394T 3 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TA2025Z FE
175 H4395D 2 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TA2015Z FE
176 H4301F 16 BEARING, THRUST ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ NTB2035 FE
177 H4297F 31 BEARING, THRUST ﾍﾞｱﾘﾝｸﾞ ｽﾗｽﾄ AS2035 FE
178 H4130E 14
BEARING
ﾍﾞｱﾘﾝｸﾞ 608ZZ FE
179 S1001A 14 CIR-CLIP ｻｰｸﾘｯﾌﾟ RTW22 FE
180 S1005T 2
CIR-CLIP
ｻｰｸﾘｯﾌﾟ RTW28 FE
181 H4157R 2 BEARING ﾍﾞｱﾘﾝｸﾞ 16001 FE
184 DCPA0730 1 SHAFT ｼｬﾌﾄ FE
185 DCPA0740 1 COLLAR ｶﾗｰ FE
186 WPA5160 7 PLATE, END ﾌﾟﾚｰﾄ ｴﾝﾄﾞ FE
203 DCPA0750 1 COLLAR ｶﾗｰ FE
204 DCPA0760 1 COLLAR ｶﾗｰ FE
206 DCPA0831 1 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ OT
207 DCPA0100 1 LEVER ﾚﾊﾞｰ OT
208 DCPA1000 1 DOG ﾄﾞｯｸﾞ OT
215 GPH4491 7 ROLLER ﾛｰﾗ FE
217 DCPA0610 1 BKT BKT OT
218 DCPA0620 2 BKT BKT OT
228 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L FE
230 H5277A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X12L FE
232 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L FE
233 H5288A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X10L FE
234 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L FE
236 H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L FE
238 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
240 H5307A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X40L FE
241 H5320A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X10L FE
242 H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L FE
243 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L FE
245 H5326A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X25L FE
CP-743E,CP-742E PARTS LIST
24 - 11
24.2.ｶﾑﾎﾞｯｸｽ(DCPA)
24.2.Cam box(DCPA)
