CP-743E-03 - 第175页
29.1.真空ﾎﾟﾝﾌﾟ(DGPV) 29.1.Pump vacuum(DGPV) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 1 DCPV0110 4 RETAINER, RAIL 押え ﾚｰﾙ FE 2 DCPV0800 1 PIPE ﾊﾟｲﾌﾟ FE 3 DCPV0150 …
Ref.31-1
Ref.31-1
Ref.31-1
Ref.30-1
Ref.29-6
Ref.31-1
5
58
51
9
8
66
59
56
66
59
56
50
89
58
52
25
26
C
B
A
C
B
A
C
B
D
D
C
A
x12
9
59
54
27
16
16
59
55
69
69
64
37
35
35
77
36
2
45
3
3
59
55
70
61
52
58
65
10
7
6
52
58
65
10
7
69
60
8
56
59
66
66
59
56
69
60
49
59
54
12
29,30
59
55
60
69
47
4
24
37
19
27
18
23
22
44
61
70
43
46
11
59
54
29,30
36
36
38
54
59
1
15
13
14
59
55
59
55
1
38
15
13
14
54
59
1
76
38
38
38
38
59
54
20
48
54
59
54
59
1
38
38
A
B
D
D
C
74
75
73
36

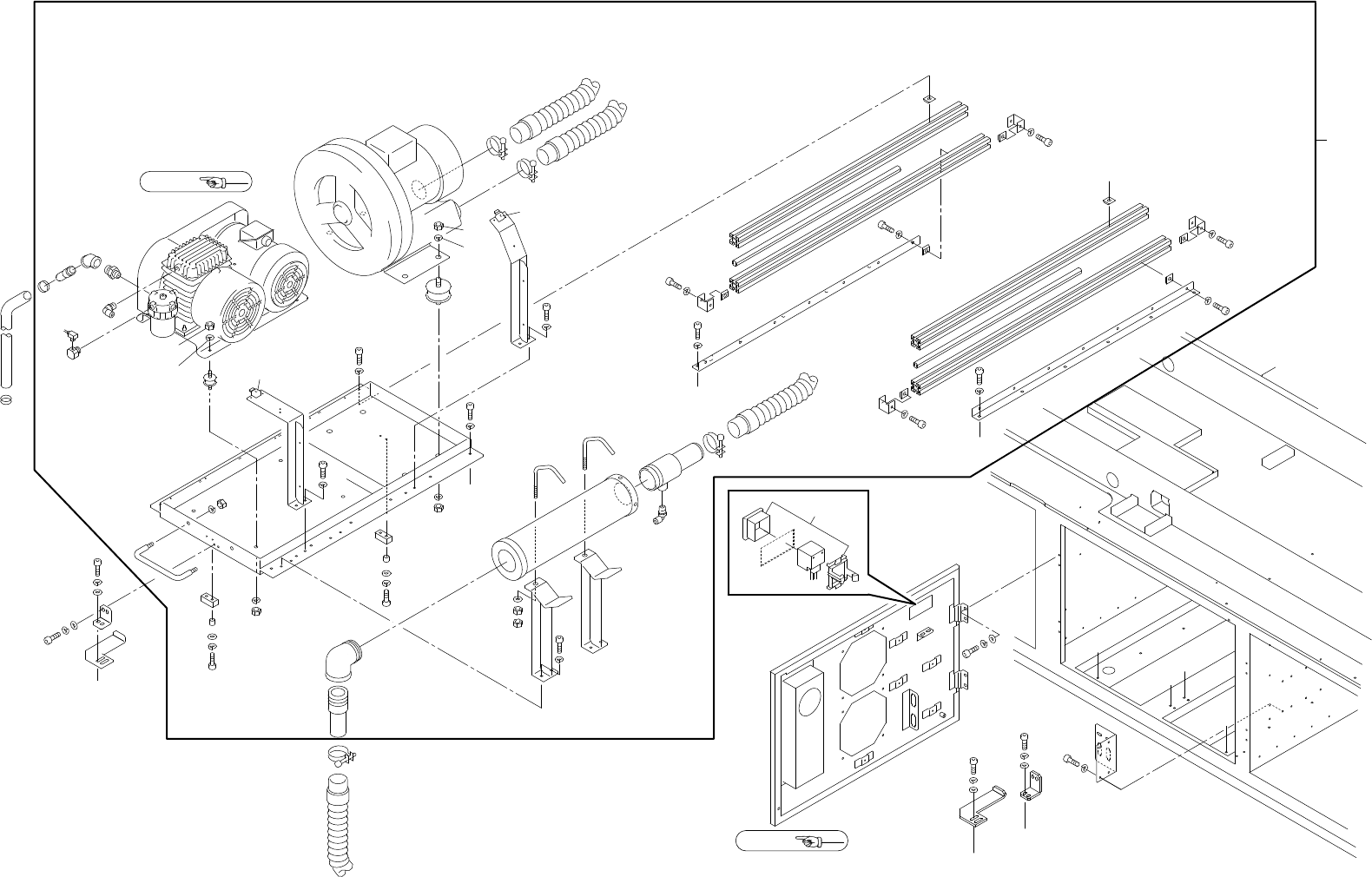

29.1.真空ポンプ(DGPV)
29.1.Pump vacuum(DGPV)
29.1.真空ポンプ(DGPV)
29.1.Pump vacuum(DGPV)
29 - 1
CP-743E,CP-742E PARTS LIST
29.1.真空ﾎﾟﾝﾌﾟ(DGPV)
29.1.Pump vacuum(DGPV)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
1 DCPV0110 4 RETAINER, RAIL 押え ﾚｰﾙ FE
2 DCPV0800 1 PIPE ﾊﾟｲﾌﾟ FE
3 DCPV0150 2 BOLT, CLAMP ﾎﾞﾙﾄ ｸﾗﾝﾌﾟ FE
4 DCPV0130 1 BUSHING ﾌﾞｯｼｭ FE
5 DCWZ0150 1 BKT BKT FE
6 DGPV0011 1 BASE, SLIDE ﾍﾞｰｽ ｽﾗｲﾄﾞ FE
7 DGPV0090 2 STOPPER ｽﾄｯﾊﾟ PL
8 DGPV0110 1 BKT, STOPPER BKT ｽﾄｯﾊﾟ FE
9 DGPV0120 1 BKT, STOPPER BKT ｽﾄｯﾊﾟ FE
10 DGPV0100 4 COLLAR ｶﾗｰ FE
11 DGPV0030 1 BKT BKT FE
12 DGPV0040 1 BKT BKT FE
13 DCPV0070 2 FRAME ﾌﾚｰﾑ OT
14 DCPV0080 2 FRAME ﾌﾚｰﾑ OT
15 DCPV0090 2 SLIDER ｽﾗｲﾀﾞ OT
16 DGPV0051 2 BKT BKT FE
18 GXZ4050 1 VACUUM PORT 吸気ﾎﾟｰﾄ FE
19 DCPV0120 1 HOSE ﾎｰｽ OT
20 DGPV0020 1 BKT BKT FE
22 N2137A 1 NIPPLE ﾆｯﾌﾟﾙ RNI 1/2X3/8 OT
23 A4049X 1 ELBOW ｴﾙﾎﾞ BL45 1/2 OT
24 S31495 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ AP-41 OT
25 A1038Z 2 AMPLIFIER ｱﾝﾌﾟ AP-40ZA OT
26 H1314H 2 PANEL ﾊﾟﾈﾙ OP-32908 OT
27 H1153A 2
BAND, HOSE
ﾊﾞﾝﾄﾞ ﾎｰｽ 27ﾜｲﾔ OT
29 . 2 TERMINAL BLOCK 端子台 DSG1.5/2 WITHBB TN00831 OT
30 H2002Z 2 FUSE ﾋｭｰｽﾞ MTG4A50084C OT
35 DCPV0790 1 HOSE ﾎｰｽ OT
36 H11543 4 BAND, HOSE ﾊﾞﾝﾄﾞ ﾎｰｽ ﾊｲｸﾞﾘｯﾌﾟ 2Xﾟ45ｶﾗ60 OT
37 Y3079X 2 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L08-03S OT
38 N1012G 34 NUT ﾅｯﾄ B32-60 FE
43 S52121 1 BLOWER, VORTEX 送風器 渦流 2BH1-500-7AH21-G51 OT
44 H5447Z 1 PUMP, VACUUM ﾎﾟﾝﾌﾟ ﾊﾞｷｭｰﾑ KHA750A-306-G1 OT
45 T1063F 1 DUCT ﾀﾞｸﾄ NPS50 OT
46 DCPV0020 4 DAMPER ﾀﾞﾝﾊﾟ OT
47 DCPV0030 4 DAMPER ﾀﾞﾝﾊﾟ OT
48 DCPV0100 1 BKT BKT FE
49 T5003X 1 HANDLE 取手 THA-240(No.4) OT
50 ADGAB8042 1 COVER ｶﾊﾞｰ OT
51 H5297A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X8L FE
52 H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X15L FE
54 H5320A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X10L FE
55 H5321A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X12L FE
56 H5322A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X15L FE
58 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
59 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M FE
60 W1025A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M FE
61 W1027A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 12M/M FE
CP-743E,CP-742E PARTS LIST
29 - 2
29.1.真空ﾎﾟﾝﾌﾟ(DGPV)
29.1.Pump vacuum(DGPV)
29.1.真空ﾎﾟﾝﾌﾟ(DGPV)
29.1.Pump vacuum(DGPV)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
64 W1052A WASHER, FLAT ﾜｯｼｬ 平 8M/MX1.6X17(1W-8) FE
65 W1050A WASHER, FLAT ﾜｯｼｬ 平 1W-5 FE
66 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6 FE
69 N1089A
NUT, HEX
ﾅｯﾄ 六角
M8 P=1.25 FE
70 N1096A
NUT, HEX
ﾅｯﾄ 六角
M12 P=1.75 FE
73 A4085M 1 ERBOW, MALE AND FEMALE ｴﾙﾎﾞ ｵｽﾒｽ SL-2 OT
74 DCPV0810 1 PIPE ﾊﾟｲﾌﾟ FE
75 DCPV0820 1 HOSE ﾎｰｽ OT
76 ADGPV8183 1 BASE, SLIDE ﾍﾞｰｽ ｽﾗｲﾄﾞ OT
77 DCPV0770 1 HOSE ﾎｰｽ OT
CP-743E,CP-742E PARTS LIST
29 - 3
29.1.真空ﾎﾟﾝﾌﾟ(DGPV)
29.1.Pump vacuum(DGPV)
