30.本体(DGAB)
30.Body(DGAB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
55 H5170R SCREW, HEX C/R COUNTERSUNK 小ﾈｼﾞ 十穴皿 M5X20L FE
56 N1082A
NUT, HEX
ﾅｯﾄ 六角
M5 P=0.8 FE
57 W1050A WASHER, FLAT ﾜｯｼｬ 平 5M/MX1.0X10(1W-5) FE
58 DCAB0370 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=900) FE
59 DCAB0380 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=912) FE
60 BB43880 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=920) FE
61 BB42950 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=980) FE
62 GGA8030 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=950) FE
63 GGA8040 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=965) FE
64 GGA8060 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=930,935) FE
65 DCAB0390 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=912) FE
66 DCAB0400 16 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ (H=930) FE
67 DCAB0410 16 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ (H=962,965) FE
68 DCAB0420 16 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ (H=980) FE
69 GXA2071 16 SHEET, LEVELING ｼｰﾄ ﾚﾍﾞﾘﾝｸﾞ (H=920) FE
70 WAB0601 16 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ (H=935) FE
71 GXA2121 16 BLOCK, LEVELING ﾌﾞﾛｯｸ ﾚﾍﾞﾘﾝｸﾞ (H=950) FE
72 WAB0721 16 PAD, ANTI-VIBRATION ﾊﾟｯﾄ 防振 OT
73 DGAB5017 1 BODY 本体 FE
74 DGAB5020 1 COVER ｶﾊﾞｰ FE
75 DGAB5030 1 COVER ｶﾊﾞｰ FE
76 DGAB6010 1 SEAL ｼｰﾙ OT
77 DGAB6020 1 SEAL ｼｰﾙ OT
78 ADGAB8510 1 COVER ｶﾊﾞｰ OT
79 ADGAB8520 1 COVER ｶﾊﾞｰ OT
85 H1137E 1 BAND, TIE ﾊﾞﾝﾄﾞ 結束 AB-14N OT
86 H1137D 1 BAND, TIE ﾊﾞﾝﾄﾞ 結束 AB-4N OT
87 K5210A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X10L FE
89 DCAB0330 1 BKT, JOINT BKT ｼﾞｮｲﾝﾄ option FE
90 DCAB0340 1 BKT, JOINT BKT ｼﾞｮｲﾝﾄ option FE
91 DGAB0520 1 BKT, JOINT BKT ｼﾞｮｲﾝﾄ option FE
92 DGAB0540 1 BKT, JOINT BKT ｼﾞｮｲﾝﾄ option FE
93 H5391A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M12X40L FE
94 H5392A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M12X45L FE
95 H5395A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M12X55L FE
96 W1027A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 12M/M FE
97 W1048A WASHER, FLAT ﾜｯｼｬ 平 4W-12 FE
98 H5365A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M10X50L FE
99 W1026A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M FE
100 W1047A WASHER, FLAT ﾜｯｼｬ 平 4W-10 . FE
CP-743E,CP-742E PARTS LIST
30 - 3
30.本体(DGAB)
30.Body(DGAB)
X30
10
9
11
75
57
39
75
57
39
75
57
39
94
93
92
12
76
10
9
11
12
74
56
38
74
56
38
7
16
17
2
4
4
5
74
56
38
74
56
38
6
8
8
73
55
37
65
47
29
65
47
29
68
50
32
69
51
33
18
66
48
30
67
49
31
73
55
37
Reverse Panel Flow
逆流れ
Standard Panel Flow
正流れ
90
85
80
91
86
81
87
82
77
89
84
79
95
95

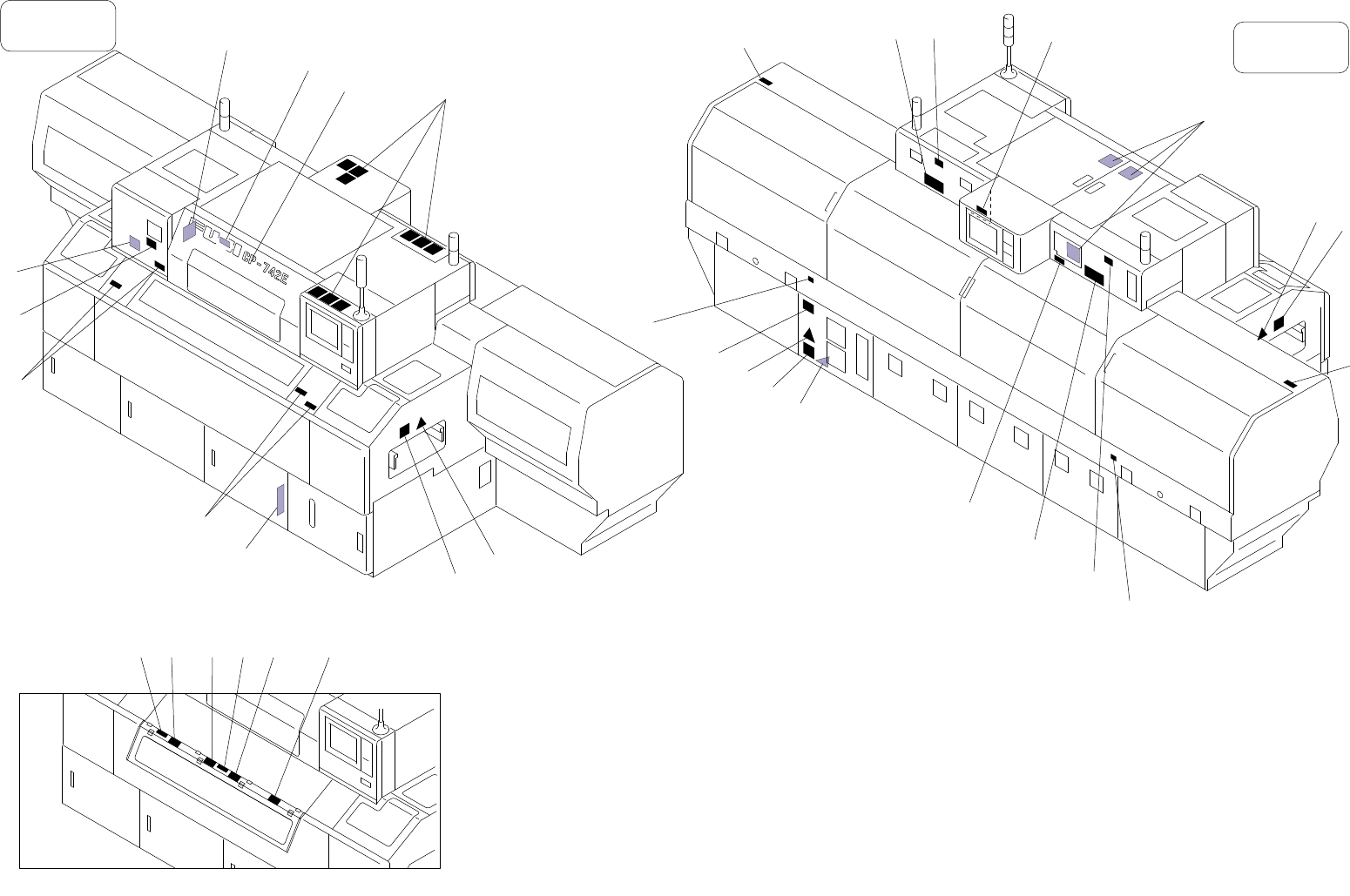

31.1.銘板、シール(DGWM)
31.1.Nameplate,Seal(DGWM)
31.1.銘板、シール(DGWM)
31.1.Nameplate,Seal(DGWM)
31 - 1
後側
Rear Side
前側
Front Side
CP-743E,CP-742E PARTS LIST
31.1.銘板,ｼｰﾙ(DGWM)
31.1.Nameplate,Seal(DGWM)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
2 DCWM0020 1 NAMEPLATE, PRESSURE 銘板 圧力 PL
4 DCWM0050 2 SEAL ｼｰﾙ PL
5 DCWM0060 1 NAMEPLATE, CAUTION 銘板 注意 PL
6 DCWM0071 1 SEAL, BAR CODE ｼｰﾙﾊﾞｰｺｰﾄﾞ PL
7 DCWM0081 1 SEAL, BAR CODE ｼｰﾙﾊﾞｰｺｰﾄﾞ PL
8 DCWM0091 2 SEAL, BAR CODE ｼｰﾙﾊﾞｰｺｰﾄﾞ (Option) PL
9 KPA0900 2 NAMEPLATE, CAUTION 銘板 注意 PL
10 KPA0920 2 NAMEPLATE, CAUTION 銘板 注意 PL
11 KPA0890 2 SEAL ｼｰﾙ PL
12 YWM0090 4 NAMEPLATE, CAUTION 銘板 注意 PL
16 EEBR2850 1 SEAL ｼｰﾙ PL
17 EEBR1870 1 SEAL ｼｰﾙ PL
18 EEBR1892 1 SEAL ｼｰﾙ PL
29 DGWM0340 1 NAMEPLATE, SOL 銘板 SOL Japanese PL
30 DGWM0350 1 NAMEPLATE, SOL 銘板 SOL Japanese PL
31 DCWM0300 1 NAMEPLATE, SOL 銘板 SOL Japanese PL
32 DCWM0310 1 NAMEPLATE 銘板 Japanese PL
33 DCWM0322 1 NAMEPLATE, SOL 銘板 SOL Japanese PL
37 DCWM0360 1 NAMEPLATE, SOL 銘板 SOL Japanese PL
38 IPK5480 1 SEAL ｼｰﾙ Japanese PL
39 IPK5580 1 SEAL ｼｰﾙ Japanese PL
47 DGWM0540 1 NAMEPLATE, SOL 銘板 SOL English PL
48 DGWM0550 1 NAMEPLATE, SOL 銘板 SOL English PL
49 DCWM0500 1 NAMEPLATE, SOL 銘板 SOL English PL
50 DCWM0510 1 NAMEPLATE 銘板 English PL
51 DCWM0522 1 NAMEPLATE, SOL 銘板 SOL English PL
55 DCWM0560 1 NAMEPLATE, SOL 銘板 SOL English PL
56 IPK5490 1 SEAL ｼｰﾙ English PL
57 IPK5590 1 SEAL ｼｰﾙ English PL
65 DGWM0740 1 NAMEPLATE, SOL 銘板 SOL French PL
66 DGWM0750 1 NAMEPLATE, SOL 銘板 SOL French PL
67 DCWM0700 1 NAMEPLATE, SOL 銘板 SOL French PL
68 DCWM0710 1 NAMEPLATE 銘板 French PL
69 DCWM0722 1 NAMEPLATE, SOL 銘板 SOL French PL
73 DCWM0760 1 NAMEPLATE, SOL 銘板 SOL French PL
74 IPK5500 1 SEAL ｼｰﾙ French PL
75 IPK5600 1 SEAL ｼｰﾙ French PL
92 EEBR2840 3 SEAL ｼｰﾙ PL
93 EEBR2820 3 SEAL ｼｰﾙ PL
CP-743E,CP-742E PARTS LIST
31 - 2
31.1.銘板,ｼｰﾙ(DGWM)
31.1.Nameplate,Seal(DGWM)
