8.1.基板ｸﾗﾝﾌﾟ(DGSS) 8.1.Board clamping unit(DGSS) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質 No. Drg.No. & Code No. QTY Description Rating Remarks Materials 147 H5263E BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE 148 H5302A BOLT, HEX SO…

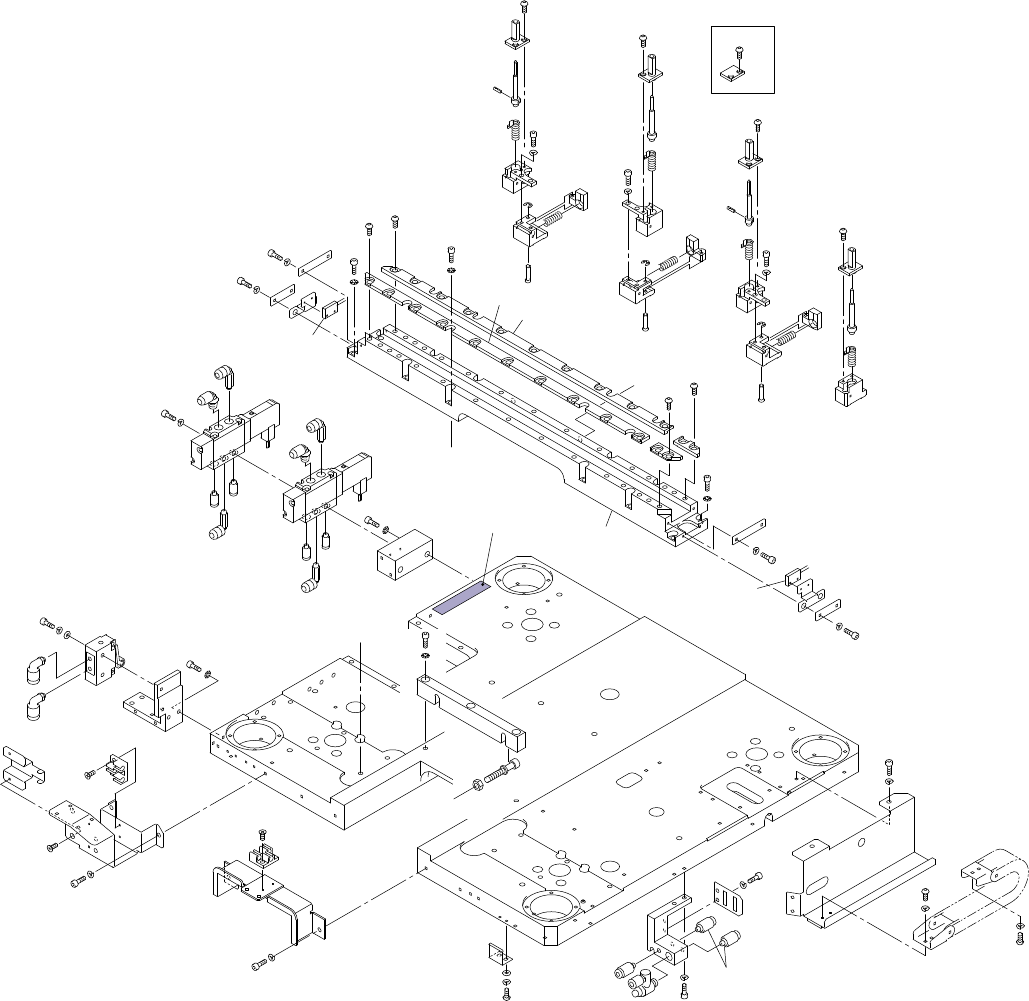

8.1.基板ｸﾗﾝﾌﾟ(DGSS)
8.1.Board clamping unit(DGSS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
73 CSSS0141 4 WASHER ﾜｯｼｬ PL
84 CSSS0130 1 WASHER ﾜｯｼｬ OT
85 CSSS0150 1 WASHER ﾜｯｼｬ FE
86 CSSS0170 41 COLLAR ｶﾗｰ FE
87 CSSS0191 1 WASHER ﾜｯｼｬ PL
88 CSSS0200 1 WASHER ﾜｯｼｬ OT
89 CSSS0210 1 WASHER ﾜｯｼｬ FE
90 CSSS0321 2 SEAL ｼｰﾙ PL
91 CSSS1330 46 RETAINER 押え FE
92 YSS0540 2 WASHER ﾜｯｼｬ FE
93 YSS0570 2 SPRING ｽﾌﾟﾘﾝｸﾞ FE
94 WSS5300 2 STOPPER ｽﾄｯﾊﾟ FE
95 A40682 6
ELBOW
ｴﾙﾎﾞ M-5HL-6 OT
96 K5077A 4
CONNECTOR
ｺﾈｸﾀ M-5J OT
97 K5345D 1
CONTROLLER, SPEED
ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ AS2211F-01-06S(ｼﾛ) OT
104 H4401A 1
BEARING, NEEDLE
ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA69Z FE
106 S1023A 6
CIR-CLIP
ｻｰｸﾘｯﾌﾟ ST-EW-5 FE
107 S4045C 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SX870A OT
108 S4032T 2
SENSOR
ｾﾝｻ UM-T50TV HELPS OT
109 N1067A 1 NUT, U ﾅｯﾄ U M6X1.0 FE
110 Y3079N 2
UNION, ELBOW
ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2L06-M5 OT
111 Y3086Y 4
UNION, HALF
ﾕﾆｵﾝ ﾊｰﾌ KQ2S06-M5 OT
113 H3119A 2 PLUG ﾌﾟﾗｸﾞ PF OT
114 S2147A 2
JOINT
ｼﾞｮｲﾝﾄ BF6 OT
115 H4402D 2
BEARING, NEEDLE
ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TLA79Z FE
116 H4386A 2 BEARING, NEEDLE ﾍﾞｱﾘﾝｸﾞ ﾆｰﾄﾞﾙ TA0815Z FE
117 H4128R 2 BEARING ﾍﾞｱﾘﾝｸﾞ L-1790 FE
118 W10012 2 WASHER ﾜｯｼｬ 70W-1000 FE
119 W1001Y 1 WASHER ﾜｯｼｬ 70W-0815 FE
120 R2074C 1 RING, LOCKING ﾘﾝｸﾞ 締結 UM-6X18 OT
121 H1167H 2
PACKING
ﾊﾟｯｷﾝ MY-24 OT
122 H1162T 2
PACKING
ﾊﾟｯｷﾝ MY-7 OT
130 H5268T BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M2.5X6L FE
131 K5256A
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M3X8L FE
132 K5255T
SCREW, HEX SOCKET BUTTON
小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M3X6L FE
133 H5274A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X6L FE
134 H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X8L FE
135 H5276A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X10L FE
136 H5277A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X12L FE
137 H5281A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X25L FE
138 K5359H
SCREW, HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿
M4X10L FE
140 H5286A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X6L FE
141 H5287A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X8L FE
142 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X10L FE
143 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X12L FE
144 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X15L FE
145 H5304A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X25L FE
146 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X10L FE
CP-743E,CP-742E PARTS LIST
8 - 4
8.1.基板ｸﾗﾝﾌﾟ(DGSS)
8.1.Board clamping unit(DGSS)
8.1.基板ｸﾗﾝﾌﾟ(DGSS)
8.1.Board clamping unit(DGSS)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 材質
No. Drg.No. & Code No. QTY Description Rating Remarks Materials
147 H5263E BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L FE
148 H5302A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X20L FE
149 W1020H
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 2.5M/M FE
150 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M FE
151 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M FE
152 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M FE
153 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4 FE
154 W1041A WASHER, FLAT ﾜｯｼｬ 平 4M/MX0.8X9(1W-4) FE
155 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5 FE
156 W1010A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-3-L FE
157 W1011A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-4-L FE
158 W1012A
WASHER, CONICAL
ﾜｯｼｬ 皿
M-5-L FE
159 N1080A
NUT, HEX
ﾅｯﾄ 六角
M4 P=0.7 FE
160 N1081T
NUT, HEX
ﾅｯﾄ 六角
M4 3ｼｭ FE
161 N1086A
NUT, HEX
ﾅｯﾄ 六角
M6 P=1.0 3ｼｭ FE
162 DGSS0270 2 LOCATR 当金 FE
163 DGSS0520 1 BKT BKT FE
164 DCSS0420 1 GUIDE ｶﾞｲﾄﾞ FE
165 DCSS0430 1 GUIDE ｶﾞｲﾄﾞ FE
166 H5264T BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M2X4L FE
167 H5293A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X25L . FE
CP-743E,CP-742E PARTS LIST
8 - 5
8.1.基板ｸﾗﾝﾌﾟ(DGSS)
8.1.Board clamping unit(DGSS)
逆流れ
Reverse panel flow
x6
81
81
81
46
44
47
45
47
45
46
44
46
44
78
65
83
83
133
69
69
67
67
123
123
123
72
72
145
145
139
139
65
65
65
105
105
45,47
82
82
133
133
133
133
155
66
66
66
66
66
68
68
68
70
70
70
81
81
123
123
145
139
145
139
71
71
71
65
65
44,46
83
83
133
133
133
69
66
81
67
123
72
145
139
145
139
65
65
105
45,47
82
82
133
98
100
99
99
101
101
11
148
154
155
156
143
99
101
149
147
151
152
150
101
98
99
100
144
134
17
79
144
136
80
144
136
142
147
160
147
77
76
3
3
141
141
141
141
141
141
141
141
74
74
75
75
80
136
144
108
108
18
79
144
136
112
138
145
145
157
19
145
138
138
145
36
35
111
159
145
103
111
132
132
161
39
49
145
138
102
130
41
145
138
131
102
130
51
110
110
145
158
140
124
38
146
138
A
A
B
B
153
133
153
16
16
96
114
121
18
122
116
98
136
136
82
97
97
136
136
135
134
133
82
132
120
96
97
97
120
111
112
120
73
21
20
20
21
21
20
21
19
6
7
120
109
107
120
3
27
128
118
逆流れ (Option)
Right-to-Left Board Flow
1
2
4
160
147
8.2.基板クランプ(DGSS)
8.2.Board clampig unit(DGSS)
8.2.基板クランプ(DGSS)
8.2.Board clampig unit(DGSS)
8 - 6
CP-743E,CP-742E PARTS LIST
