GL-541E P ARTS LIST ver08 3 . Y 軸テーブル( コンベア) ( B T P T ) 3 . Y a x i s t a b l e ( C o n v e y o r ) ( B T P T ) 3 - 1 3 . Y 軸テーブル( コンベア) ( B T P T ) 3 . Y a x i s t a b l e ( C o n v e y o r ) ( B T P T ) ﾀ ﾃ x 1 7 3 . …

100%1 / 90
2.Y軸テーブル(2)(BTPT)
2.Y axis table(2)(BTPT)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
83 NPT0791 6 CLAMPER ｸﾗﾝﾊﾟ
84 A5103A 6 O RING O ﾘﾝｸﾞ P22
85 A5095A 3 O RING O ﾘﾝｸﾞ P12
86 H1190A 3 PAD ﾊﾟｯﾄ VP-20RS
87 H1189A 3 PAD ﾊﾟｯﾄ VP-15RS
88 JQC1090 6 CLAMPER ｸﾗﾝﾊﾟ
89 H20135 1 PIN ﾋﾟﾝ IY-G004
90 S1031A 2 CIR-CLIP ｻｰｸﾘｯﾌﾟ STW-10
91 A4045Z 1 ELBOW ｴﾙﾎﾞ PL8-01
93 A4034A 1 ELBOW ｴﾙﾎﾞ GPL-63
94 PPT1490 194 PLUG ﾌﾟﾗｸﾞ
95 BTPT1101 4 PIN ﾋﾟﾝ
96 BTPT1130 4 SPRING ｽﾌﾟﾘﾝｸﾞ
97 H5341A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X20L
98 W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M
99 W1052A WASHER, FLAT ﾜｯｼｬ 平 8M/MX1.6X17(1W-8)
101 BTPT2520 1 BKT BKT
102 K4164M 1 FLEXIBLE TRACK ｹｰﾌﾞﾙﾍﾞｱ HPU204-R38 16Link
103 K1049A 1set FIXTURE 金具 HPU2-FA0
104 K1052A 1set FIXTURE 金具 HPU2-MA0
105 BTPT1081 1 BKT BKT
106 Y3085T 1 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQ2H08-02S
107 BTPT1160 1 BKT BKT
108 W1014A WASHER, CONICAL ﾜｯｼｬ 皿 M-8-H
109 S2125Z 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CQ2D40-40DCM
100 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L
110 K1050A 1 FIXTURE 金具 HPU2-FAOS ･
GL-541E PARTS LIST ver08
2 - 4
2.Y軸テーブル(2)(BTPT)
2.Y axis table(2)(BTPT)
GL-541E PARTS LIST ver08

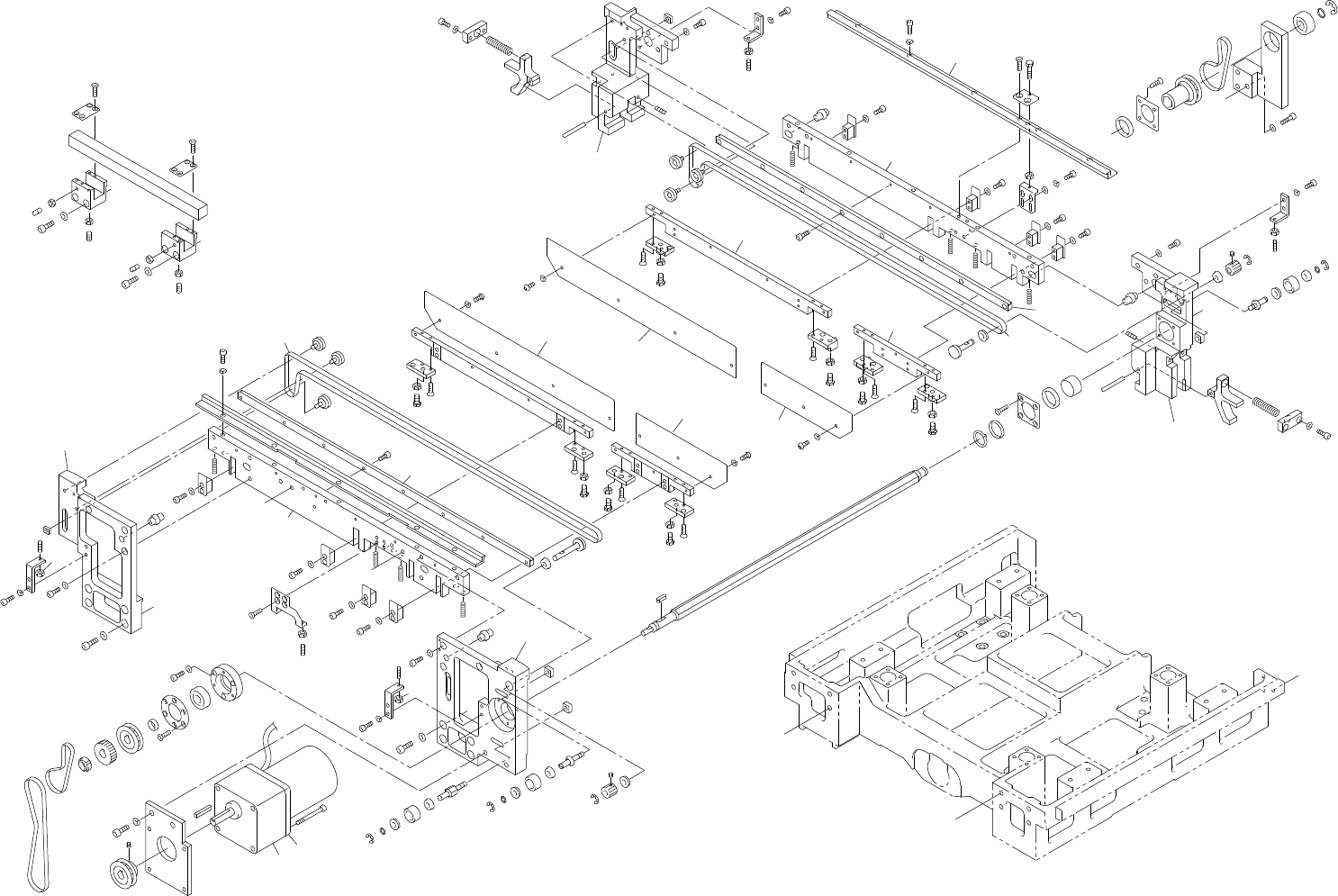

3.Y軸テーブル(コンベア)(BTPT)
3.Y axis table(Conveyor)(BTPT)
3 - 1
3.Y軸テーブル(コンベア)(BTPT)
3.Y axis table(Conveyor)(BTPT)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x6
111
99
94
44
15
78
77
98
74
55
70
52
70
53
74
55
70
52
70
30
74
42
70
86
54
54
13
56
96
106
87
17
101
109
90
100
107
67
66
80
46
47
50
84
58
71
57
82
104
107
100
92
16
101
87
83
104
37
76
14
56
12
65
87
101
17
109
90
106
96
19
113
110
68
40
40
32
81
18
25
103
31
85
108
89
10
36
27
26
9
108
89
35
24
85
103
31
38
70
51
28
A
D
E
C
91
105
22
64
20
75
2
95
65
106
96
40
40
32
5
114
85
103
31
81
108
89
10
9
89
108
7
8
6
85
103
31
72
49
43
84
69
48
75
1
98
54
56
20
64
22
105
91
29
70
52
70
55
74
70
42
74
86
87
101
23
109
90
106
96
4
39
70
68
18
76
37
104
83
33
112
109
90
101
3
56
87
101
23
109
90
113
110
11
93
88
34
69
43
84
45
66
21
106
97
71
59
73
F
B
B
85
60
85
60
61
102
79
63
102
79
106
97
102
79
102
79
62
106
97
A
C
F
D
E
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
3.Y軸テーブル(コンベア)(BTPT)
3.Y axis table(Conveyor)(BTPT)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 BTPT0015 1 GUIDE ｶﾞｲﾄﾞ
2 BTPT0025 1 GUIDE ｶﾞｲﾄﾞ
3 BTPT0031 1 PLATE ﾌﾟﾚｰﾄ
4 BTPT0043 1 PLATE ﾌﾟﾚｰﾄ
5 BTPT0053 1 PLATE ﾌﾟﾚｰﾄ
6 BTPT1180 1 PLATE ﾌﾟﾚｰﾄ
7 BTPT0072 1 PLATE ﾌﾟﾚｰﾄ
8 BTPT0082 1 PLATE ﾌﾟﾚｰﾄ
9 BTPT0090 2 PLATE ﾌﾟﾚｰﾄ
10 BTPT0101 2 PLATE ﾌﾟﾚｰﾄ
11 BTPT0112 1 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ
12 BTPT0125 1 BKT BKT
13 BTPT2034 1 BKT BKT
14 BTPT0142 1 PLATE ﾌﾟﾚｰﾄ
15 BTPT0150 1 PLATE ﾌﾟﾚｰﾄ
16 BTPT0162 1 BKT BKT
17 BTPT0170 2 BKT BKT
18 BTPT0940 2 HOLDER, BELT 受け ﾍﾞﾙﾄ
19 BTPT0203 1 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ
20 BTPT0211 2 LEVER, CLAMP ﾚﾊﾞｰ ｸﾗﾝﾌﾟ
21 BTPT0220 1 BKT BKT
22 BTPT0231 2 HOLDER, SPRING 受け ｽﾌﾟﾘﾝｸﾞ
23 BTPT0240 2 BKT BKT
24 BTPT0251 1 PLATE ﾌﾟﾚｰﾄ
25 BTPT0261 1 PLATE ﾌﾟﾚｰﾄ
26 BTPT0271 1 PLATE ﾌﾟﾚｰﾄ
27 BTPT0281 1 PLATE ﾌﾟﾚｰﾄ
28 BTPT2020 1 SHAFT, DRIVE ｼｬﾌﾄ 駆動
29 BTPT0300 1 PIN, ROLLER ﾋﾟﾝ ﾛｰﾗ
30 BTPT0310 1 PIN, ROLLER ﾋﾟﾝ ﾛｰﾗ
31 BTPT0350 8 STOPPER ｽﾄｯﾊﾟ
32 BTPT0950 2 PULLEY ﾌﾟｰﾘ
33 BTPT0370 1 STOPPER ｽﾄｯﾊﾟ
34 BTPT0710 1 PLATE ﾌﾟﾚｰﾄ
35 BTPT0723 1 PLATE ﾌﾟﾚｰﾄ
36 BTPT0733 1 PLATE ﾌﾟﾚｰﾄ
37 BTPT0890 8 PLATE ﾌﾟﾚｰﾄ
GL-541E PARTS LIST ver08
3 - 2
3.Y軸テーブル(コンベア)(BTPT)
3.Y axis table(Conveyor)(BTPT)
