1.Y軸テーブル(1)(BTPT)
1.Y axis table(1)(BTPT)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 BTPT0420 2 BKT, STOPPER BKT ｽﾄｯﾊﾟ
2 PPT0660 2 DAMPER ﾀﾞﾝﾊﾟ
3 NPA0190 2 COLLAR ｶﾗｰ
4 BTPT0501 1 SLIDE, Y-AXIS ｽﾗｲﾄﾞ Y軸 
5 BTPT1011 1 BALL SCREW ﾎﾞｰﾙﾈｼﾞ
6 BTPT1021 2 GUIDE, RAIL ｶﾞｲﾄﾞ ﾚｰﾙ
7 BTPT0532 1 BKT, MOTOR BKT ﾓｰﾀ
8 BTPT0540 1 COVER ｶﾊﾞｰ
9 BTPT0550 1 BKT, SW BKT SW
10 BTPT0560 1 BKT, SW BKT SW
11 BTPT0571 1 DOG ﾄﾞｯｸﾞ
12 BTPT0580 2 DOG ﾄﾞｯｸﾞ
13 BTPT0880 1 RETAINER, BARING 押え
14 BTPT0931 1 BKT BKT
15 PPT1371 1 COLLAR ｶﾗｰ
16 N1025T 1 NUT, LOCK ﾅｯﾄ ﾛｯｸ ZM017
17 BTPT1031 1 COUPLING ｶｯﾌﾟﾘﾝｸﾞ
18 SAM1501 1 MOTOR ﾓｰﾀ
19 H4157T 1 BEARING ﾍﾞｱﾘﾝｸﾞ 17TAC47B-DBC8PN7A Set parts
20 H4181A 1 BEARING ﾍﾞｱﾘﾝｸﾞ 6003ZZ
21 PPT1060 1 COLLAR ｶﾗｰ
22 S1036A 1 CIR-CLIP ｻｰｸﾘｯﾌﾟ STW17
23 GPT0791 26 RETAINER 押え
24 S4040W 1 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX305-W2A
25 K5256H SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M3X12L
26 K52565 SCREW, HEX SOCKET BUTTON 小ﾈｼﾞ六角穴ﾎﾞﾀﾝ M4X6L
27 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
28 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
29 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
30 H5301A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X18L
31 H5311A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X60L
32 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
33 H5324A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X20L
34 H5343A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X30L
35 H5349T BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X65L
36 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
37 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
GL-541E PARTS LIST ver08
1 - 2
1.Y軸テーブル(1)(BTPT)
1.Y axis table(1)(BTPT)
1.Y軸テーブル(1)(BTPT)
1.Y axis table(1)(BTPT)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
38 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
39 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
40 W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L
42 W1014A WASHER, CONICAL ﾜｯｼｬ 皿 M-8-H
43 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
44 PPT1040 1 HOLDER ﾎﾙﾀﾞ
45 K1068A 1 COVER, SCREW ｶﾊﾞｰ ｽｸﾘｭｳ 030-0500-050
46 BTPT0991 1 HOLDER ﾎﾙﾀﾞ
47 K5357T
SCREW,HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M3X8L
48 K5361T
SCREW,HEX SOCKET COUNTERSUNK
小ﾈｼﾞ 六角穴皿 M5X12L
49 K2009H 26 CAP ｷｬｯﾌﾟ C06
50 S4040Y 2 SENSOR, PHOTO ｾﾝｻ ﾌｫﾄ EE-SPX405-W2A ･
GL-541E PARTS LIST ver08
1 - 3
1.Y軸テーブル(1)(BTPT)
1.Y axis table(1)(BTPT)
GL-541E PARTS LIST ver08

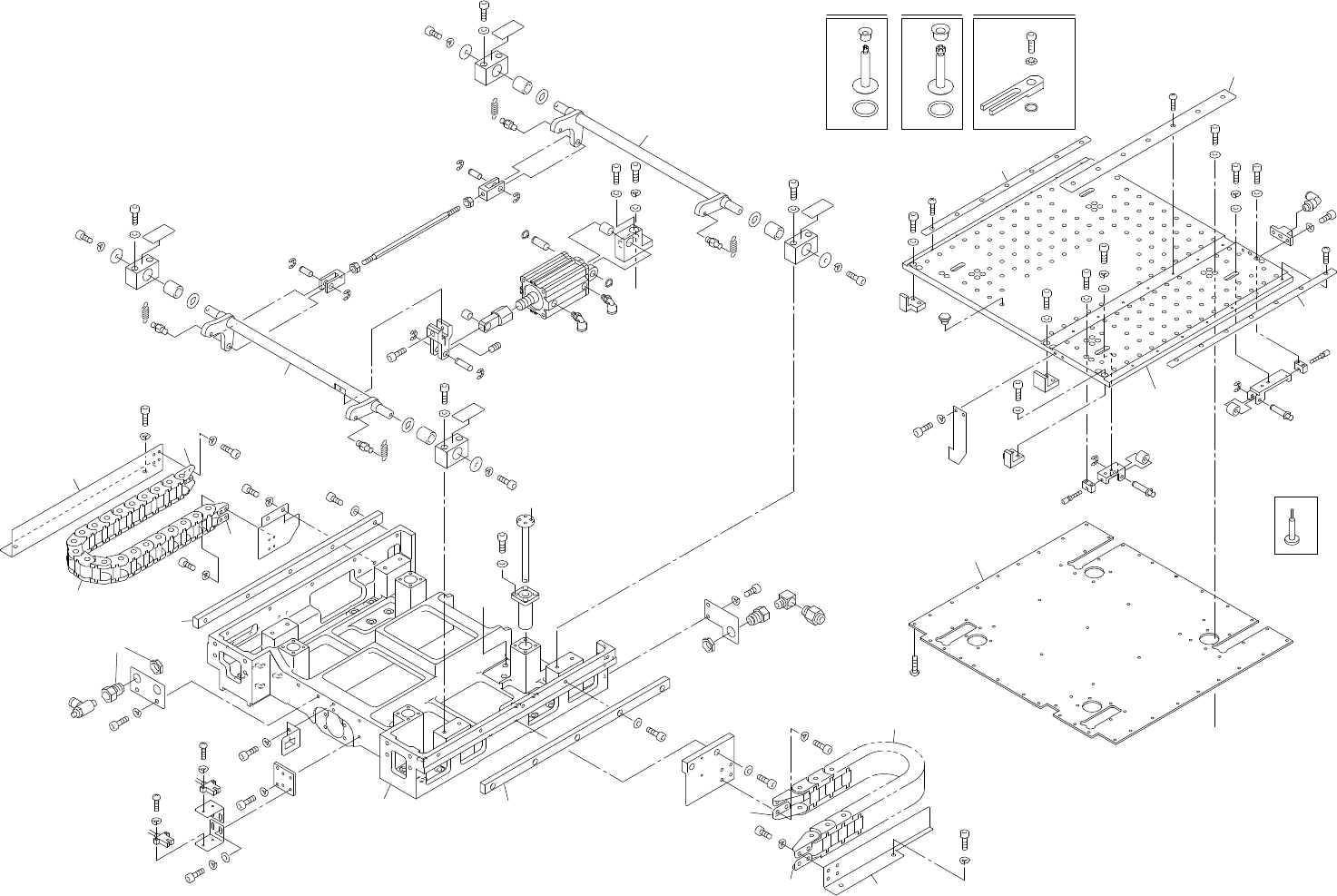

2.Y軸テーブル(2)(BTPT)
2.Y axis table(2)(BTPT)
2 - 1
2.Y軸テーブル(2)(BTPT)
2.Y axis table(2)(BTPT)
ﾀﾃx173.205
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x7.3
A
B
A
38
46
30
66
73
63
70
39
8
96
95
36
51
12
67
9
51
97
98
99
95
96
38
46
108
97
30
8
39
70
63
107
47
25
25
90
89
90
109
13
48
78
51
41
59
51
35
30
66
73
39
70
63
8
46
38
96
95
37
51
10
12
51
74
11
95
96
38
46
30
66
73
8
39
70
63
64
70
61
71
7
50
52
93
106
63
70
32
73
64
2
1
4
55
69
59
69
60
71
69
59
3
3
44
68
58
44
68
58
63
70
33
54
53
2
73
66
B
84
81
87
86
82
84
79
80
83
85
64
73
57
28
57
29
61
72
61
72
91
61
69
57
28
61
69
71
61
69
71
61
72
64
73
31
18
20
21
75
49
26
88
49
21
19
18
17
75
22
24
64
73
60
69
5
27
94
23
56
34
ANPT-1171AJQC-1141AJQC-1151
42
70
63
43
110
69
59
77
63
70
15
100
68
105
73
63
70
63
103
63
70
104
102
101
63
70
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
