2-72
2
Board Explorer
8. File table restoration tool
8.1 About the file table check function of each application
“Check FTABLE” of each application is executed as shown in the following table.

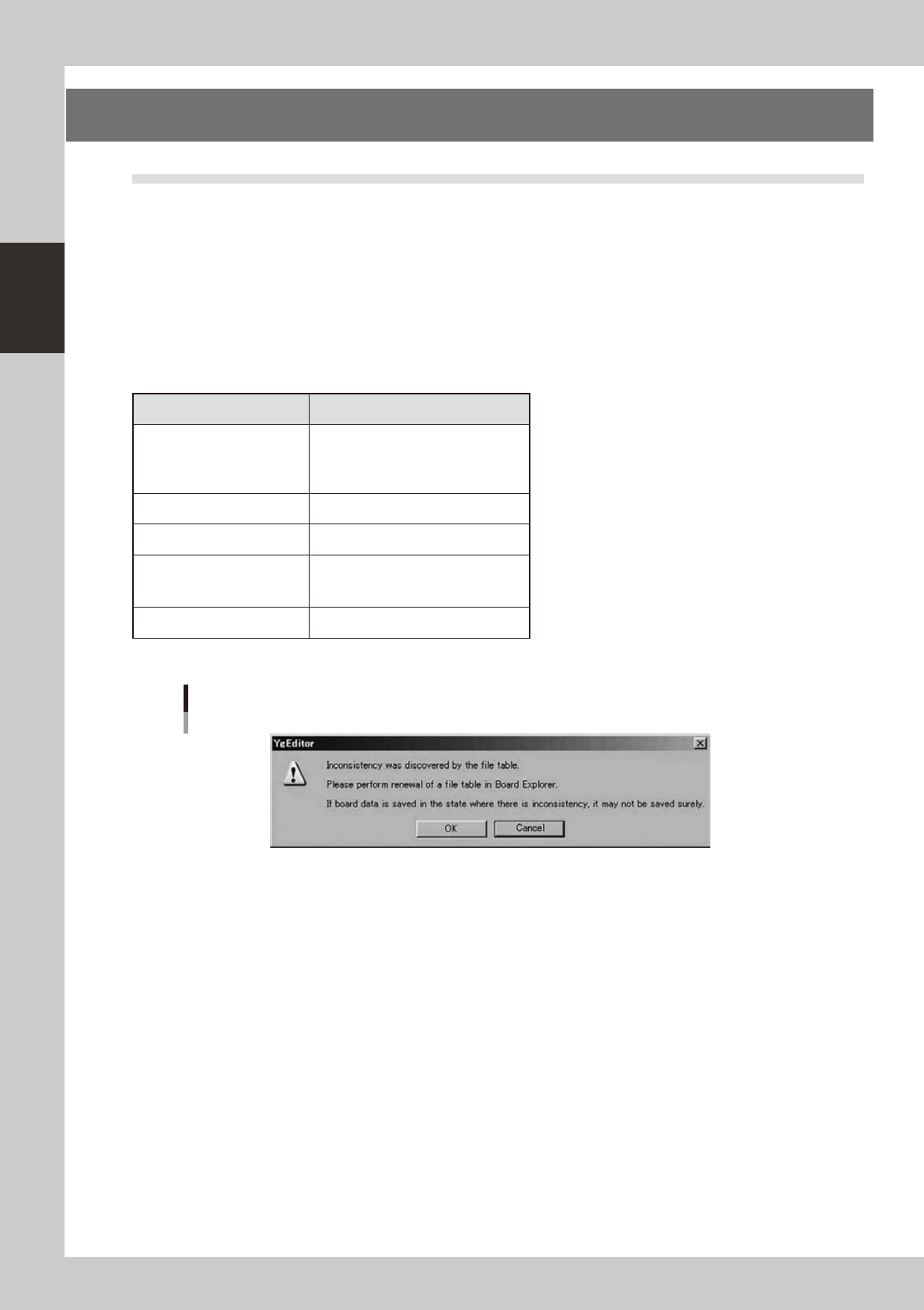

When the error is found, the following alert message is displayed.
Do when warning is displayed?
Processing is interrupted pressing the cancellation button. (The purpose is not to preserve the Board data in the state that
there is contradiction in FTABLE. )(When the OK button is pressed, processing does the compulsion continuation. )
The BoardExplorer is started, “Update FTABLE” is executed, and the contradiction of the file table is corrected. When
“Update FTABLE” ends, the processing that interrupts by each application is executed again.
n
It is a file table check table in each application.
Checked timing
BoardEditor
Save Board Data
Save Board Data As
Save Individual Data
Save Individual Data As
ASCII Data Conversion After pressing “Execute” button
Line remote control After it selects it “Board data comm”
FedderViewer
Save Board
Save As Board
Save All Board
Optimizer After pressing “Execute” button
Alert message
64261-S0-00
2-73
2
Board Explorer
8.2 Update of File Table
1.Itright-clicksinthelineofthetreebytheBoardExplorer,and“UpdateFTABLE”isselected.
Update FTABLE
64262-S0-00
2.Whentheerrorisfound,thefollowingwarningdialogmessageisdisplayed.
Warning dialog message
64263-S0-00
When the OK button is pressed, the automatic restoration processing is executed.
When the cancellation button is pressed, “Update FTABLE” is interrupted.
It is also possible that the line folder in preparation for the emergency backs up. It backs up afterwards
because an automatic restoration can be canceled by pressing the cancellation button.
“Update FTABLE” is executed again after the backup is completed, and it restores it.
3. When the error is found, it is corrected automatically when it is an error that can be restored automatically.
2-74
2
Board Explorer

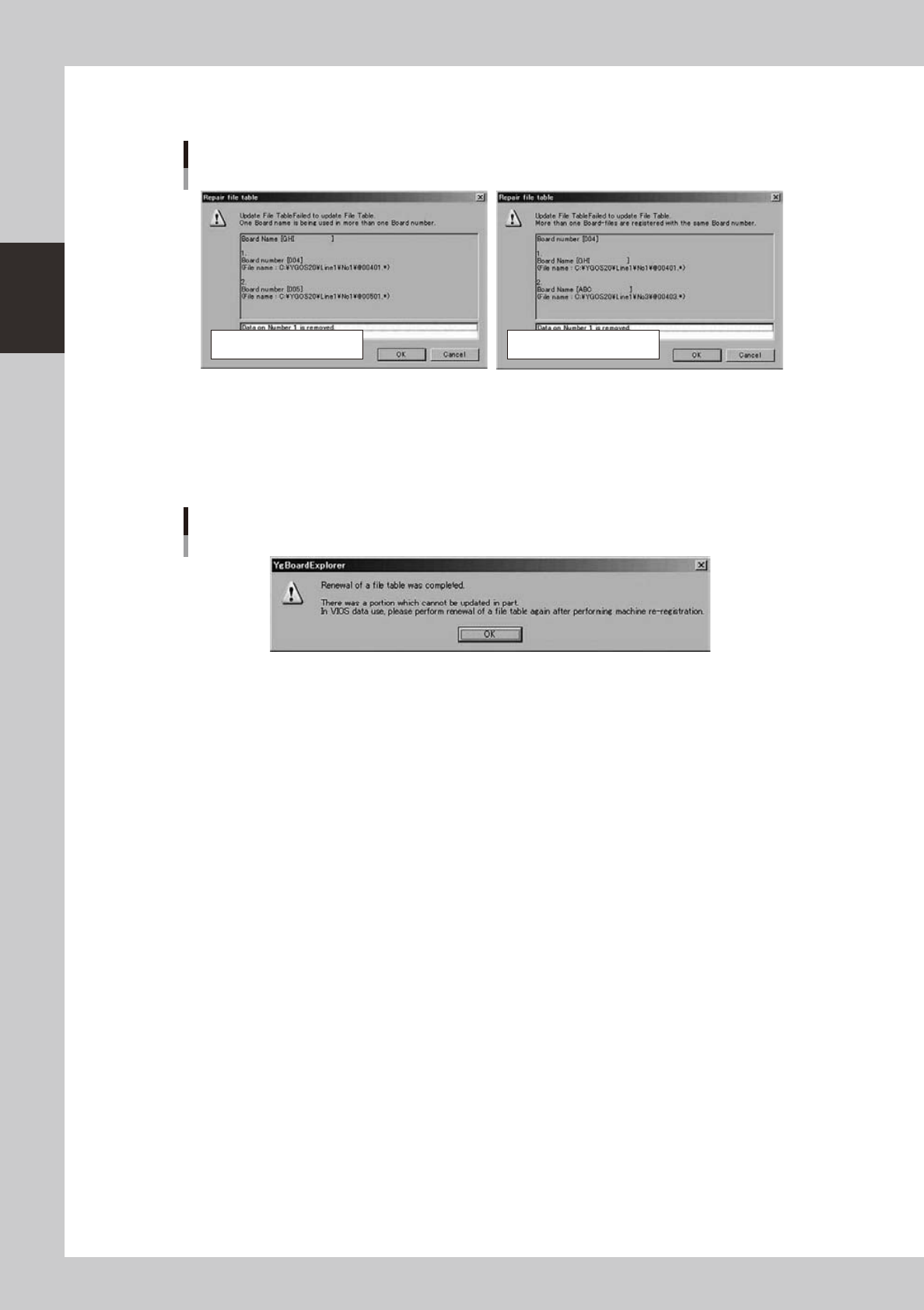

4. When an error not acceptable to restore automatically occurs, the following error dialogs are displayed.
Specify the data to delete and click the [OK] button.
Error dialogs
Number repetition errorName repetition error
64264-S0-00
* The update processing ends after a while when the error is not found or an error not acceptable to restore
automatically doesn't exist.
* When “Update FTABLE” processing ends, the following alert message might be displayed.
Pleaseexecute“Machinere-registration”byusingacorrectsystemdatadiskofthemachineinthatcase.
Afterwards, please execute “File table update” again.
Update FTABLE completed
64265-S0-00
* Please refer to “8.3 About the error kind and method of the restoration” for the error content and method of
the restoration.
