3-39
3
Board Editor
2.11.2 Renumber Function
Renumberfunctioncanbeconductedofflinewiththemachine.
However, only [Mount Data] can be renumbered when offline.
n

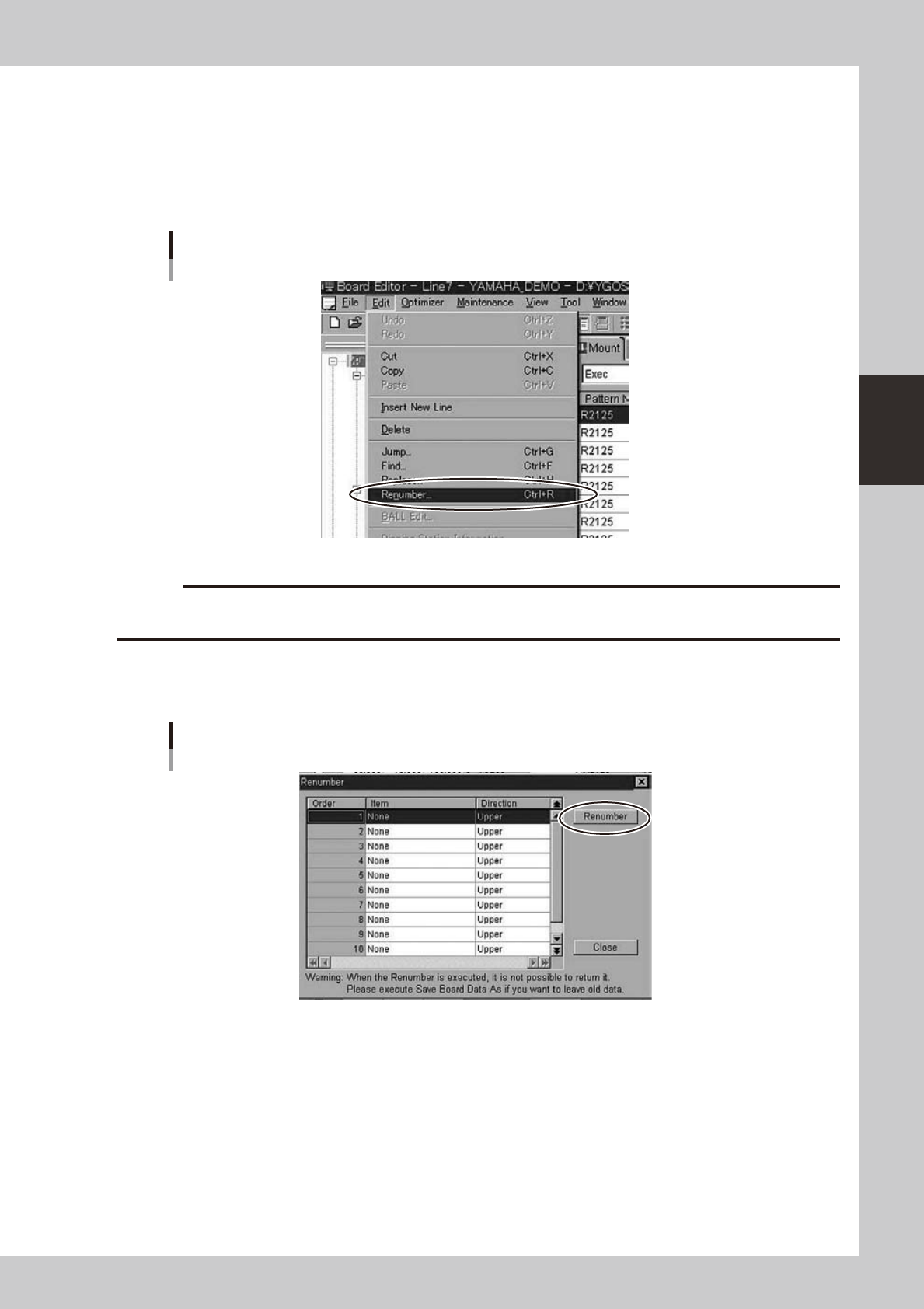

Start of the dialog
The dialog is started from the following menus.
Start of the dialog
64367-S0-00
c
CAUTION
Once the Renumber function is conducted, it is impossible to return to the original state. Please take the backup or
save it by new name.
n
Execution
The following dialogs are displayed.
Renumber dialog
64368-S0-00
•
Item
InformationthatbecomesakeyforRenumberisselected.
Ex.) Pattern Name, X, Y, Z
It is possible to set it up to ten kinds, and it is executed from the high rank by priority.
•
Direction
TheRenumberdirectioncanbeselected.
•
Renumber
Renumberisexecuted.
3-40
3
Board Editor
n

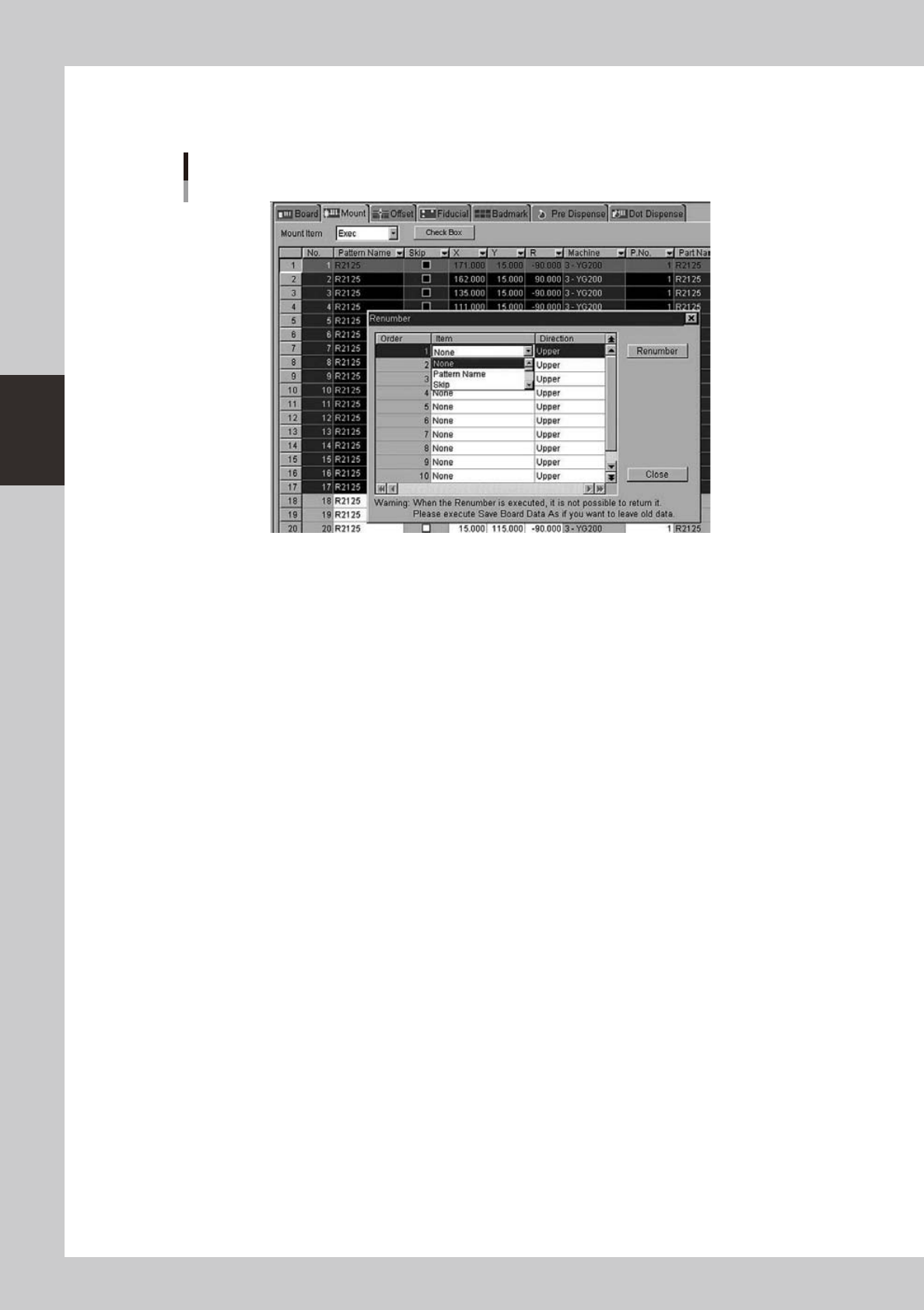

Renumber of selection line
WhenyouexecuteRenumberasfollowsfortheselectionline,Renumberisexecutedintheselectionline.
Renumber of selection line
64369-S0-00
n
Restriction matter
•
This function has been limited to the Mount Data.
•
Itdoesn'tcorrespondtoREDOandUNDO.
3-41
3
Board Editor
3. Graphic View
The graphic view graphically displays component placement layout and fiducial mark positions in the main
view as well as component and mark outlines.
3.1 Displaying/closing the graphic view
●
Displaying the graphic view
To display the graphic view when not displayed, click the Graphic View icon in the tree view.
Reference
Selecting "Graphic View" from the View menu or clicking the [Show Graphic View] button on the toolbar also displays
the graphic view.

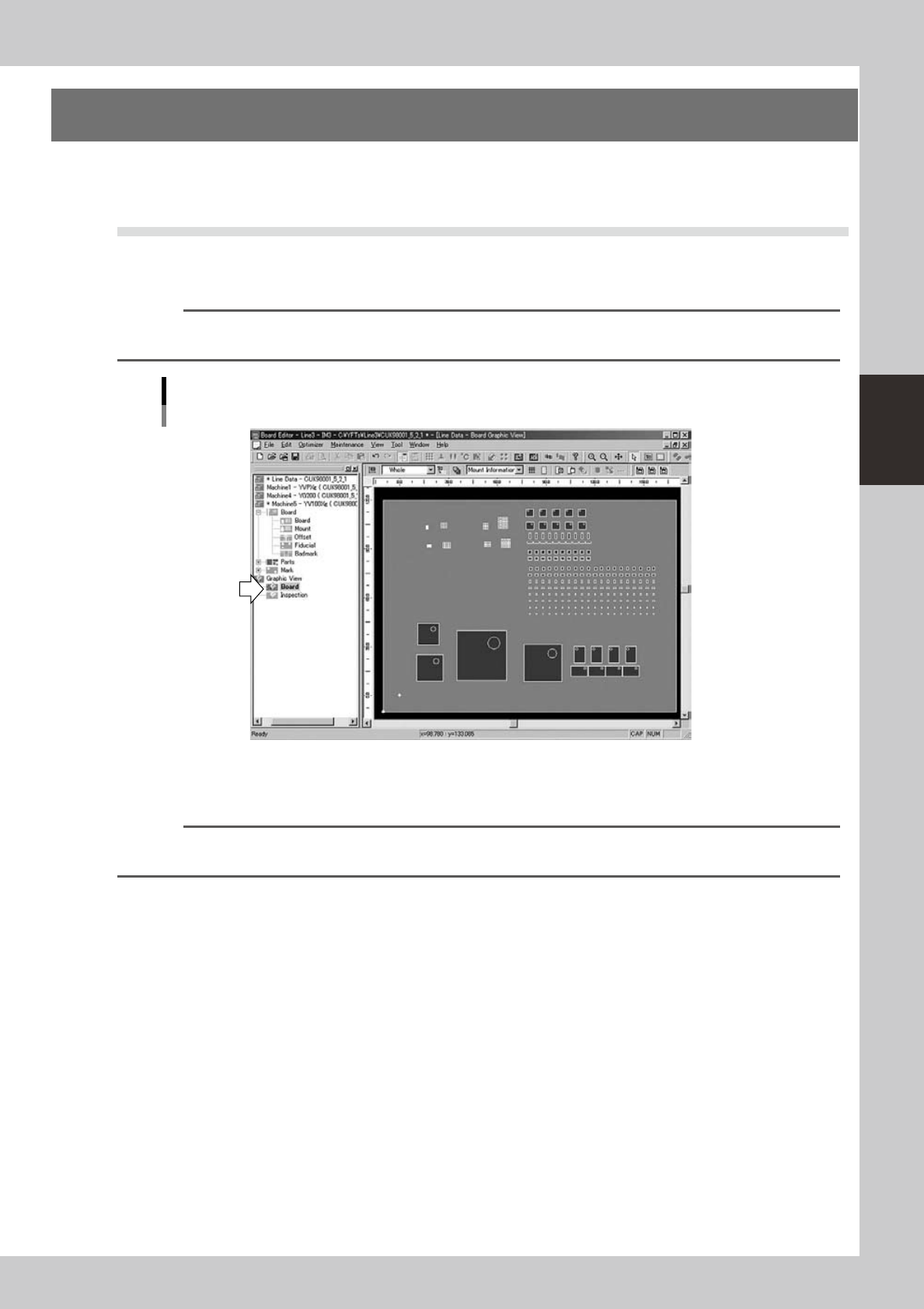

Graphic view
64348-S0-00
●
Closing the graphic view
To close the graphic view when being displayed, click an icon other than the Graphic View icon in the tree view.
Reference
Selecting "Graphic View" from the View menu or clicking the [Show Graphic View] button on the toolbar also closes
the graphic view.
