Board Editor

3.4 Board Graphic View Offset setting

Board Graphic View Offset setting

64370-S0-00

Settingforchangingtheindicationpointoftheorigincoordinate(0,0)fromthe“position(X=5mm,Y=5

mm) from the board outline” to a desired location.

3-48

Board Editor

Change Offset Value

To change the offset value, it operates it as follows.

Display Board Graphic View Offset dialog

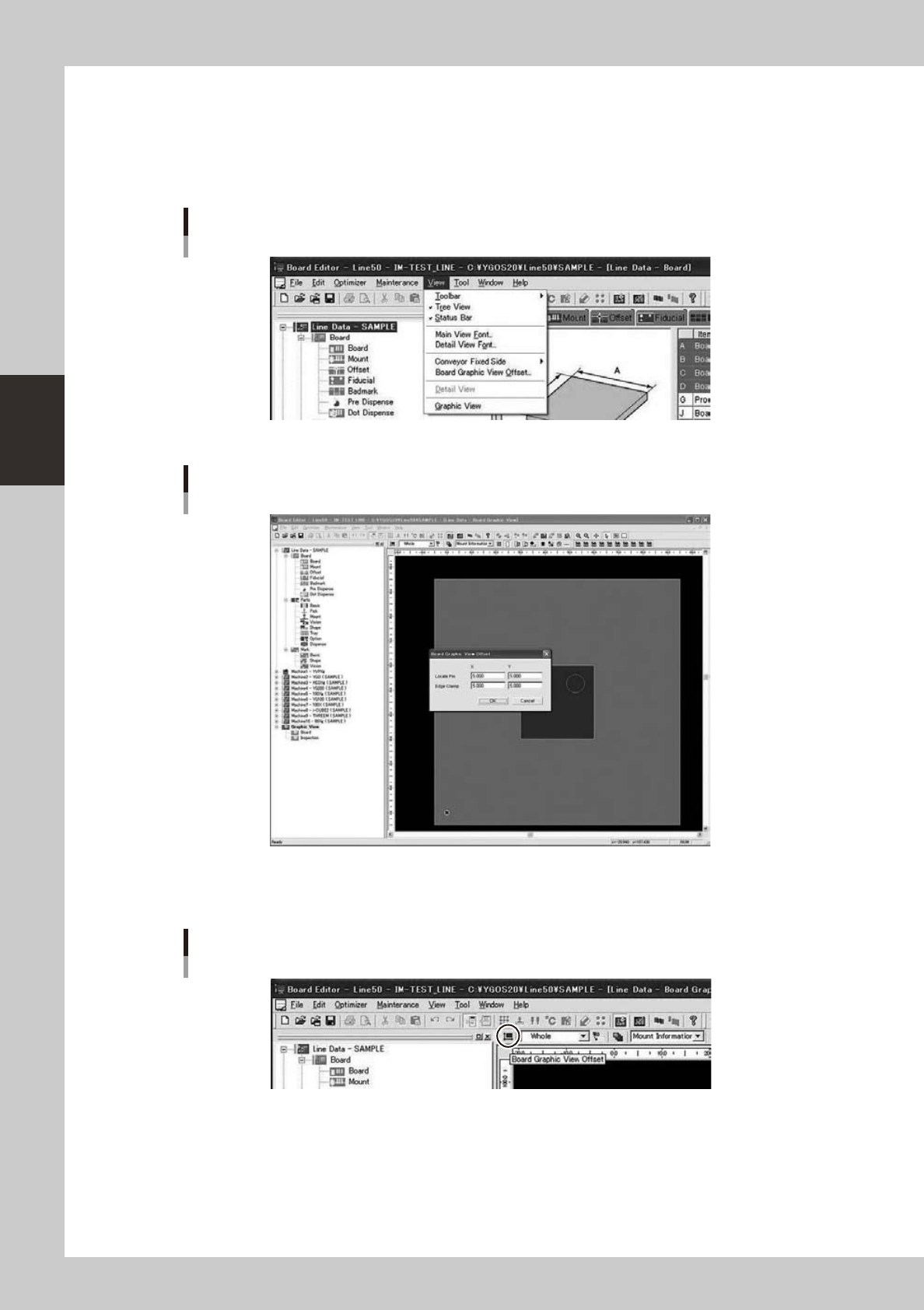

Select“View”-“BoardGraphicViewOffset”menu,andthentheBoardGraphicViewOffsetdialogisopened.

“View” - “Board Graphic View Offset” Menu

64371-S0-00

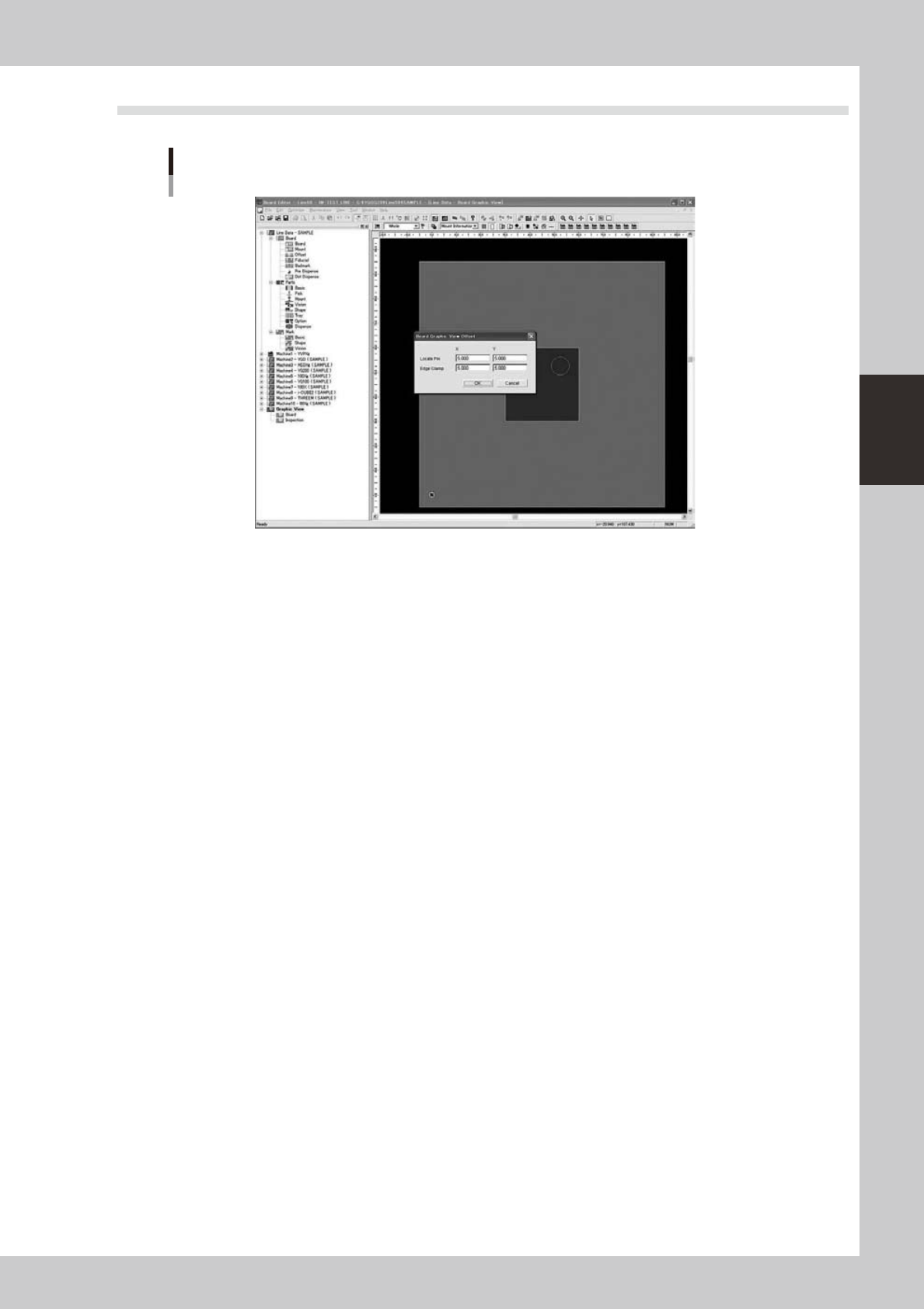

Opened Board Graphic View Offset dialog

64372-S0-00

Or, it is able to open the Board Graphic View Offset dialog by pushing the [Board Graphic View Offset]

button.

[Board Graphic View Offset] Button

64373-S0-00

3-49

Board Editor

Board Graphic View Offset dialog

You can change Offset Value from Board Graphic View Offset dialog

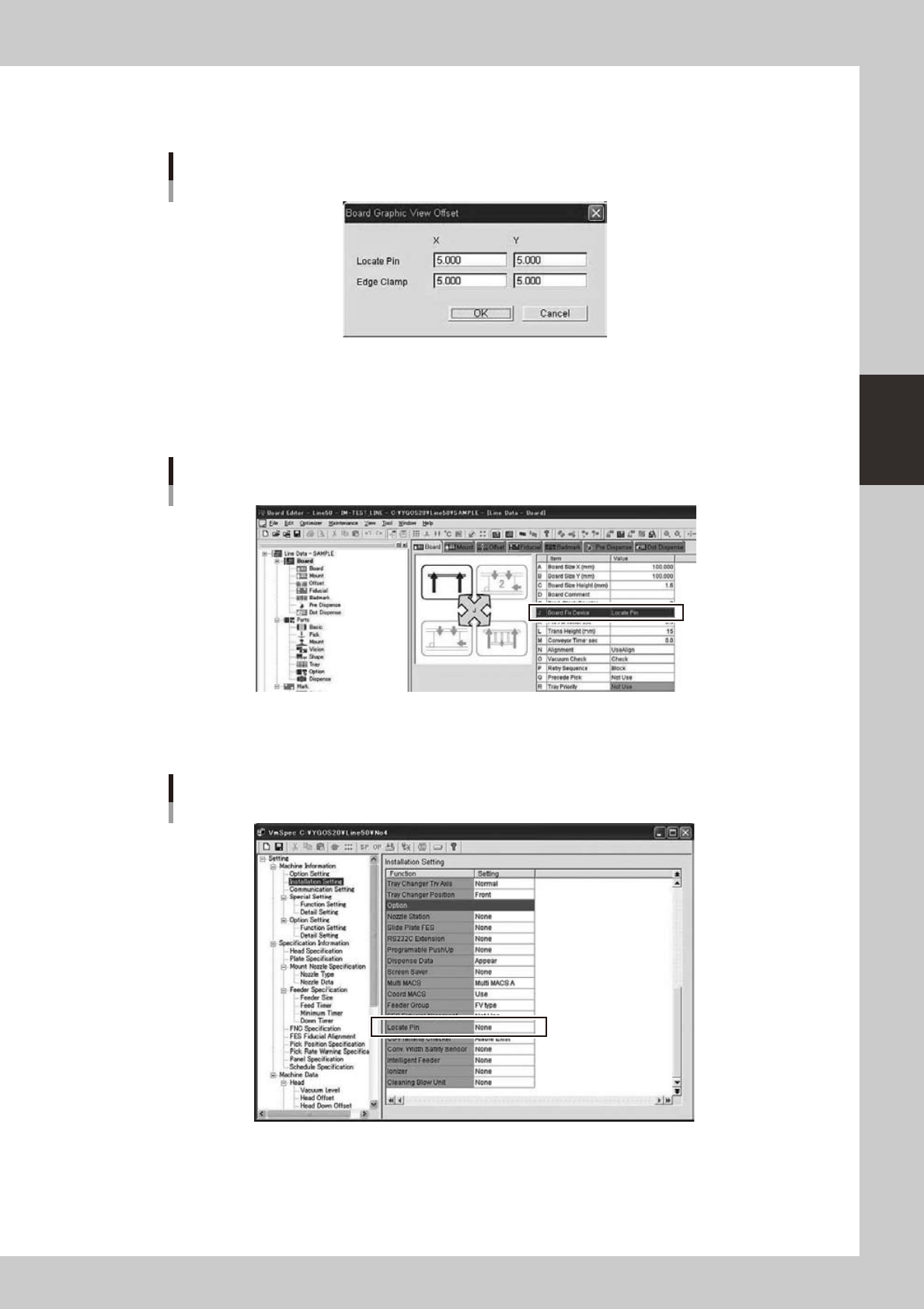

Board Graphic View Offset dialog

64374-S0-00

When the dialog is closed by pushing the [OK] button after changing, the offset value after it changing is

reflected in a Graphic View.

There are two kinds of offset values (based the Edge Clamp and the Locate Pin) displayed here.

It is different which to be used according to each machine uses the method of fixing which substrate.

Board Fix Device

64375-S0-00

However,when“LocatePin”settingonthe“MachineProperty”is“None”(itis“MachineInformation”-

“InstallationSetting”),theOffsetValue-“EdgeClamp”isusedalways.

“Machine Information” - “Locate Pin” Exist / None
