4.3.6 Interference Check (Only at the feeder layout display)

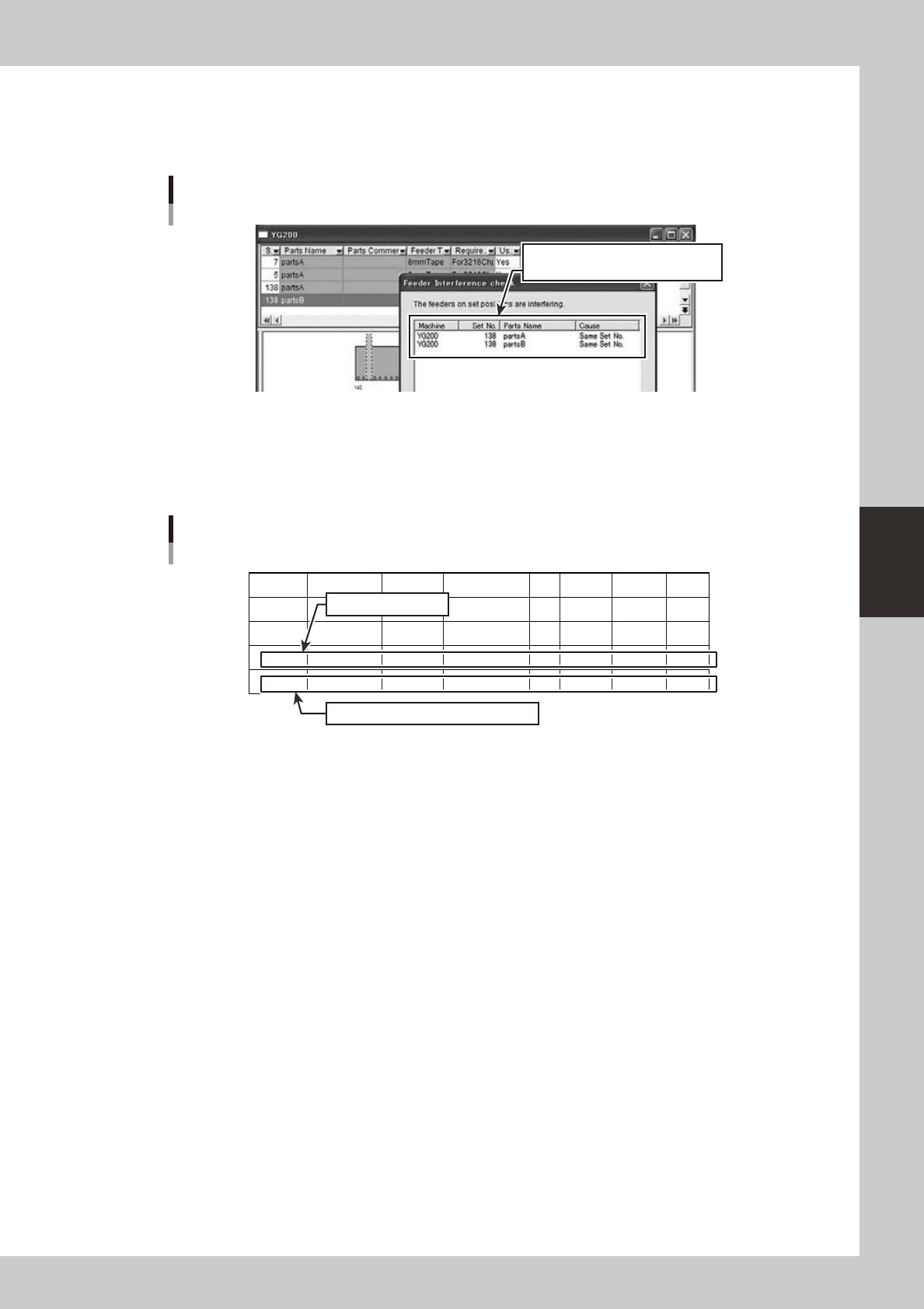

Itistreatedassumingthatpartsofmountpoint0exist,too,themountpointispossible,andtheinterference
check is possible as well as parts of one or more.
Interference Check
It interferes at the set No. where
parts of mount point 0 are the same
64475-S0-00
4.3.7 Setup Assignment
Partsofmountpoint0aretreatedassumingthatitexists,andoutputasmountpoint0.AsforUnassignedplan
information,setNo.istreatedas0,andoutput.
Setup Assignment
G200_3
Comment Replace
A1B3_0
0
0
Total
0
0
No
[1]
[2]
FdrType
8mmTape
8mmTape
CompName
partsA
partsB
SetNo
129
0
Count
Group
1
1
Parts of mount point 0
Unassigned plan parts of mount point 0
64476-S0-00
4-50
4
Feeder Viewer
5. Multi Lane Support
Additional features supporting the dual lane machine are listed below.

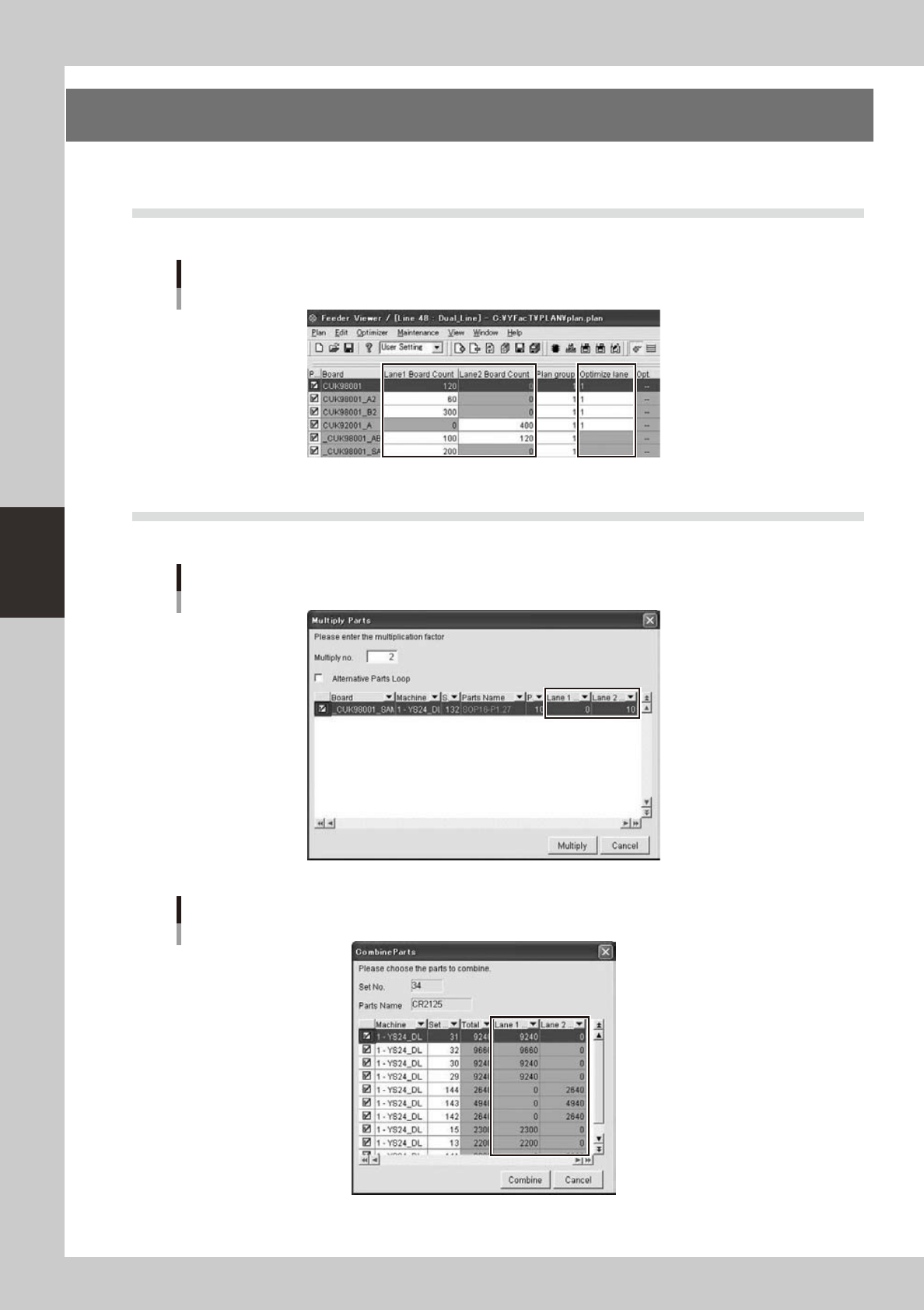

5.1 Production board list is extended
It is extended for board count of each lane. [Optimize lane] is active only for single board data.
Production board list
64480-S0-00
5.2 [Multiply Parts] and [Combine Parts] dialog are extended
It is extended for parts count of each lane.
[Multiply Parts] dialog
64481-S0-00
[Combine Parts] dialog
64482-S0-00
4-51
4
Feeder Viewer

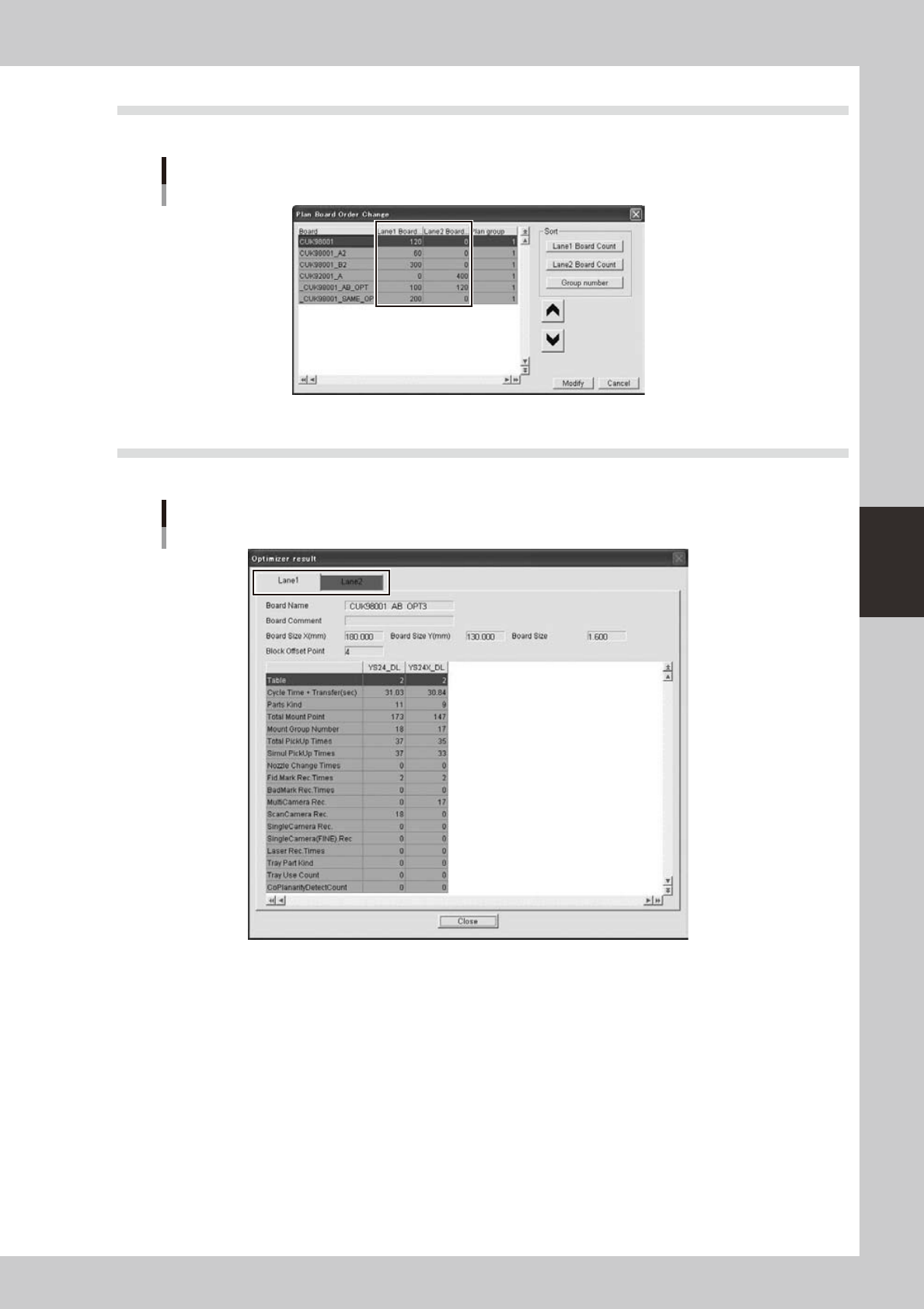

5.3 [Production Plan]-[Plan Board Order Change] dialog is extended
It is extended for board count of each lane and sorting by board count.
[Plan Board Order Change] dialog
64483-S0-00
5.4 [Optimizer]-[Optimizer Result] is extended
It is extended for each lane. It is same with Optimizer application.
[Optimizer Result] dialog
64484-S0-00
