2-29 2 Board Explorer The conv er ted Inspection progr am can be imported with Inspection progr am import/export screen of the inspector or YViOS. Inspector data import/export screen 642B9-S0-00
2-28
2
Board Explorer
8

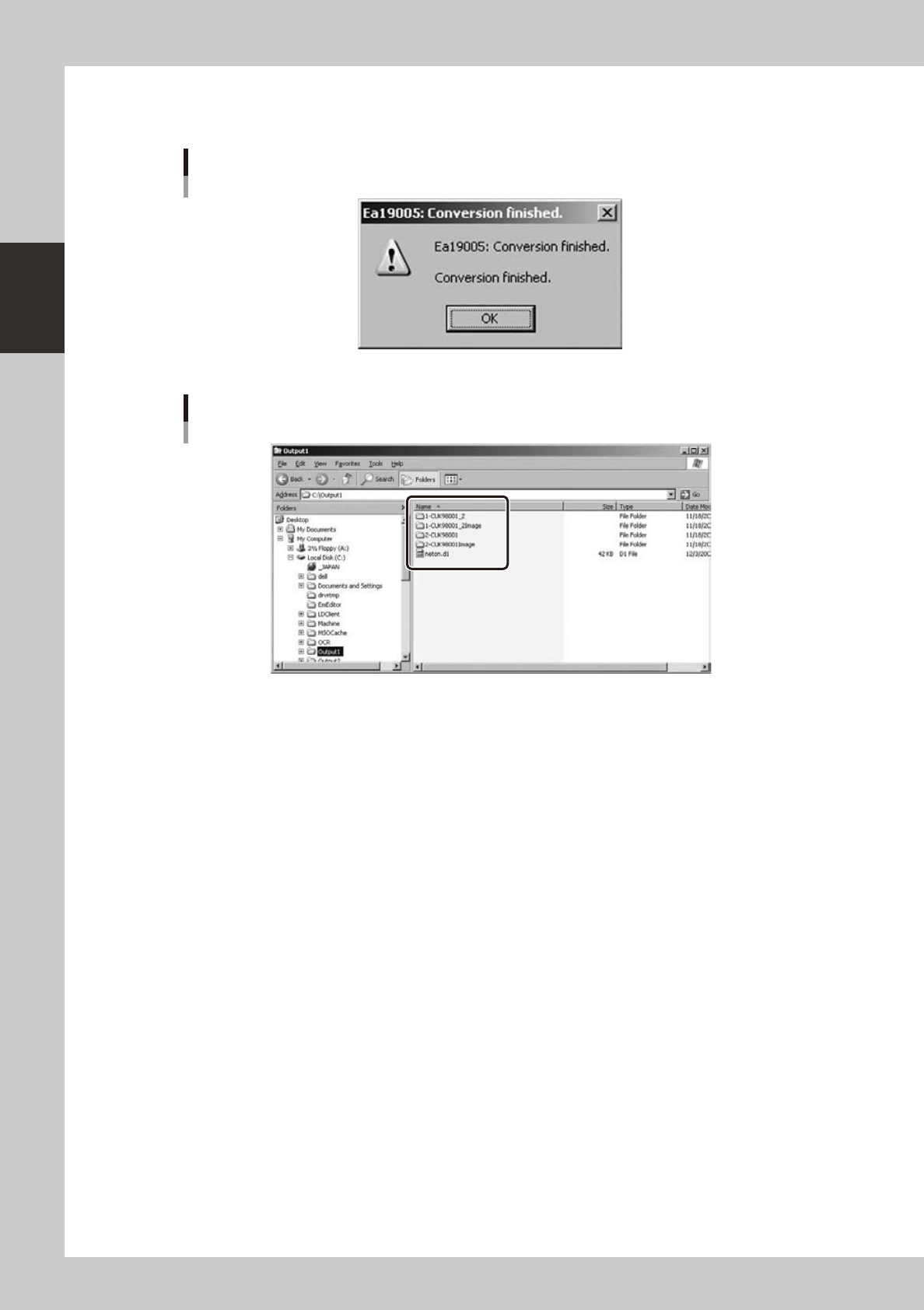

When conversion is completed, conversion completion message will be indicated
and the converted Inspection program will be stored in the destination folder.
Conversion completion message
642B7-S0-00
Converted inspector data
642B8-S0-00
2-29
2
Board Explorer

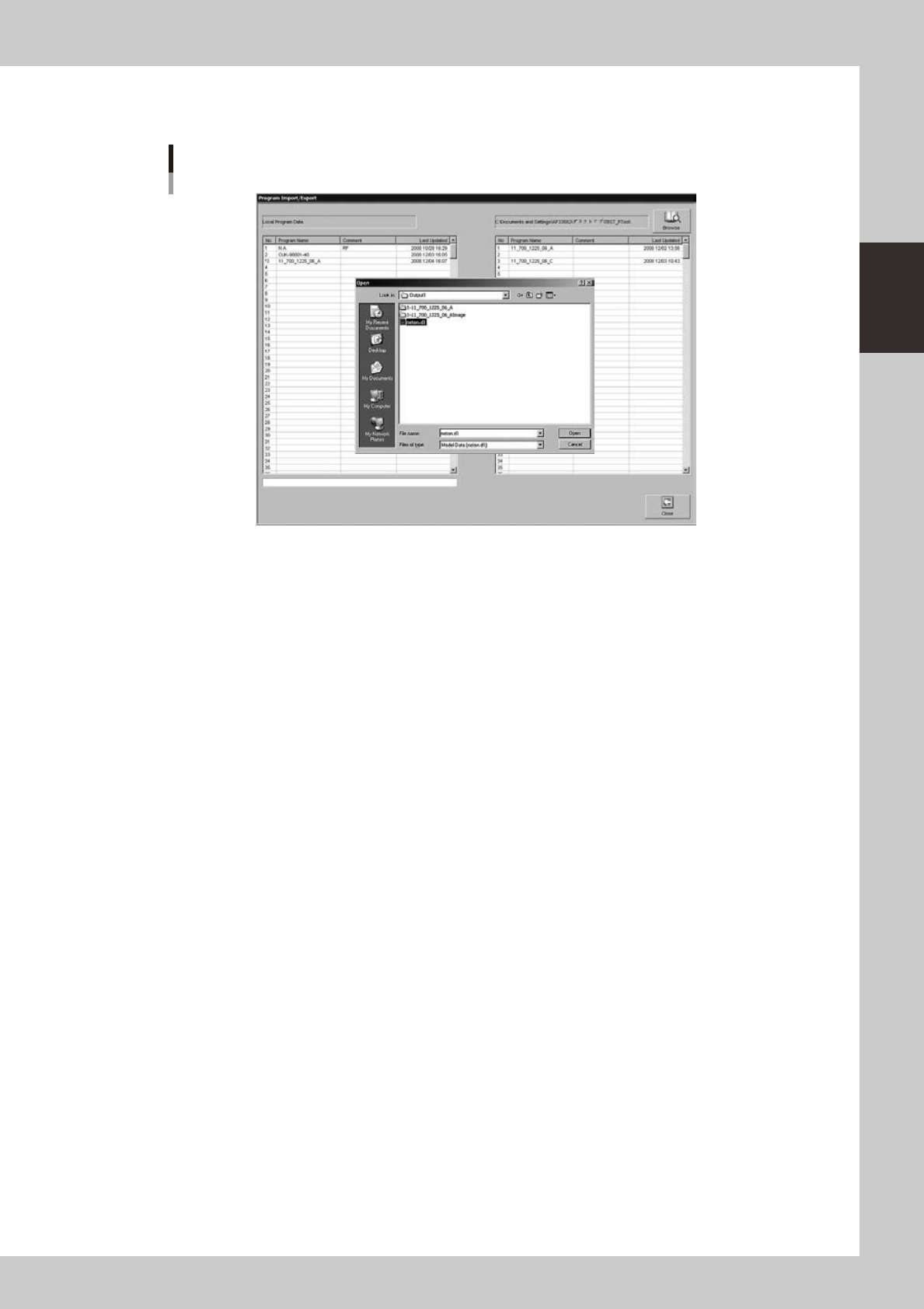

The converted Inspection program can be imported with Inspection program import/export screen of
the inspector or YViOS.
Inspector data import/export screen
642B9-S0-00
2-30
2
Board Explorer
4.2.2 Type compatibility table
When converting board data of a mounter to the Inspection program, library part name of inspector can be
added to the inspection data of part placement layout.
With this function, almost all the inspection data will be completed by importing the converted Inspection
program with the inspector unit or YViOS and then opening library with full distribution. (Some data
adjustment will be necessary.)
To use this function, it is necessary to create a correspondence table between parts name of the mounter and
library parts name of the inspector. If the correspondence table contains no data for a part, library part name
will be output as empty.
Mounter part name Library part name of inspector
AAA AAA01
BBB BBB01
CCC CCC01
: :
Type correspondence table can be created with type correspondence table editor. Refer to the manual of the
type correspondence table editor for instructions on how to use the tool.

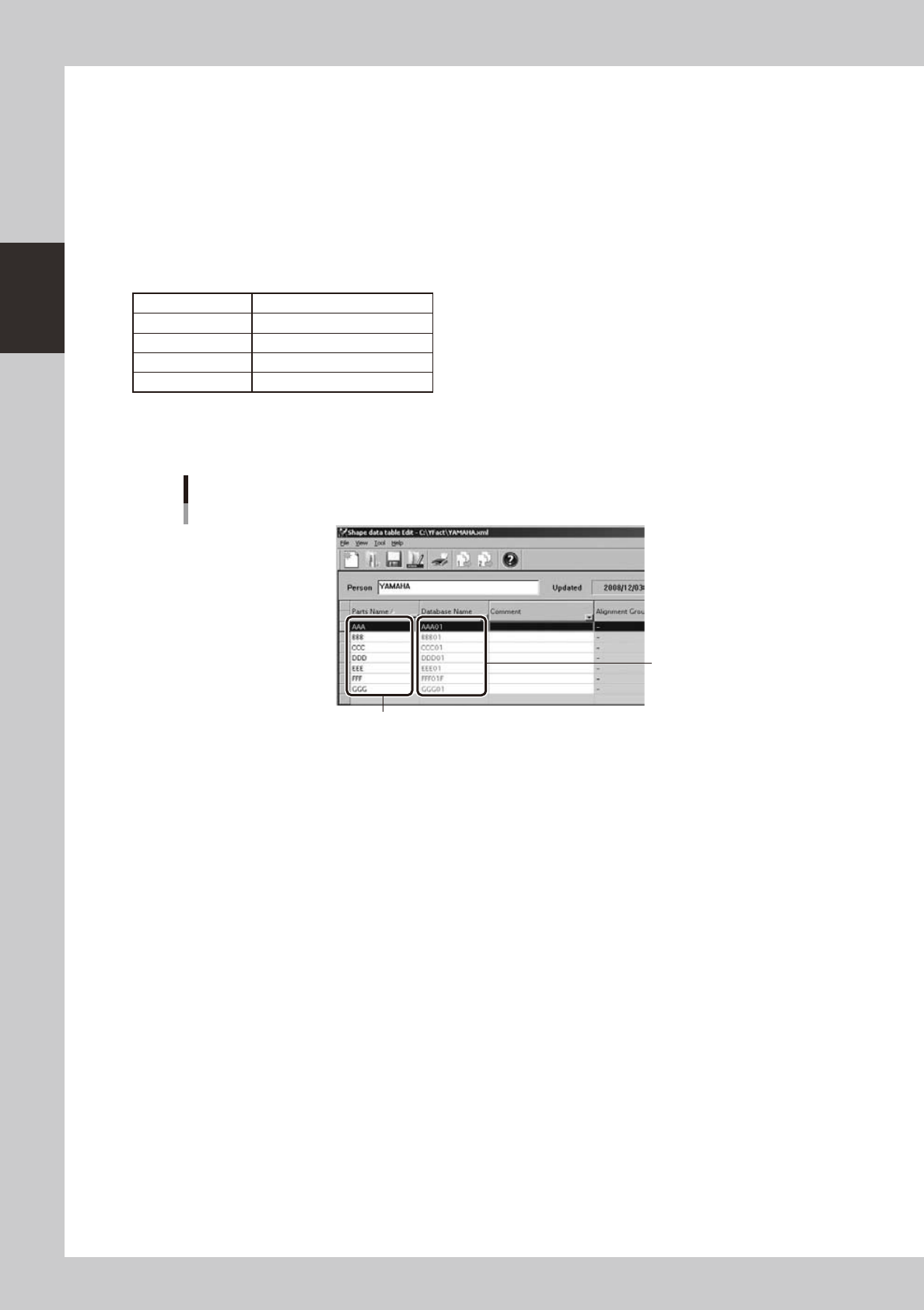

Creation of type correspondence table
Input library part name for
the inspector.
Input part name for the mounter.
642C1-S0-00
