KL V -1505 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. …
KLV-1505
5
7
5
23
14
21
2
12
20
15
2
8
13
11
9
16
3
22
17
3
4
3
1
10
1
25
18
19
6
2
6
2
24
2
5
7
5
23
14
21
2
12
20
15
2
8
13
11
9
16
3
22
17
3
4
3
1
10
1
25
18
19
6
2
6
2
24
2
6
2
Mask Cam / Duct
Camera Section
KLV-1505
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 90990-01J058 BOLT HEX,SOCKET HEAD 8 39
2 91312-04005 BOLT HEX,SOCKET HEAD 9 40
3 91312-04012 BOLT HEX,SOCKET HEAD 5 41
4 91312-04025 BOLT HEX,SOCKET HEAD 2 42
5 91312-05014 BOLT HEX,SOCKET HEAD 4 43
6 92902-04200 WASHER,PLAIN 4 44
7 92902-05200 WASHER,PLAIN 2 45
8 97602-03308
SCREW PAN HEAD W/WASHER
2
46
9 99480-04008 PIN,PARALLEL 2
47
10 KHT-M76A0-00 FIDUCIAL LIGHT ASSY 1
LIGHT2 B
Í
48
11 KHT-M76B0-00 LENS FID. 1 /
Í
49
12 KJJ-M66K0-00 HNS,S.VIEW CAMERA 1 /
Í
50
13 KJX-M7210-00 CCD CAMERA 1
CAM2 B
Í
51
14 KLC-M2818-00 TAPE,LX AXIS 1 1
/
52
15 KLV-M653J-00 SENSOR MX ORG ASSY 1
MX ORG B
Í
53
16 KLV-M7608-00 HOLDER,CAMERA 1 /
Í
54
17 KLV-M7609-00 STAY,LIGHT 1 /
Í
55
18 KLV-M760A-01 DOG,SENSOR MX 1
/
Í
56
19 KLV-M760B-00 COVER,CAMERA HNS. 1
/
57
20 KLV-M760F-00 STOPPER,MX 1
stopper under shipment
/
58
21 KLV-M7611-00 BRKT.,DUCT MX 1 1 /
Í
59
22 KLV-M7612-00 BRKT.,DUCT MX 2 1 /
Í
60
23 KLV-M7613-00 CABLE DUCT,MX 1 /
Í
61
24 KLV-M7614-00 TAPE,DUCT MX 1 1 /
Í
62
25 KLV-M7615-00 TAPE,DUCT MX 2 1 /
Í
63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
6
2
Mask Cam / Duct
Camera Section
KLV-1505
5
8
1
6
4
2
7
3
9
5
8
1
6
4
2
7
3
9
7
1

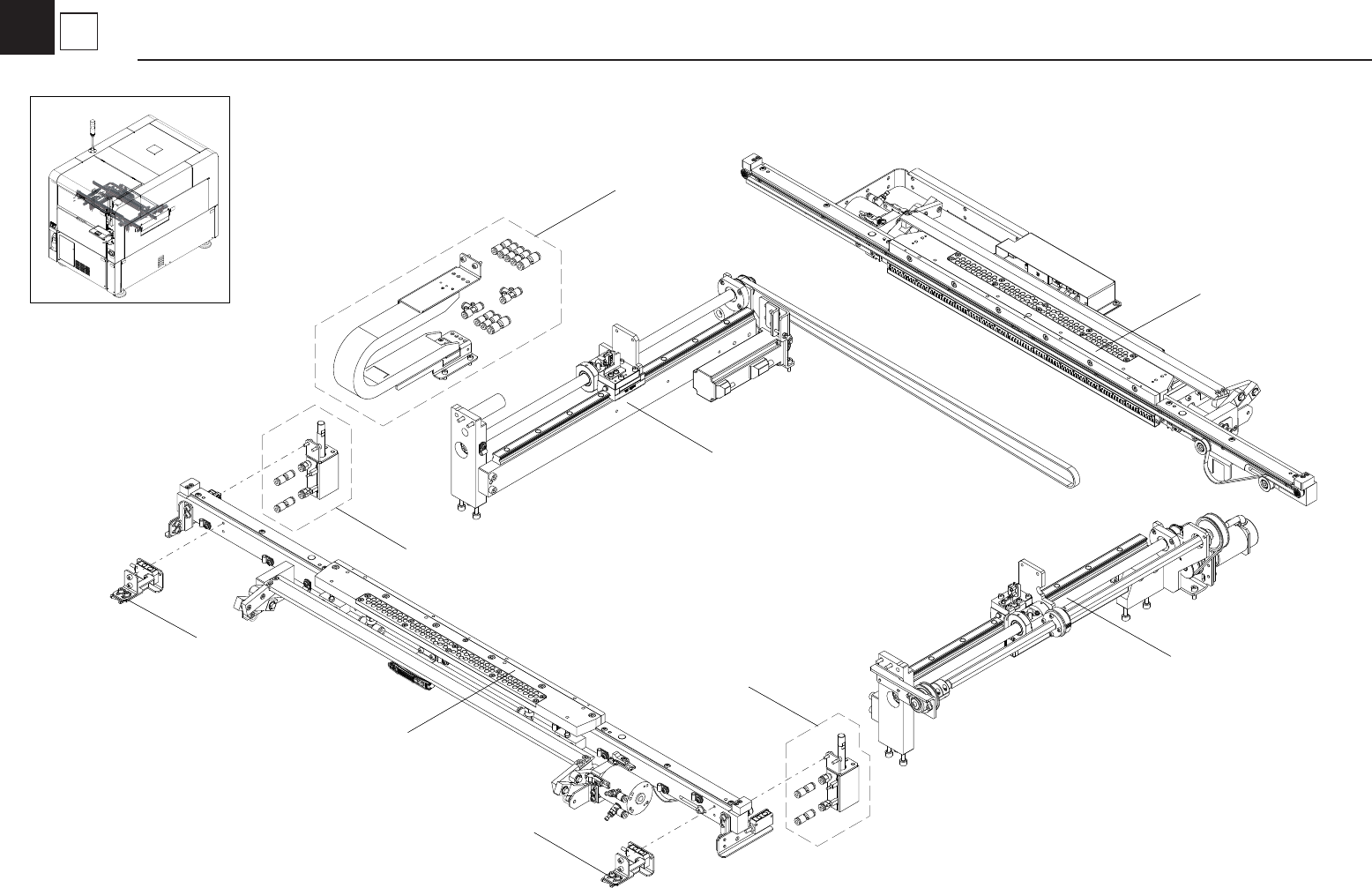

Overview
Conveyor Section
