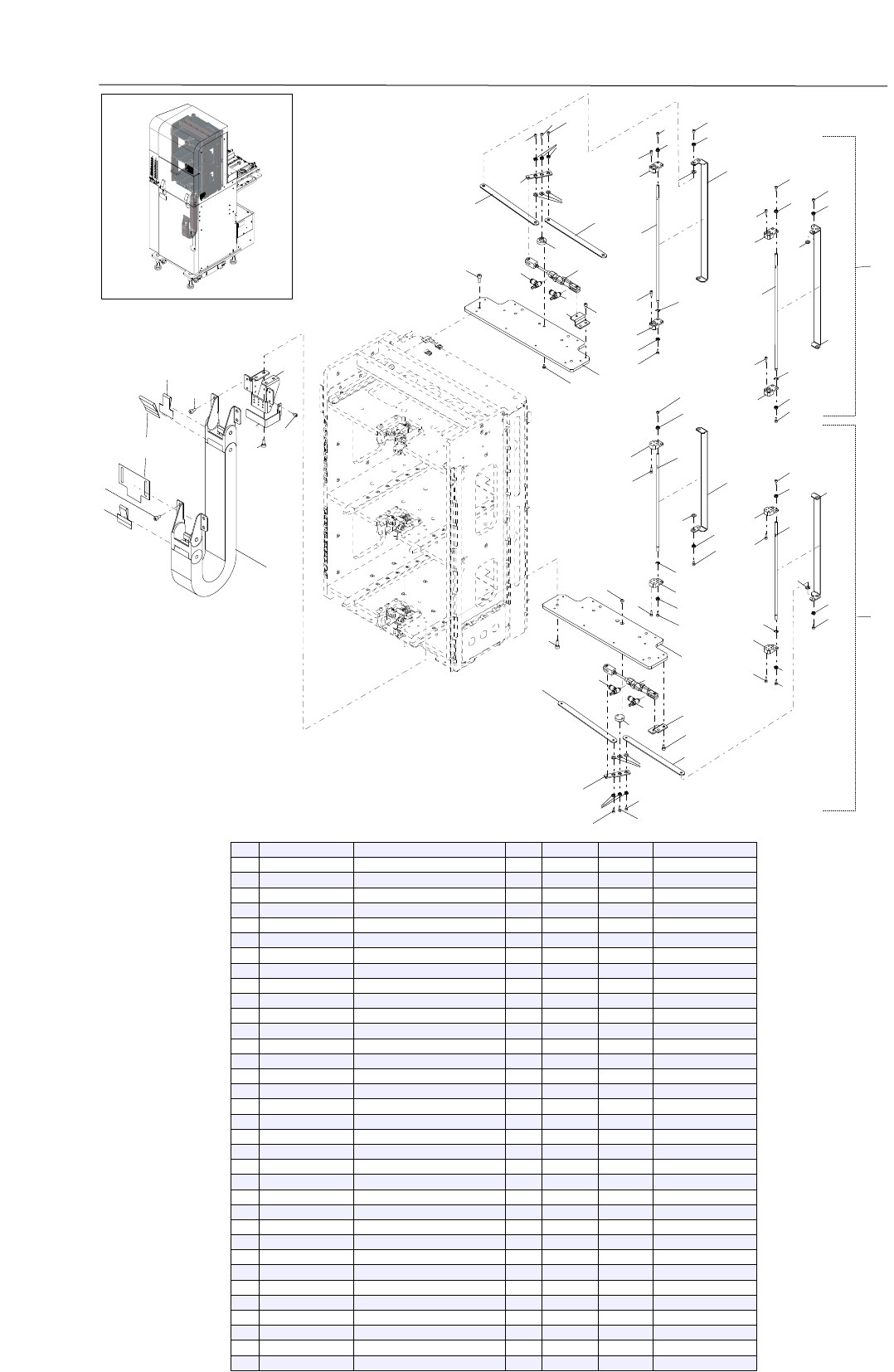

Shutter / Duct
Magazine
KMA-1503
5-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$SC4-M5A
SPEED CONTROLLER
4
2
90440-01J040
CIRCLIP
4
3
90933-03J683
BEARING
18
4
91312-03006
BOLT HEX,SOCKET HEAD
8
5
91312-03008
BOLT HEX,SOCKET HEAD
8
6
91312-03010
BOLT HEX,SOCKET HEAD
26
7
91312-04006
BOLT HEX,SOCKET HEAD
2
8
KJD-M178E-00
BLOCK 1,SHAFT
8
9
KMA-M653N-00
CYLINDER,LATCH1 ASSY
1
10
KMA-M653P-00
CYLINDER,LATCH2 ASSY
1
11
KMA-M172A-00
TAPE 1,AZ DUCT
1
12
KMA-M172B-00
TAPE 2,AZ DUCT
1
13
KMA-M1762-01
STOPPER R
1
14
KMA-M1763-01
STOPPER L
1
15
KMA-M1764-00
PLATE,LINK
4
16
KMA-M1765-01
STOPPER R
1
17
KMA-M1766-01
STOPPER L
1
18
KMA-M1775-00
BRKT.,CYLINDER
2
19
KMA-M1787-00
BRKT.,DUCT
1
20
KMA-M1789-00
SHAFT,CENTER
2
21
KMA-M178A-00
PLATE 1,SHUTTER
2
22
KMA-M178C-00
PLATE,JOINT
2
23
KMA-M178E-00
SPACER
10
24
KMA-M178G-00
SHAFT 2,SHUTTER
2
25
KMA-M178H-00
SHAFT 1,SHUTTER
2
26
KMA-M1790-00
STAY,DUCT
1
27
KMA-M1796-00
CABLE DUCT
1
28
91312-04008
BOLT HEX,SOCKET HEAD
4
29
91312-05010
BOLT HEX,SOCKET HEAD
8
30
91312-05012
BOLT HEX,SOCKET HEAD
4
31
91312-05014
BOLT HEX,SOCKET HEAD
8
32
92012-04006
BOLT, BOTTON HEAD
4
33
KMA-M17D2-00
SHUTTER 1 ASSY.
1
34
KMA-M17D3-00
SHUTTER 2 ASSY.
1
