Page HANWHA TECHWIN 93 SLM120/110 Cover Ass’y (1/3) No. LEVEL P ART No. P ART NAME Q'TY TYPE Old No. Sto ck Apply Reference A J90521048A KEYBOARD_MOUSE_ASSY 1 B J70521673A OP_P ANEL_ASSY AP5_OP001 1 C AM03-9001 54 A…
Page
HANWHA TECHWIN
92
SLM120/110

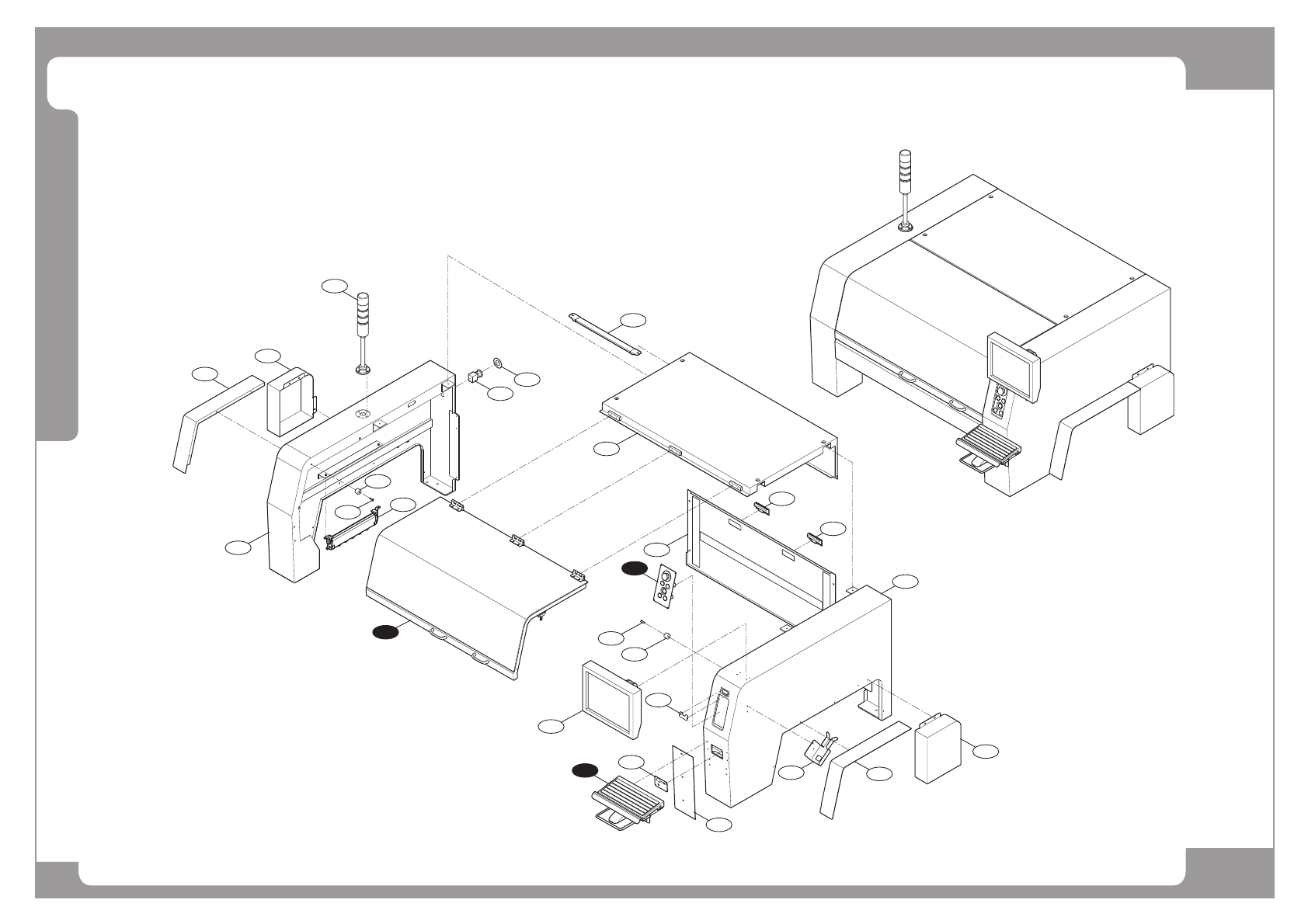

Cover Ass’y (1/3)
10
17
6
8
3
2
1
1
14
18
19
13
11
12
5
16
15
9
4
7
C
A
B
20
2
5
0
Page
HANWHA TECHWIN
93
SLM120/110
Cover Ass’y (1/3)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A J90521048A KEYBOARD_MOUSE_ASSY 1
B J70521673A OP_PANEL_ASSY AP5_OP001 1
C AM03-900154 AP5_ACRYL_DOOR_STD_ASSY AM03-900154 1
1 FC29-900158 COVER_PULL 2
2 J73520001B DOOR CUSHION [J73520001B] 2
3 J4713024A TOWER_LAMP 1
4 J70521699A AP5_CONV_SIDE_L J70521699A 1
5 FC18-901832 SHOULDER SCREW 2
6 J70521263A MONITOR_CABLE_COVER J70521263A 1
7 J70521709A AP5_COVER_SIDE_COVER 1
8 J70521702A AP5_COVER_MOTOR_CAP_R J70521702A 1
9 J70521701A AP5_COVER_MOTOR_CAP_L J70521701A 1
10 J70521700A AP5_CONV_SIDE_R J70521700A 1
11 J70521677A AP5_TOP_COVER_RE J70521677A 1
12 J70521676A AP5_COVER_SIDE_BACK_PLATE J70521676A 1
13 J70521672A AP5_COVER_SIDE_LEFT_RE J70521672A 1
14 J70521671A AP5_COVER_SIDE_RIGHT_RE J70521671A 1
15 EP20-900127 EMERGENCY S/W[704.075.2] 1
16 PT03-900161A STICKER-EMERGENCY PT03-900161A 1
17 J70521213A LOWER_OP_PANEL-SM431 1
18 FC15-000048A COVER-AP5_PROTECT_BKT;ME1:Steel 1
19 EP19-900083 ELECTRIC_SWITCH 1
20 CD06-000004 MONITOR-LCD;SST6000,15INCH,1024*768 1 CD05-900126
Page
HANWHA TECHWIN
94
SLM120/110

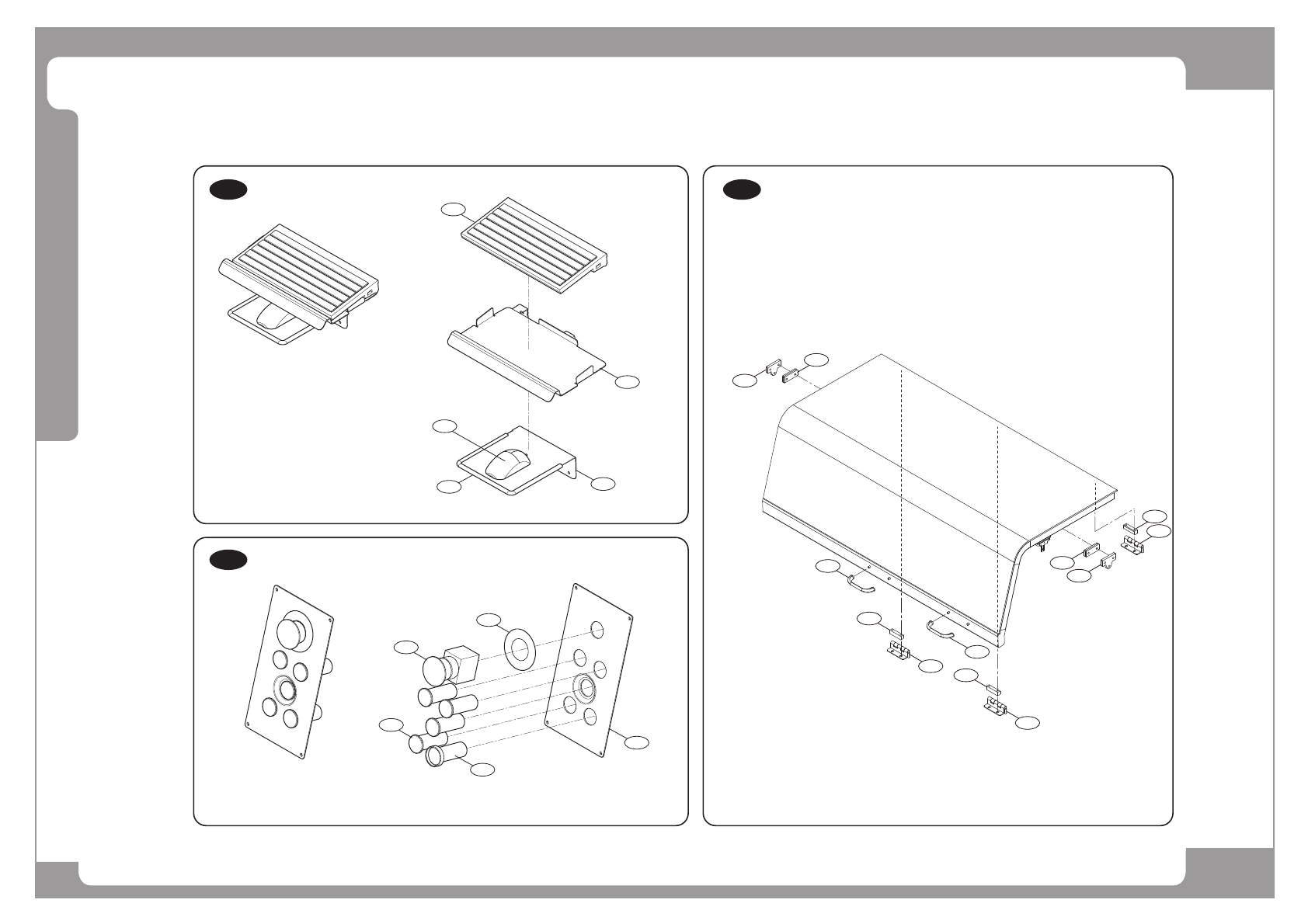

Cover Ass’y (2/3)
A-1
B-1
B-2
B-3
A-3
A-5
A-2
A-4
C-3
B-4
B-5
A C
B
C-2
C-4
C-5
C-1
C-1
C-2
C-3
C-4
C-5
C-4
C-5
