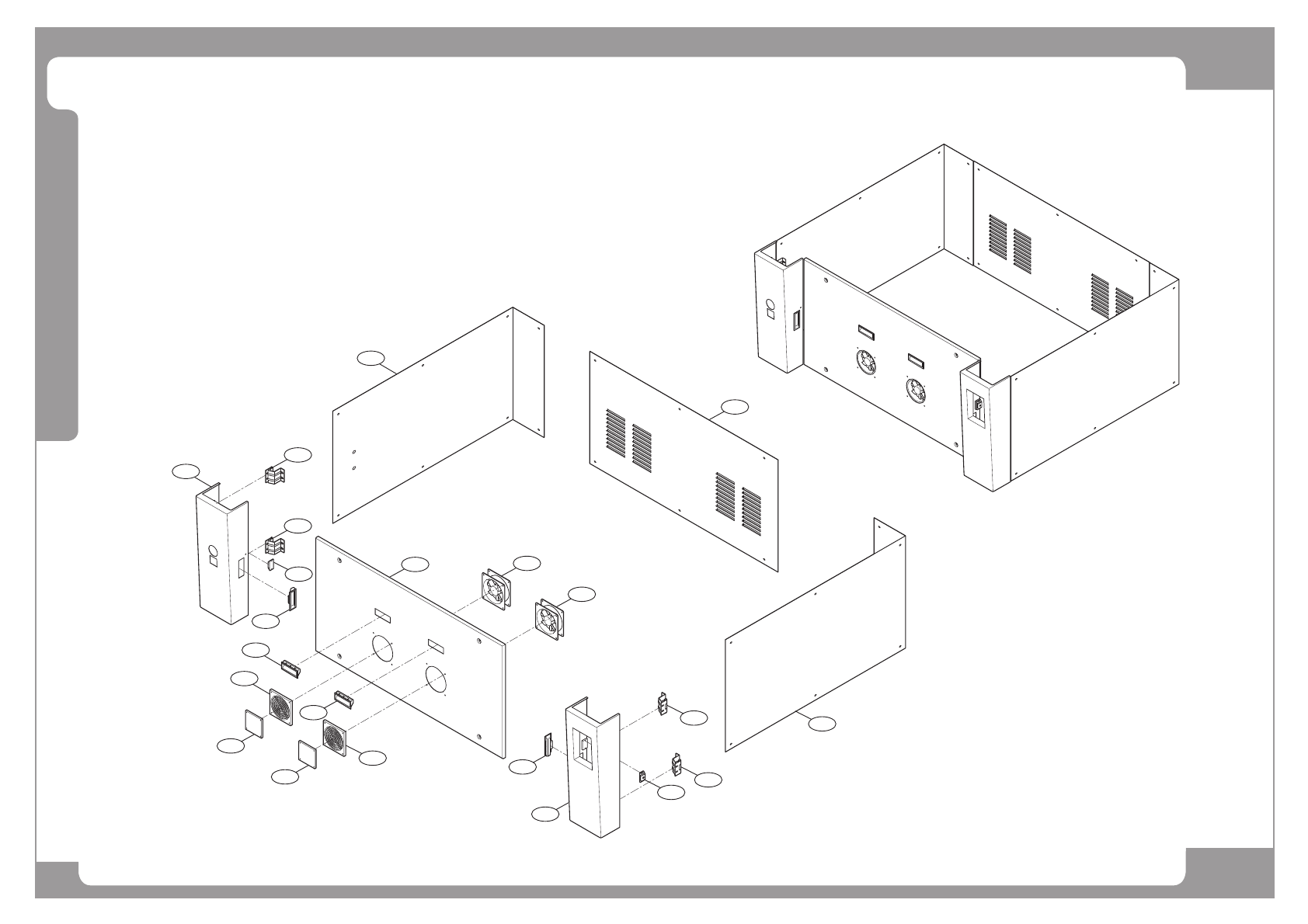

Page
HANWHA TECHWIN
97
SLM120/110
Cover Ass’y (3/3)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
1 FC15-000747A COVER-SLM_DOWN_SIDE_COVER_L 1 J70521703A
2 FC15-000748A COVER-SLM_DOWN_SIDE_COVER_R 1 J70521704A
3 FC15-000746A COVER-SLM_COVER_DOWN_BACK 1 J70521706A
4 J70521714A AP5_COVER_DOWN_LEFT J70521714A 1
5 J70521713A AP5_COVER_DOWN_RIGHT J70521713A 1
6 FC15-000745A SLM_COVER_LFM 1 J70521696A
7 EP07-901508 COOLING FAN[4715MS-22T-B50] 2
8 FC29-900158 COVER_PULL 4
9 FC12-900009 MAGNETIC C-179 1
10 FC29-900197 B-530-1_HINGE B-530-1 4
11 EP07-901528 FAN_FILTER 120MM(NMB) 2 HP04-900010
12 HP04-000075 FILTER,AIR-fan filter_ metal_120mm 2
