Page HANWHA TECHWIN 109 SLM120/110 Electric Device Ass’y (2/2) No. LEVEL P ART No. P ART NAME Q'TY TYPE Old No. Sto ck Apply Reference 1 J70791209A P ANEL_S TEP_BOARD 1 2 J70791210A P ANEL_FEEDER_ BOARD J70791210A 1…
Page
HANWHA TECHWIN
108
SLM120/110

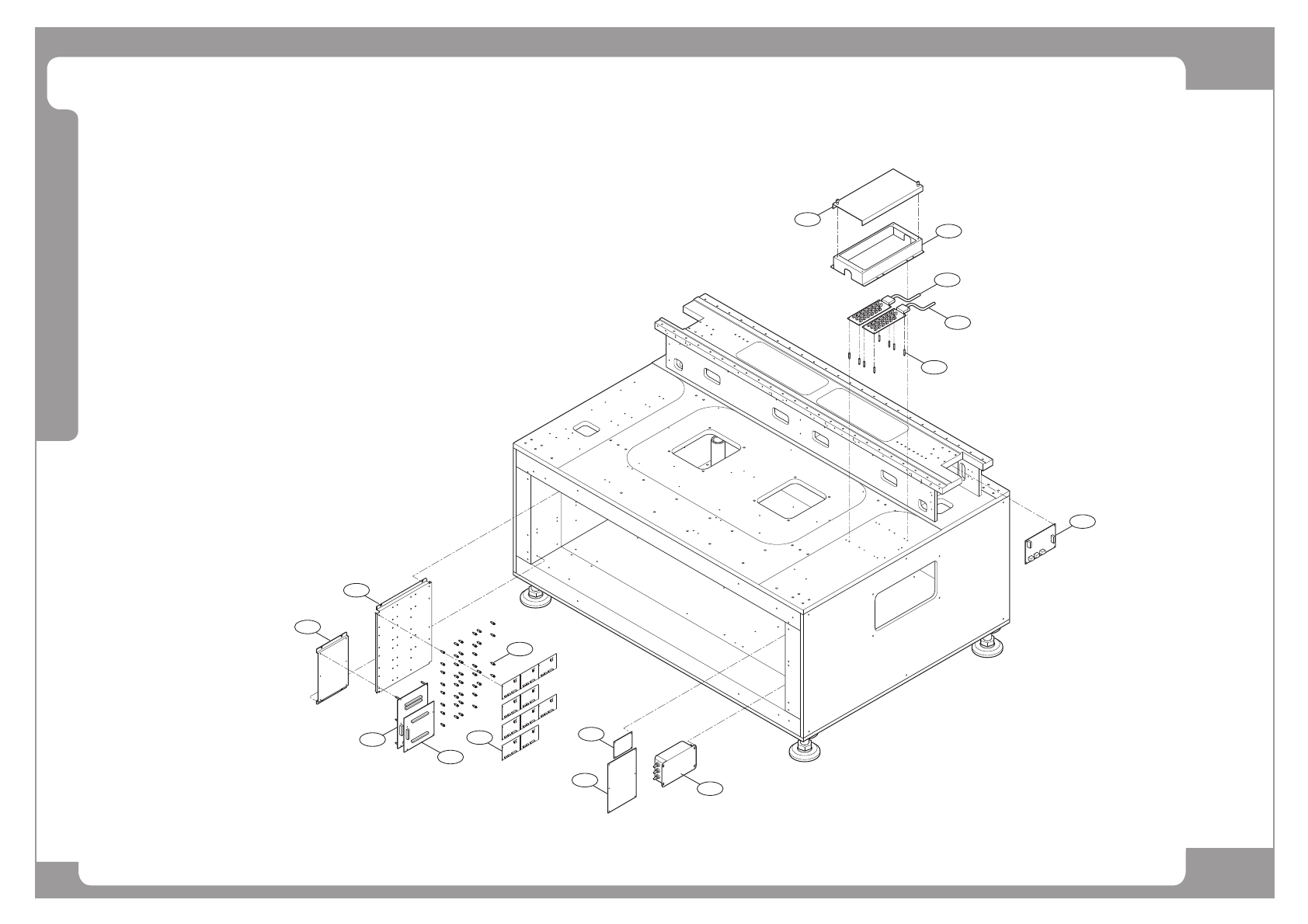

Electric Device Ass’y (2/2)
1
9
11
10
2
3
5
6
4
7
8
12
5
0
13
Page
HANWHA TECHWIN
109
SLM120/110
Electric Device Ass’y (2/2)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
1 J70791209A PANEL_STEP_BOARD 1
2 J70791210A PANEL_FEEDER_BOARD J70791210A 1
3 J70791241A COVER_SNS_BD_BASE 1
4 J70791264A COVER_SNS_BD_TOP_2 J70791264A 1
5 J90601048A SM431_CONVEYOR_SENSOR_IF_BOARD 2LAYER, 1 2
6 J91741332A AP5_AXIS_SENSOR_ASSY VER1.0 1
7 J91741165C FEEDER IO CDOCHING IO BD 1
8 J91741071A FEEDER_INPUT_EXT_BOARD VER 1.1 1
9 EP06-000374 SERVO CONTROL-DRIVE-MD5-SD075-B 10 EP06-000015(~#444)
10 J91741049B CAN CONVEYOR BD 2
11 J91741076A CONV_SUB_IF_BOARD VER 1.0 1
12 EP07-901542 NOISE FILTER 1
13 FC29-900610 Hex Support 40 FC29-900605
Page
HANWHA TECHWIN
110
SLM120/110
Electric Control Part
