Page HANWHA TECHWIN 127 SLM120/110 Feeder Board Interface 110 (3/4) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Su pply L T Reference 1 J90833585A F-FDR BASE BD CABLE ASSY SCM_FD007 1 2 J90834171A F_FDR_SOL_O…
Page
HANWHA TECHWIN
126
SLM120/110

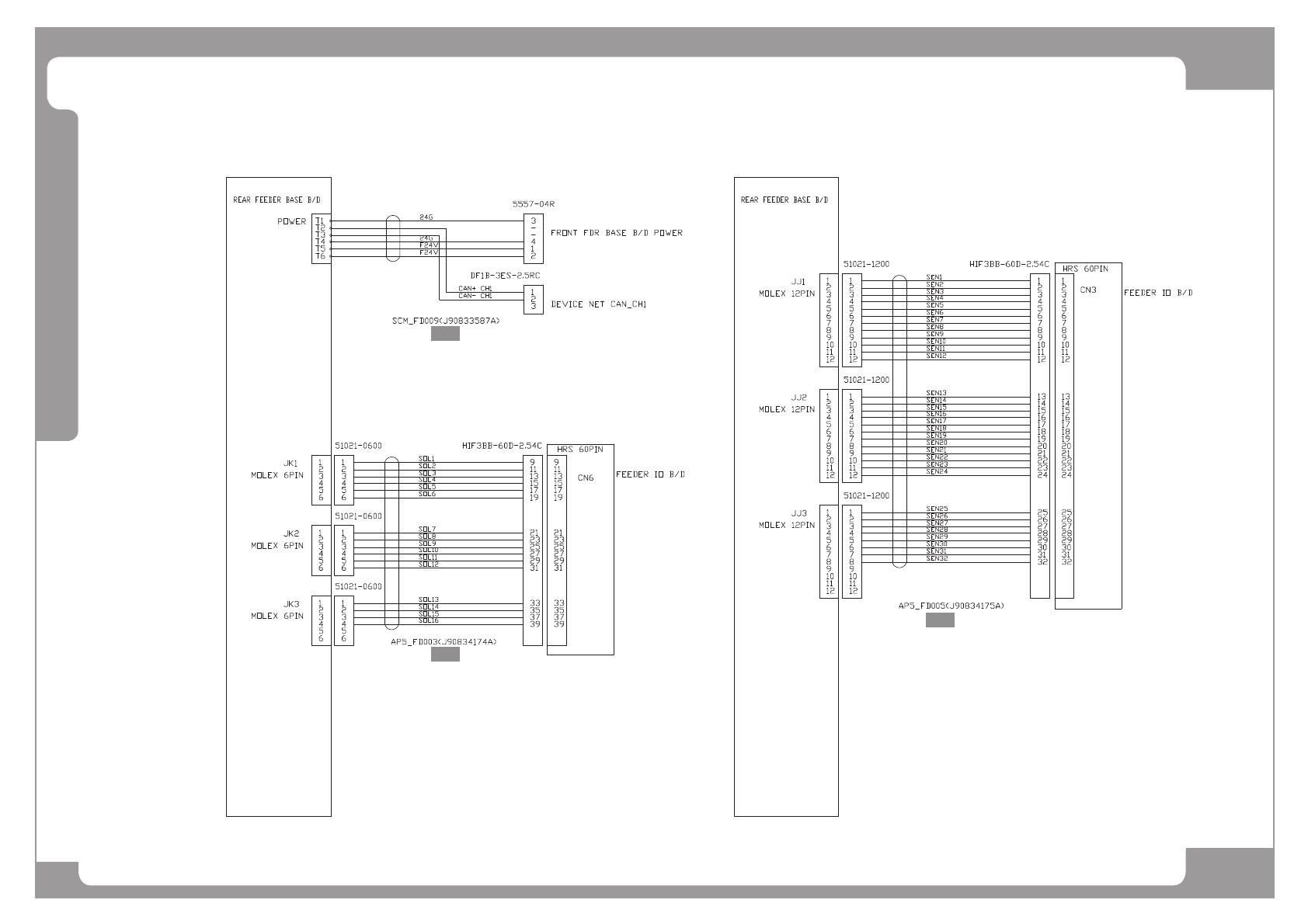

Feeder Board Interface 110 (3/4)
^4`
^5`
^6`
Page
HANWHA TECHWIN
127
SLM120/110

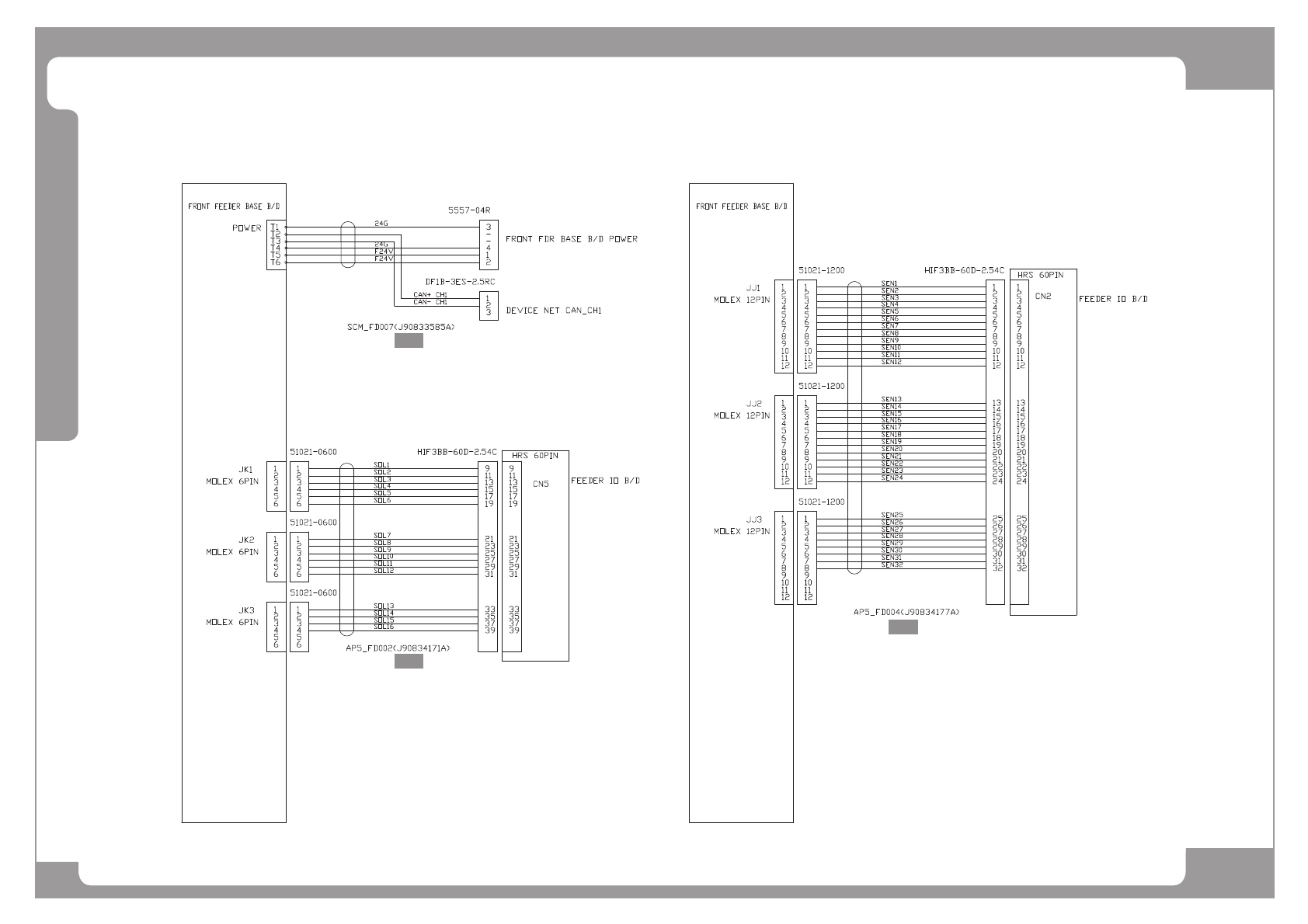

Feeder Board Interface 110 (3/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90833585A F-FDR BASE BD CABLE ASSY SCM_FD007 1
2 J90834171A F_FDR_SOL_OUTPUT_CABLE_ASSY AP5_FD002 1
3 J90834177A R_FDR_SENSOR_INPUT_CABLE_ASSY 1
4
5
6
7
8
9
