Page HANWHA TECHWIN 133 SLM120/110 Conveyor Board Interface 120 (2/7) NO. Lev . PA R T N O . P AR T NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-004236 A CABLE ASSY -FLA T_CABLE 1 2 J90834156 A HEAD1_AIR_SOL…
Page
HANWHA TECHWIN
132
SLM120/110

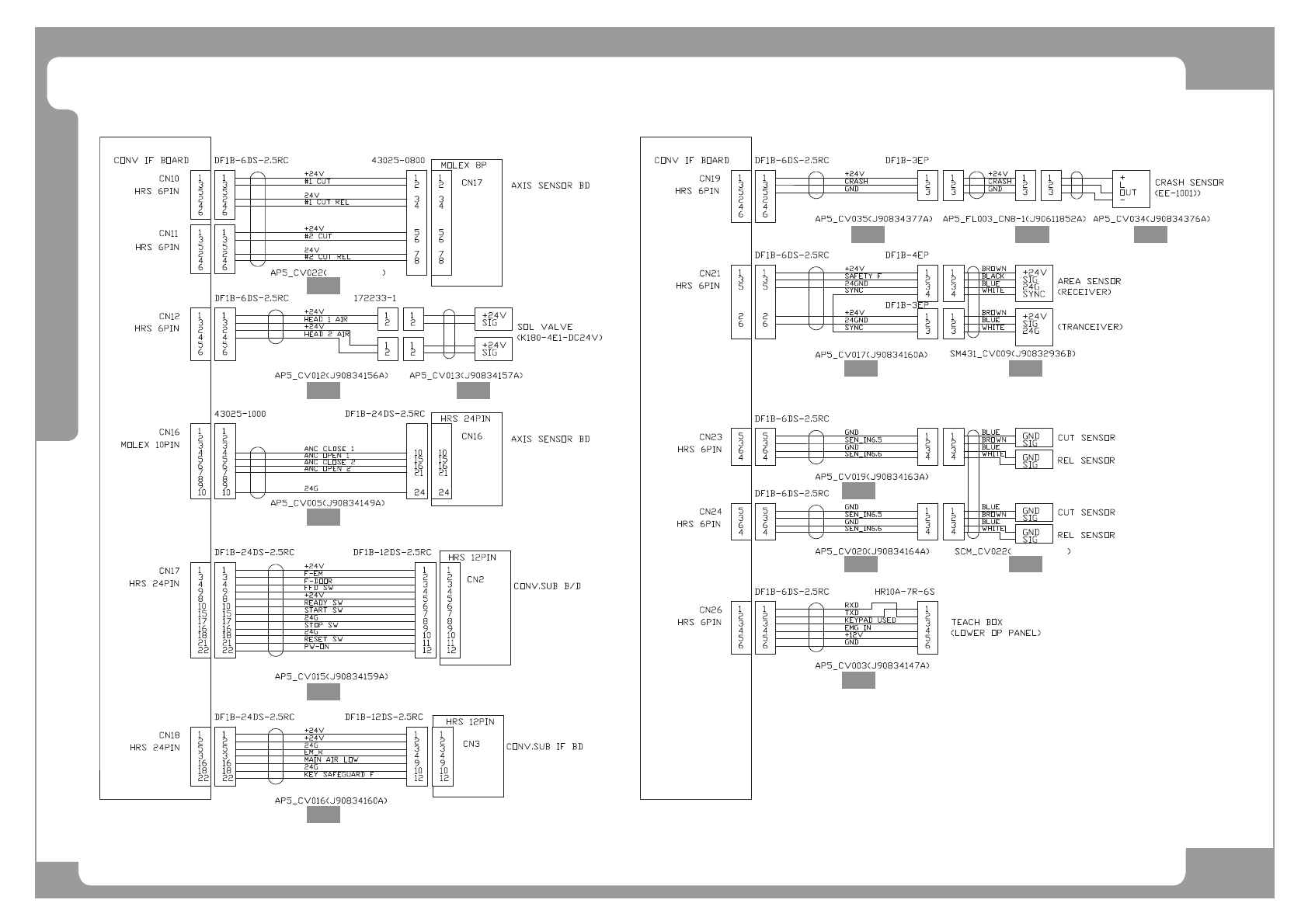

Conveyor Board Interface 120 (2/7)
AM03-004236A
AM03-004236A
^4`
^5` ^6`
^7`
^7`
^<` ^43`
^44`
^47`
^8`
^9`
^:`
^;`
^45`
^46`
$0$
Page
HANWHA TECHWIN
133
SLM120/110
Conveyor Board Interface 120 (2/7)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-004236A CABLE ASSY-FLAT_CABLE 1
2 J90834156A HEAD1_AIR_SOL_EXT_CABLE_ASSY AP5_CV012 1
3 J90834157A HEAD1_AIR_SOL_CABLE_ASSY AP5_CV013 1
4 AM03-013464B CONV_IF_BD_CN16_CABLE_ASSY AP5_CV005 2 J90834149A/013464A
5 J90834160A ROP_SW_INPUT_CABLE_ASSY AP5_CV016 1
6 J90834377A CRASH_SENSOR_EXT_CABLE_ASSY AP5_CV035 1
7 J90611852A FLAT_CABLE_ASSY AP5_FL003 1
8 J90834376A CRASH_SENSOR_CABLE_ASSY AP5_CV034 1
9 J90834160A ROP_SW_INPUT_CABLE_ASSY AP5_CV016 1
10 J90832936B FRONT_ARAE_SENSOR_CABLE_ASSY 1
11 J90834163A CUTTER_SEN_EXT_CABLE_ASSY_1 AP5_CV019 1
12 J90834164A CUTTER_SEN_EXT_CABLE_ASSY_2 AP5_CV020 1
13 AM03-000699A CUTTER_SENSOR_CABLE_ASSY SCM_CV022 1
14 J90834147A F_T_BOX_EXT_CABLE_ASSY AP5_CV003 1
Page
HANWHA TECHWIN
134
SLM120/110
Conveyor Board Interface 120 (3/7)
^4`
