Page HANWHA TECHWIN 5 SLM120/110 SO Optics Camera Ass'y NO. LEVEL P ART N O. P ART NAME Q'TY TYPE Old No. Sto ck Apply Reference A AM03-002130A ASSY ,OPTICS-SL M_BASLER_L1 K_2T AP_ASSY 1 AM03- 900155 1 J9185109…
Page
HANWHA TECHWIN
4
SLM120/110

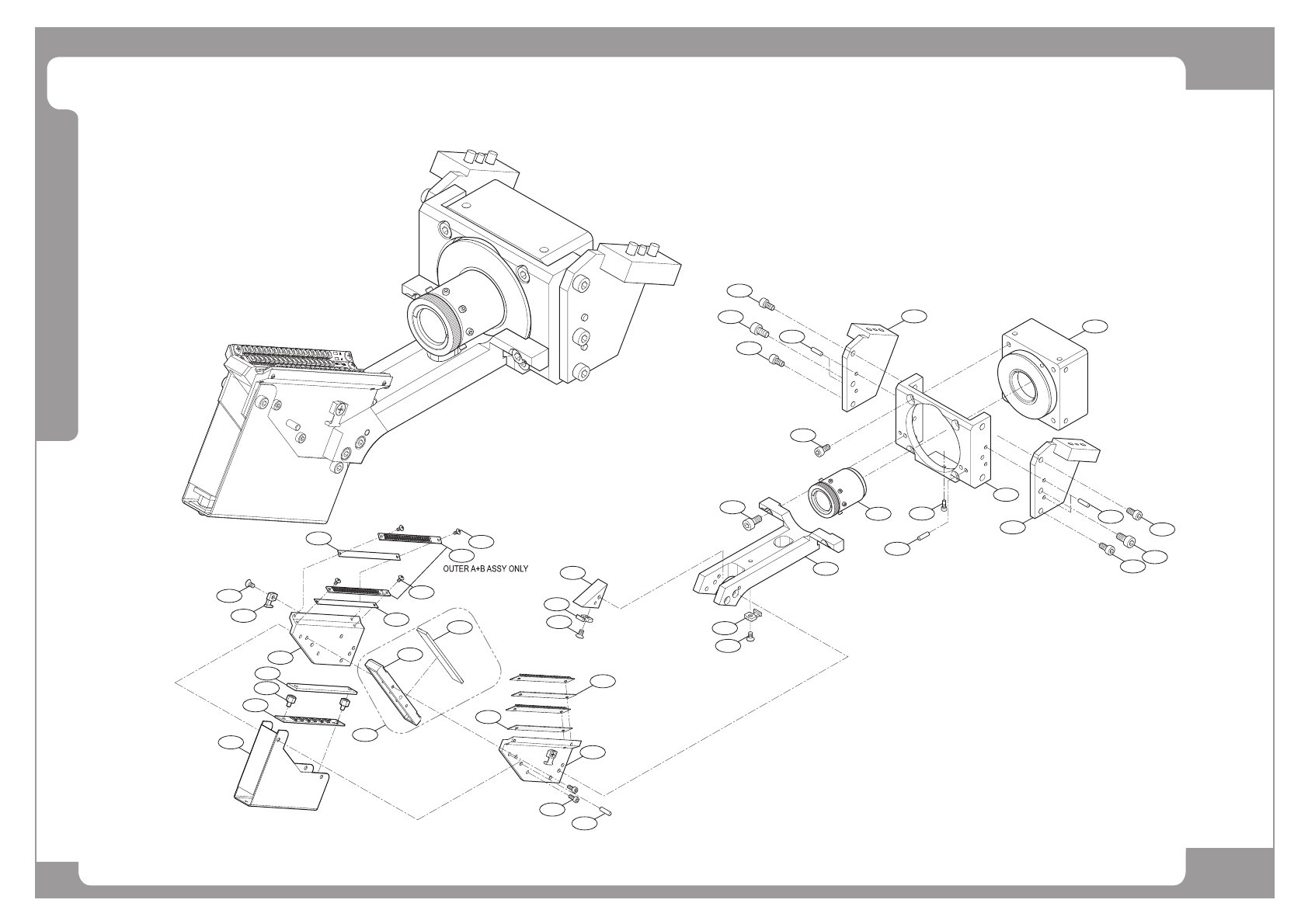

SO Optics Camera Ass'y
10
18
19
5
9
8
1
19
21
20
21
12
13
22
2
22
11
17
26
25
6
23
14
24
7
4
15
13
4-1
4-2
13
13
19
21
20
20
21
21
6
6
23
23
16
Page
HANWHA TECHWIN
5
SLM120/110
SO Optics Camera Ass'y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A AM03-002130A ASSY,OPTICS-SLM_BASLER_L1K_2TAP_ASSY 1 AM03-
900155
1 J91851097A AP5_07_FOV35_LENS_ASSY J91851097A 1
2 AM03-014097A ASSY,ELECTRIC-SLM_OUTER_A_B_PCB 1 OUTER A+B ASSY
4 AM03-002170A ASSY,OPTICS-SLM_MIRROR_ASSY
4-1 FC30-000354A PLATE-SLM_MIRROR_FIXED 1
4-2 FC30-000012A 1
5 PT02-900016 BASLER_L104K_CAMERA PT02-900016 1
6 FC18-903190 PROFILE MOUNT DIA4.0 4
7SHCS[M2.5*4] 4
8 J71801173A AP5_CAMERA_PLATE_BASLER J71801173A 1
9 J71801182A AP5_07_SIDE_CAMERA_PLATE_L J71801182A 1
10 J71801183A AP5_07_SIDE_CAMERA_PLATE_R J71801183A 1
11 J71801202A AP_07_SIDE_OUTER_ILLUM_PLATE J71801202A 1
12 J71801203A AP5_ILLUM_BAR_PLATE J71801203A 1
13 FC36-000013A SHEET-SLM_SO_OUTER_INSULATION 4 J72801047A
14 FC09-000660A BRACKET-SLM_MIRROR_ILLUM_LEFT_PLATE_RE 1 J71621038A
15 FC09-000659A BRACKET-SLM_MIRROR_ILLUM_RIGHT_PLATE_R 1 J71801201A
16 FC15-000455A COVER-SO_OPTICS_COVER 1
17 AM16-001081A ASSY,CABLE-COAX_PCB 1
18 M3*4 1
19 FC18-901308 DOWEL PIN [DIA3*10] 6
20 M4*10 2
21 SHCS[M4*8] 8
22 TRUSS SCREW[M2*4] 4
23 FHCS[M3*6] 2
Page
HANWHA TECHWIN
6
SLM120/110
SO Optics Camera Ass'y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
24 FC18-901189
25 FC29-900610 HEX SUPPORT 2
26 RM03-000018A PLASTICS-SLM_COAXIAL_DIFFUSER 1
