Page HANWHA TECHWIN 164 SLM120/110 AXIO Board Interface (3/8) ^4` ^5` ^6` ^7`
Page
HANWHA TECHWIN
163
SLM120/110
AXIO Board Interface (2/8)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834094A FRONT_AXIS_SENSOR_CABLE_ASSY AP5_AX004 1
2 J90834323A Y1_DRV_CN1_CABLE_ASSY AP5_VM001 1
3 J90834324A Y2_DRV_CN1_CABLE_ASS AP5_VM002 1
Page
HANWHA TECHWIN
164
SLM120/110
AXIO Board Interface (3/8)
^4`
^5`
^6`
^7`
Page
HANWHA TECHWIN
165
SLM120/110

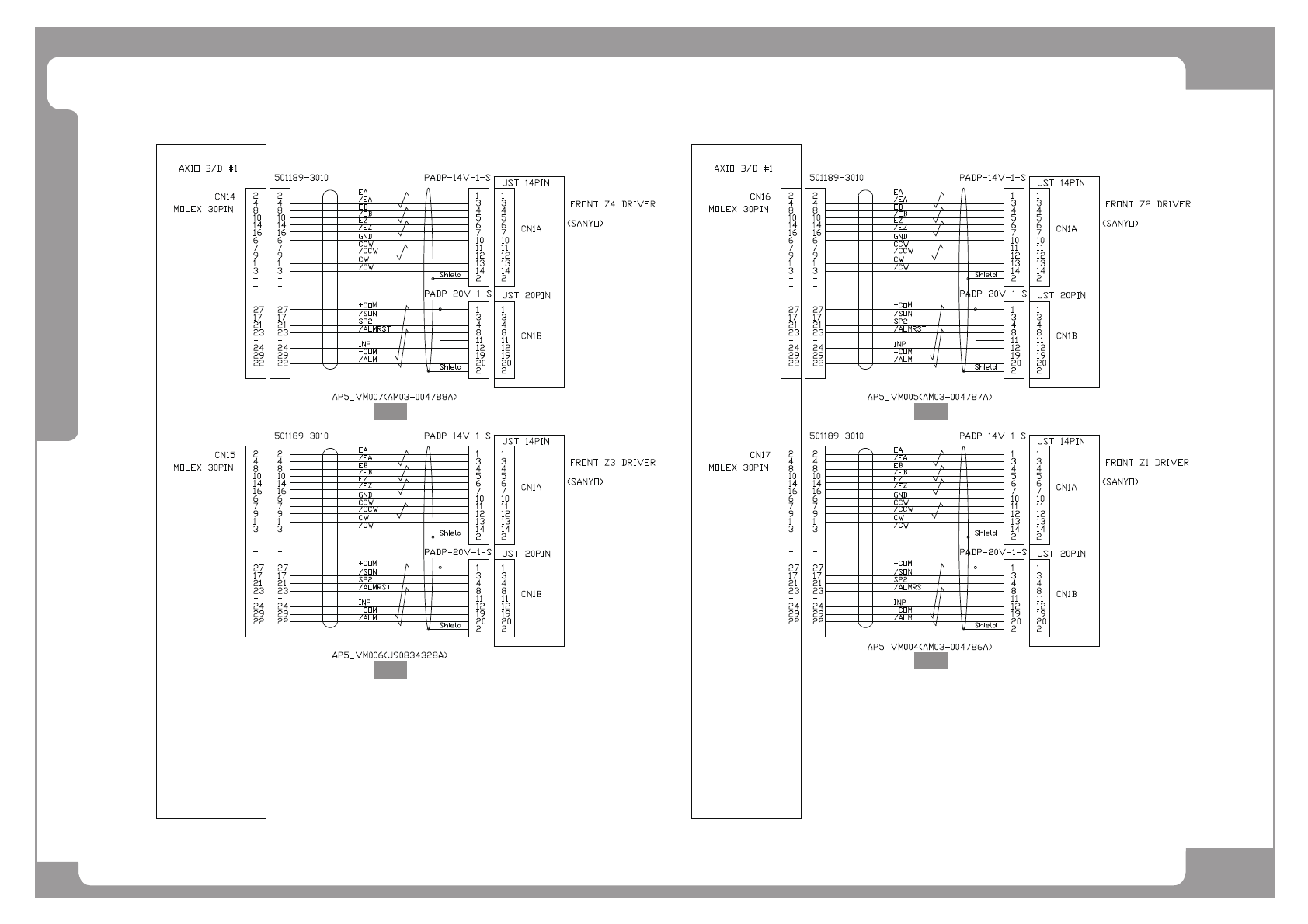

AXIO Board Interface (3/8)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-004788A CABLE ASSY-FZ4_DRV_CN1A_CN1B_CABLE_ASSY 1
2 J90834328A FZ3_DRV_CN1A_CN1B_CABLE_ASSY AP5_VM006 1
3 AM03-004787A CABLE ASSY-FZ2_DRV_CN1A_CN1B_CABLE_ASSY 1
4 AM03-004786A CABLE ASSY-FZ1_DRV_CN1A_CN1B_CABLE_ASSY
