Page HANWHA TECHWIN 169 SLM120/110 AXIO Board Interface (5/8) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 J90834315A SC_CN23_AXIO_2_PWR_CABLE_ASSY A P5_SC008 1 2 AM03-01345 8B AXIO_2…
Page
HANWHA TECHWIN
168
SLM120/110

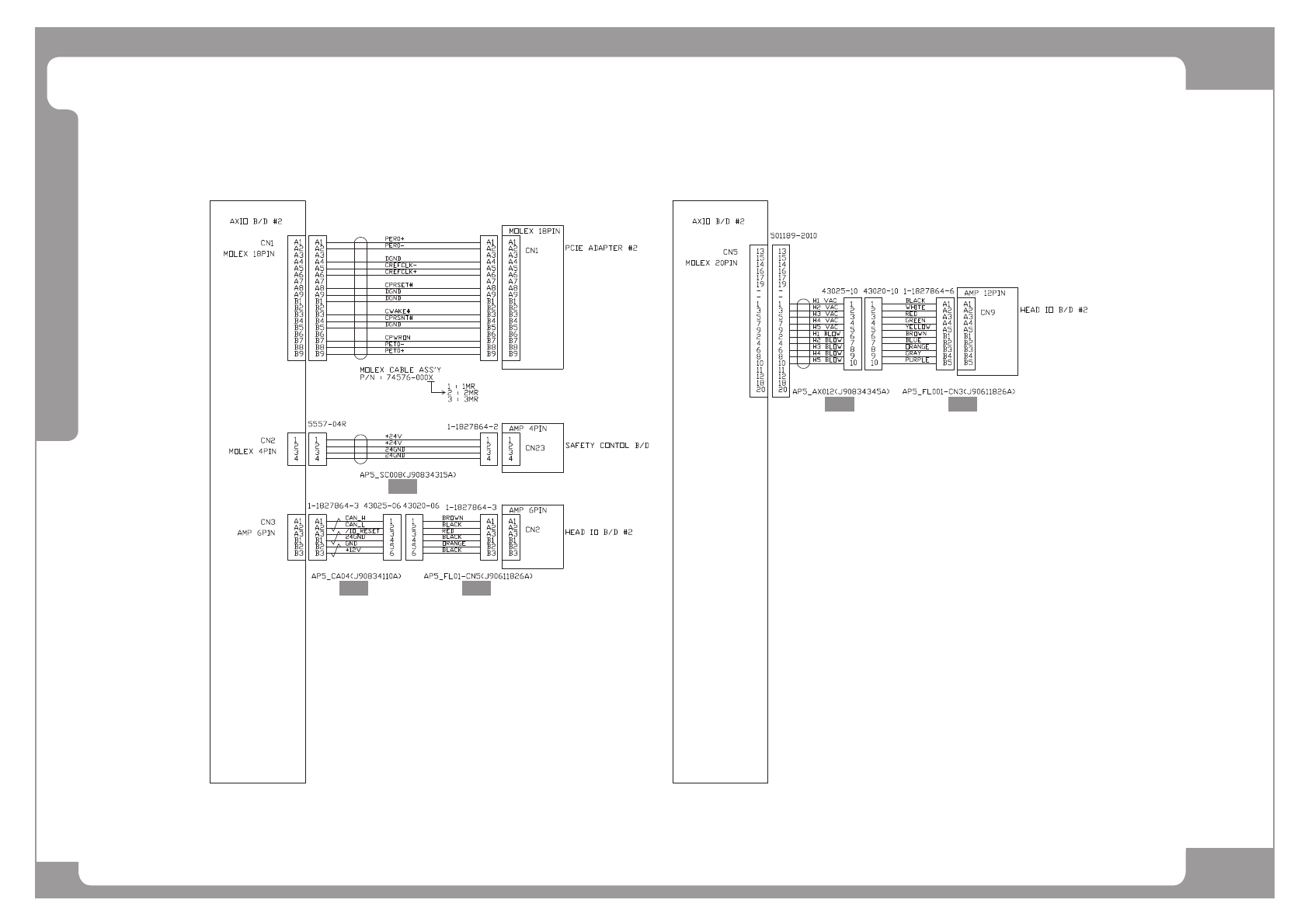

AXIO Board Interface (5/8)
^4`
^5` ^6`
^7` ^8`
Page
HANWHA TECHWIN
169
SLM120/110
AXIO Board Interface (5/8)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834315A SC_CN23_AXIO_2_PWR_CABLE_ASSY AP5_SC008 1
2 AM03-013458B AXIO_2_HEAD_2_CAN_CABLE_ASSY AP5_CA004 1 J90834110A/AM03-013458A
3 J90611826A FLAT_CABLE_ASSY AP5_FL001 1
4 J90834345A R_VAC_BLOW_SENSOR_CABLE_ASSY AP5_AX012 1
5 J90611826A FLAT_CABLE_ASSY AP5_FL001 1
Page
HANWHA TECHWIN
170
SLM120/110

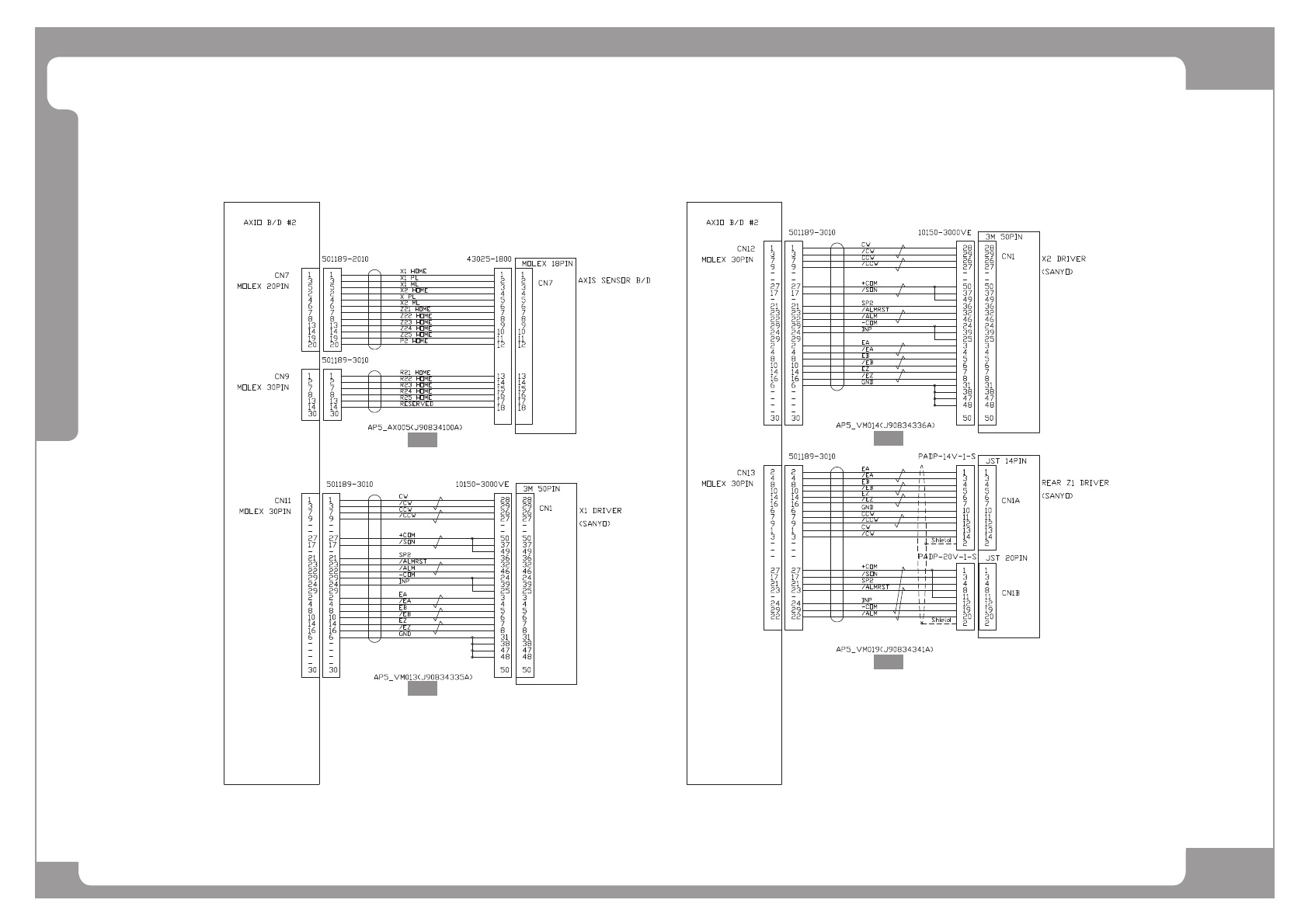

AXIO Board Interface (6/8)
^4`
^5`
^6`
^7`
