Page HANWHA TECHWIN 171 SLM120/110 AXIO Board Interface (6/8) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Su pply L T Reference 1 J90834100 A REAR_AXIS_SE NSOR_CABLE_ASSY AP5_AX005 1 2 J90834335A X1_DRV_CN1_C…
Page
HANWHA TECHWIN
170
SLM120/110

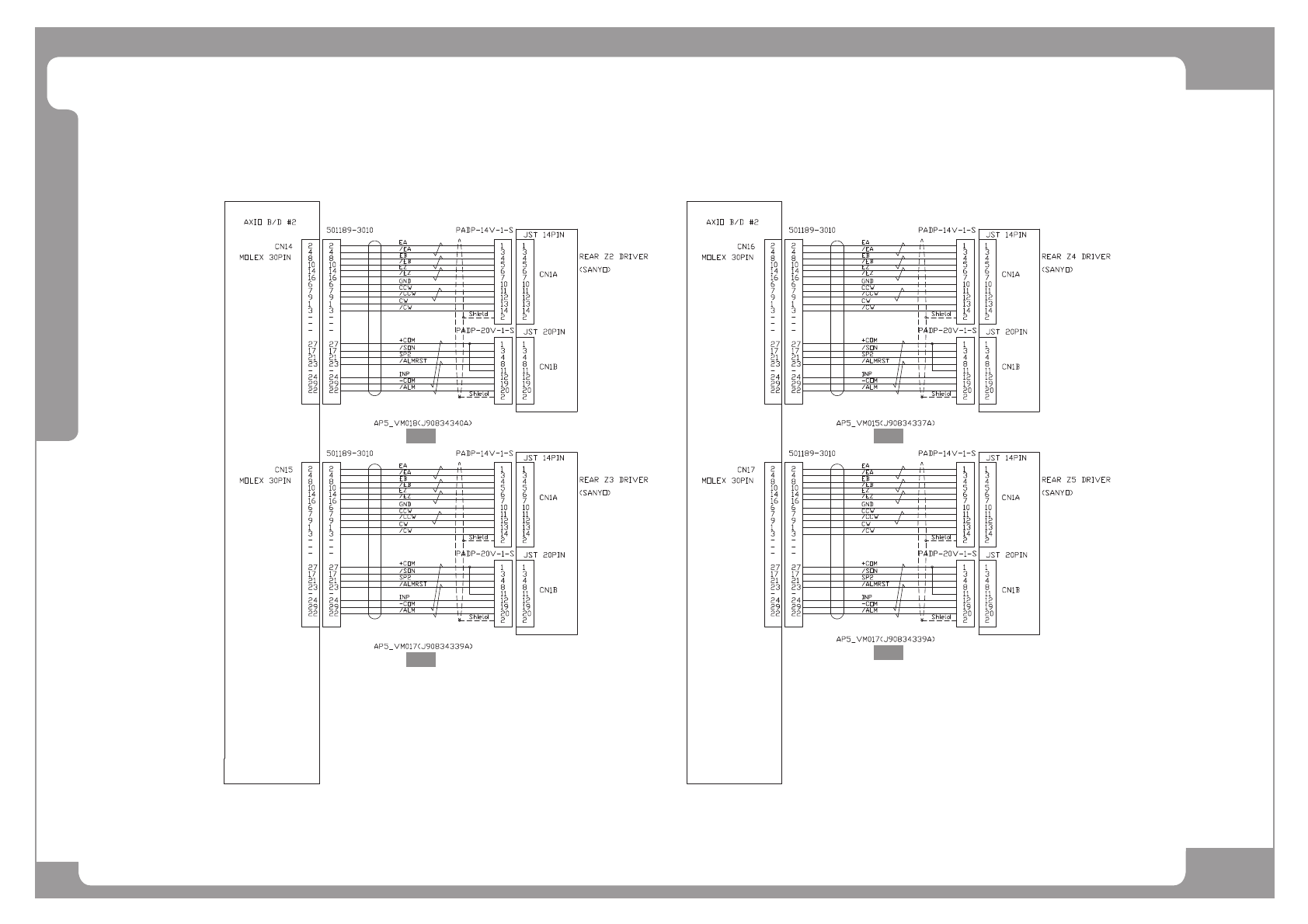

AXIO Board Interface (6/8)
^4`
^5`
^6`
^7`
Page
HANWHA TECHWIN
171
SLM120/110
AXIO Board Interface (6/8)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834100A REAR_AXIS_SENSOR_CABLE_ASSY AP5_AX005 1
2 J90834335A X1_DRV_CN1_CABLE_ASSY AP5_VM013 1
3 J90834336A X2_DRV_CN1_CABLE_ASSY AP5_VM014 1
4 J90834341A RZ5_DRV_CN1A_CN1B_CABLE_ASSY AP5_VM019 1
Page
HANWHA TECHWIN
172
SLM120/110
AXIO Board Interface (7/8)
^4`
^5`
^6`
^5`
