Page HANWHA TECHWIN 190 SLM120/110 Head IF Board Interface 120 (2/4) ^4` ^5` ^6` ^7` ^8` ^9`
Page
HANWHA TECHWIN
189
SLM120/110
Head IF Board Interface 120 (1/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-013472B CONV_HEAD_1_CAN_CABLE_ASSY AP5_CA003 1 J90834109A/AM03-013472A
2 AM03-013461B HEAD_MOTOR_IF_BD_1_PW_CABLE_ASSY 1 J90834316A/AM03-013461A
3 J90834356A HEAD_OVER_BLOW_SOL_CABLE_ASSY 1
4 J90834350A HEAD_VAC_CABLE_ASSY AP5_HD001 1
5 J90834351A HEAD_VACCUM_SOL_CABLE_ASSY AP5_HD002 1
6 J90834352A HEAD_BLOW_SOL_CABLE_ASSY AP5_HD003 1
7 AM03-004987A CABLE ASSY-FL002-1_FLAT_CABLE_ASSY 1
Page
HANWHA TECHWIN
190
SLM120/110
Head IF Board Interface 120 (2/4)
^4`
^5`
^6`
^7`
^8` ^9`
Page
HANWHA TECHWIN
191
SLM120/110

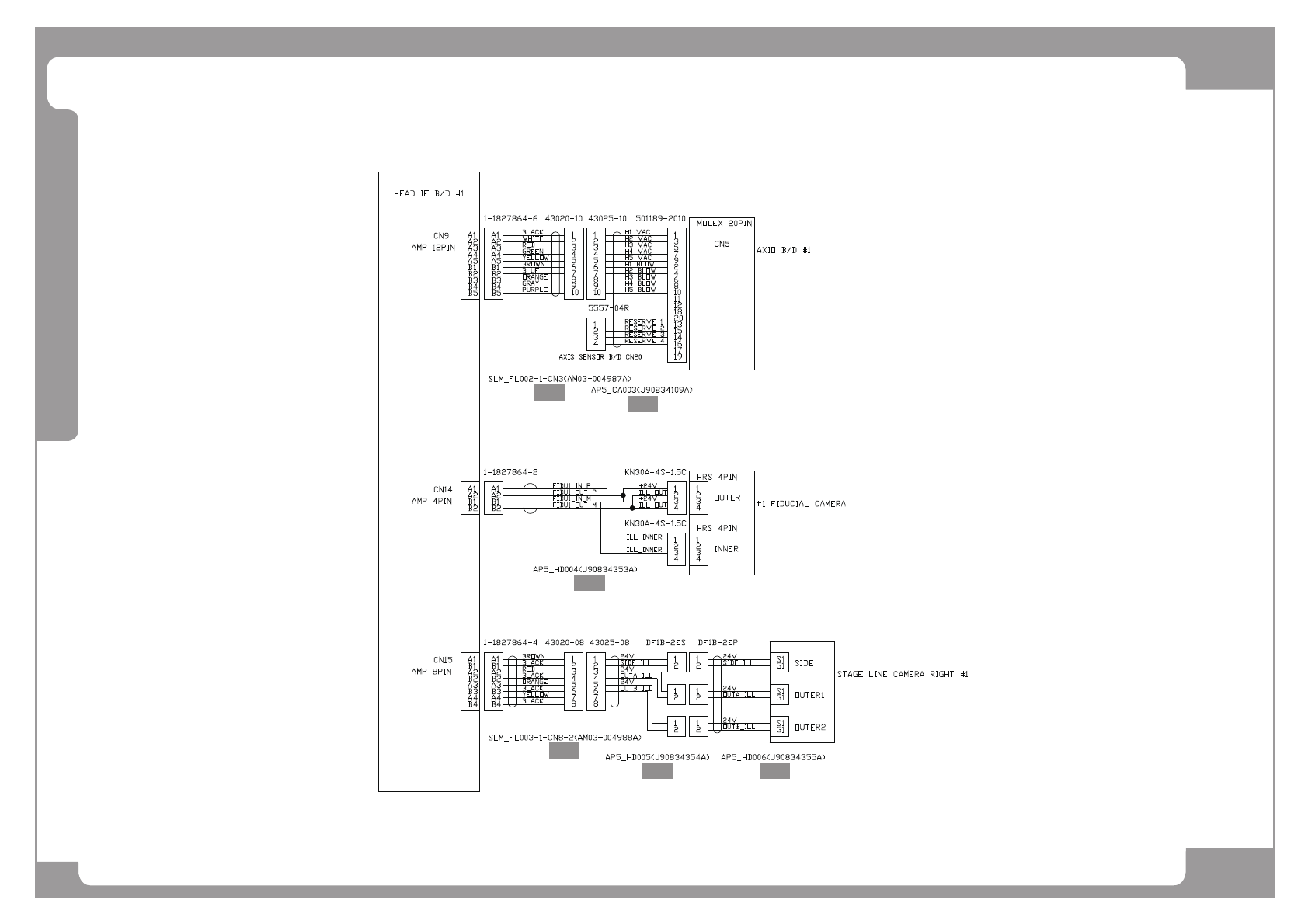

Head IF Board Interface 120 (2/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-004987A CABLE ASSY-FL002-1_FLAT_CABLE_ASSY 1
2 AM03-013472B CONV_HEAD_1_CAN_CABLE_ASSY AP5_CA003 1 J90834109A/AM03-013472A
3 J90834353A FID_ILL_CABLE_ASSY AP5_HD004 1
4 AM03-004988A CABLE ASSY-FL003-1_FLAT_CABLE_ASSY 1
5 J90834354A LSC_ILL_EXT_CABLE_ASSY AP5_HD005 1
6 J90834355A LSC_ILL_CABLE_ASSY AP5_HD006 1
