Page HANWHA TECHWIN 193 SLM120/110 Head IF Board Interface 120 (3/4) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-01345 8B AXIO_2_HEAD_2_CA N_CABLE_ASSY AP 5_CA004 1 J908341 10A/…
Page
HANWHA TECHWIN
192
SLM120/110

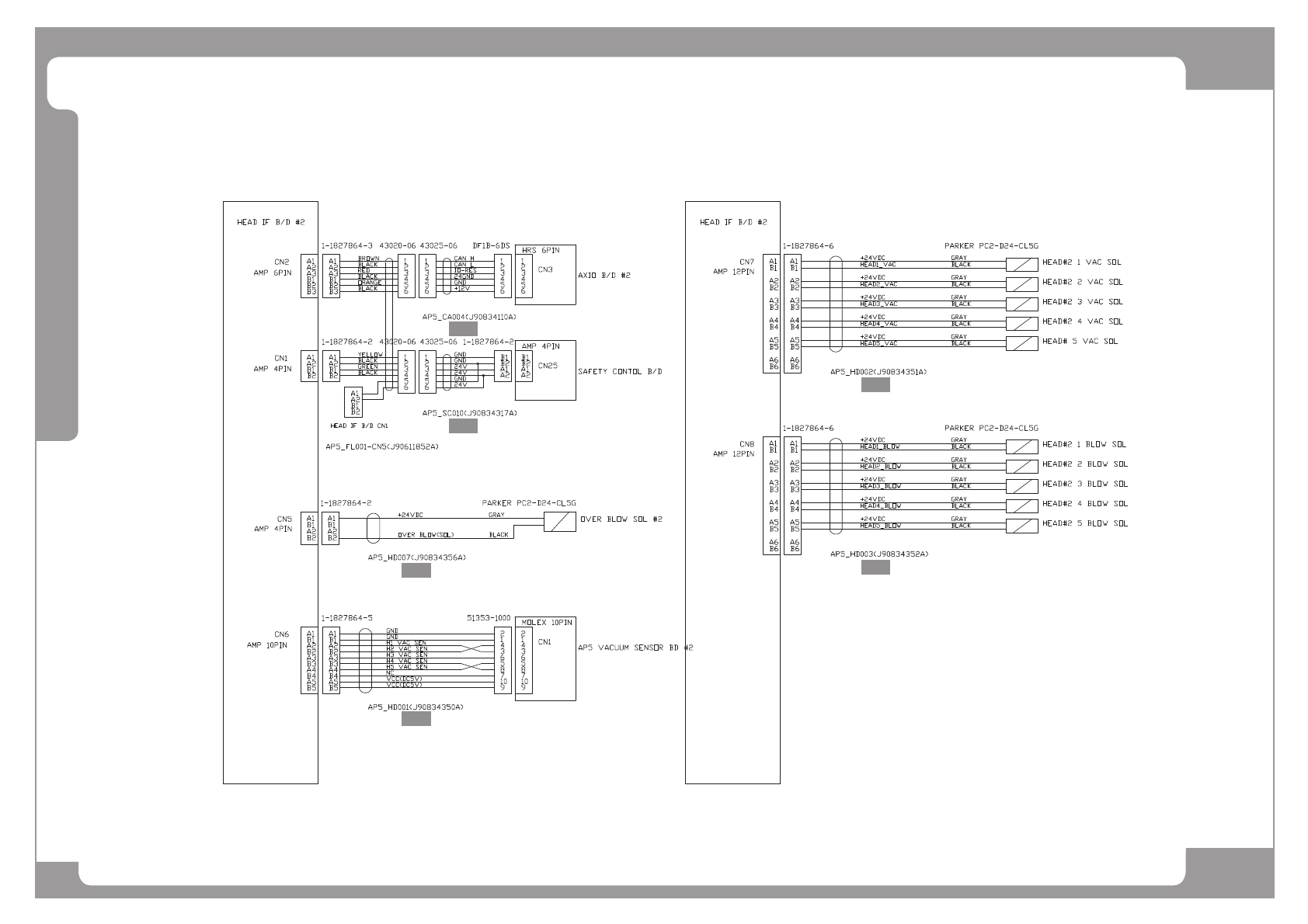

Head IF Board Interface 120 (3/4)
^4`
^5`
^6`
^7`
^8`
^9`
Page
HANWHA TECHWIN
193
SLM120/110
Head IF Board Interface 120 (3/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-013458B AXIO_2_HEAD_2_CAN_CABLE_ASSY AP5_CA004 1 J90834110A/AM03-013458A
2 AM03-013462B HEAD_MOTOR_IF_BD_2_PW_CABLE_ASSY 1 J90834317A/AM03-013462A
3 J90834356A HEAD_OVER_BLOW_SOL_CABLE_ASSY 1
4 J90834350A HEAD_VAC_CABLE_ASSY AP5_HD001 1
5 J90834351A HEAD_VACCUM_SOL_CABLE_ASSY AP5_HD002 1
6 J90834352A HEAD_BLOW_SOL_CABLE_ASSY AP5_HD003 1
Page
HANWHA TECHWIN
194
SLM120/110

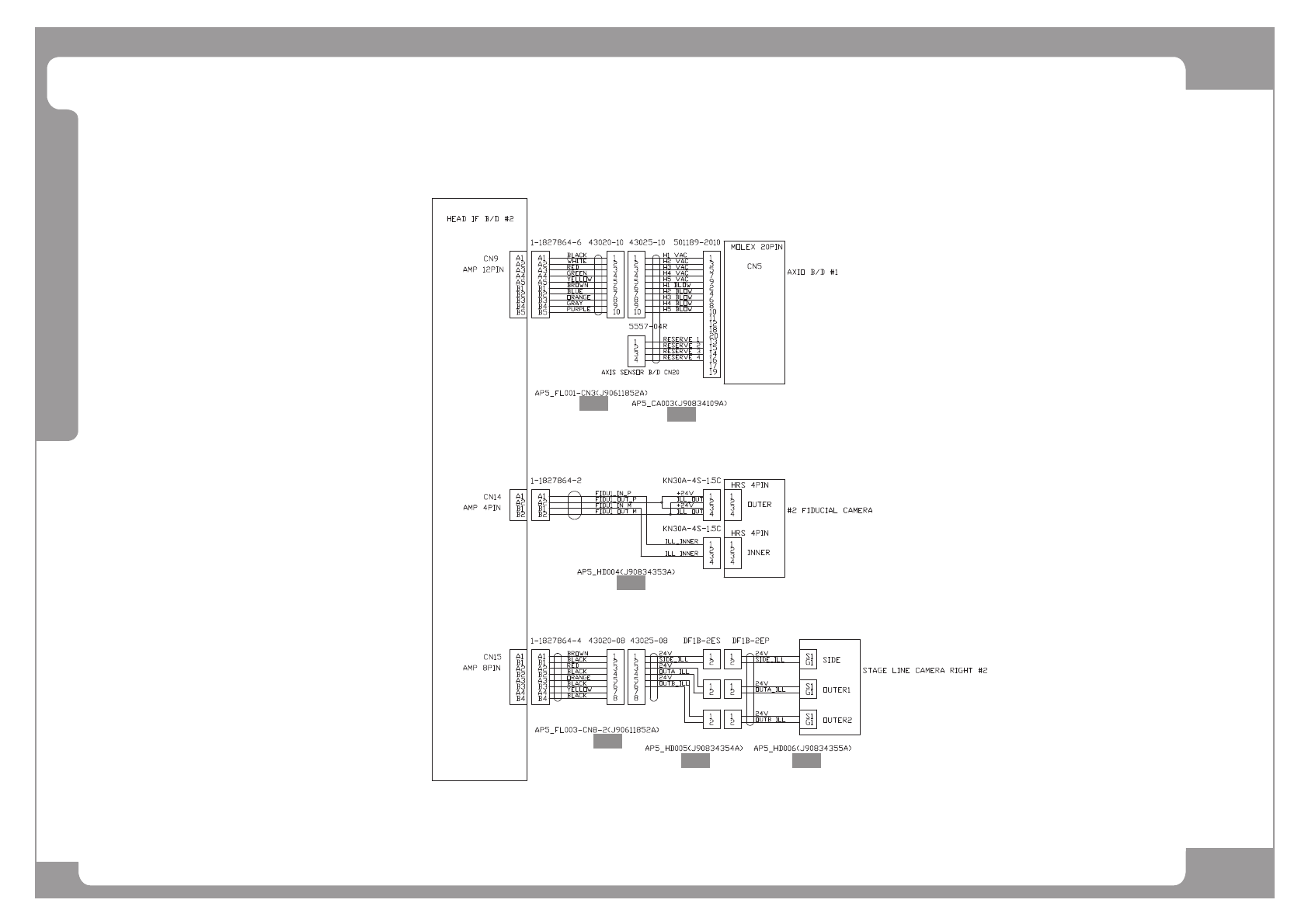

Head IF Board Interface 120 (4/4)
^4`
^5`
^6`
^4`
^7` ^8`
