Page HANWHA TECHWIN 9 SLM120/110 Feeder Base Ass’y No. LEVEL PA R T N o . P ART NAME Q'TY TYPE Old No. Sto ck Apply Reference A J90571 071A FEEDER_BA SE_ASSY 1 1 FC14-00 0876 COUPLER 16 HP06-900169 2 J70571 024A BOD…
Page
HANWHA TECHWIN
8
SLM120/110

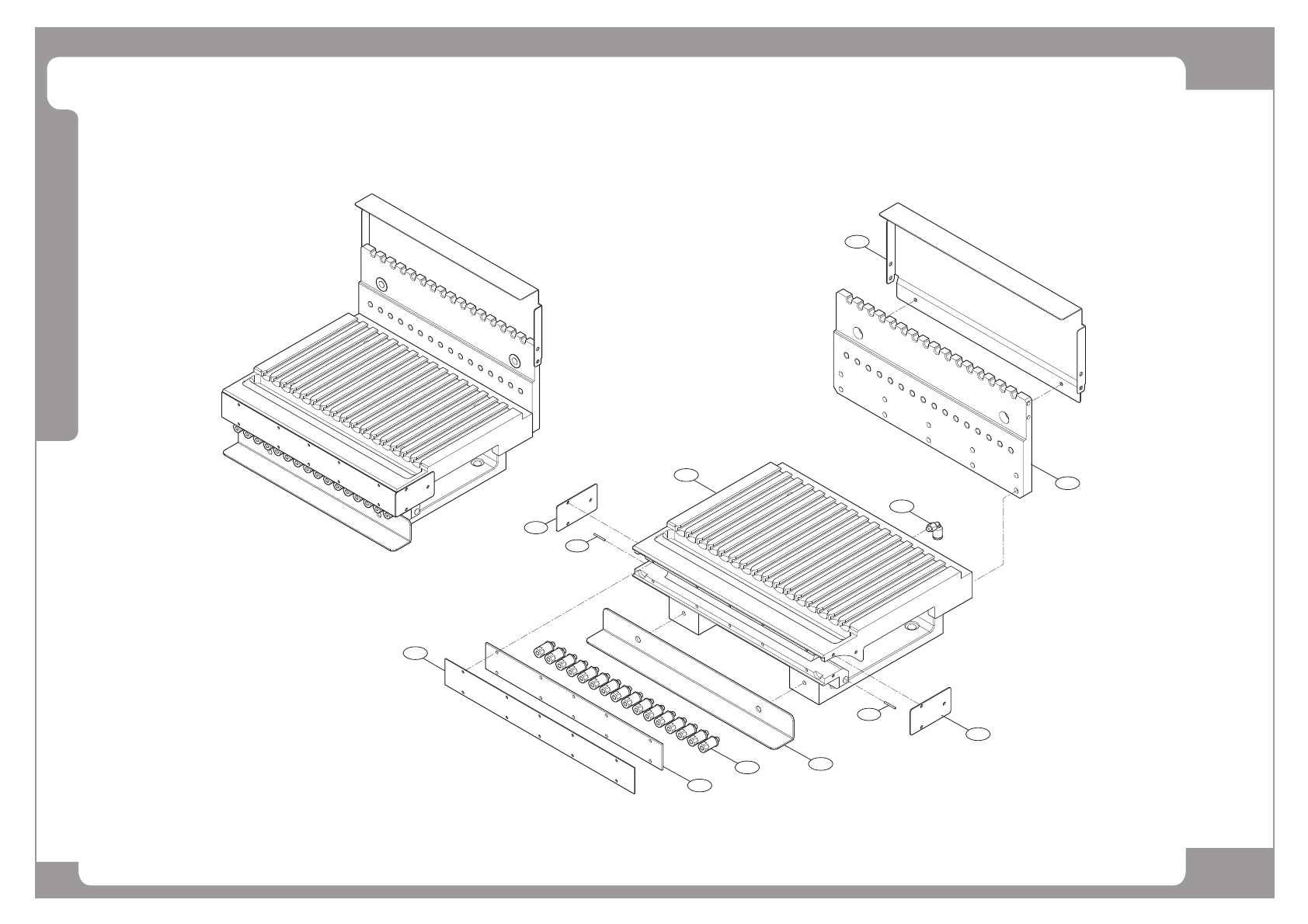

Feeder Base Ass'y
2
5
3
6
4
8
7
9
1
8
11
11
Page
HANWHA TECHWIN
9
SLM120/110
Feeder Base Ass’y
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A J90571071A FEEDER_BASE_ASSY 1
1 FC14-000876 COUPLER 16 HP06-900169
2 J70571024A BODY_FEEDER_BASE J70571024A 1
3 FC15-000121B COVER-FEEDER_BASE_TOP_PLATE 1 J70571057A
4 J70571058A VERTICAL_PLATE J70571058A 1
5 HP06-900027 FITTING [KQ2L04-M5/PL4-M5M/SQL04-M5] 1
6 J41041067A SCM_FEEDER_BASE_COVER J41041067A 1
7 J70571059A FB_FRONT_COVER J70571059A 1
8 FC15-003011A SIDE CABLE COVER-FB[J7057213A] 2 J7057213A
9 J91741280A SCM_FEEDER_BASE_ASSY REV 1.0 1
Page
HANWHA TECHWIN
10
SLM120/110

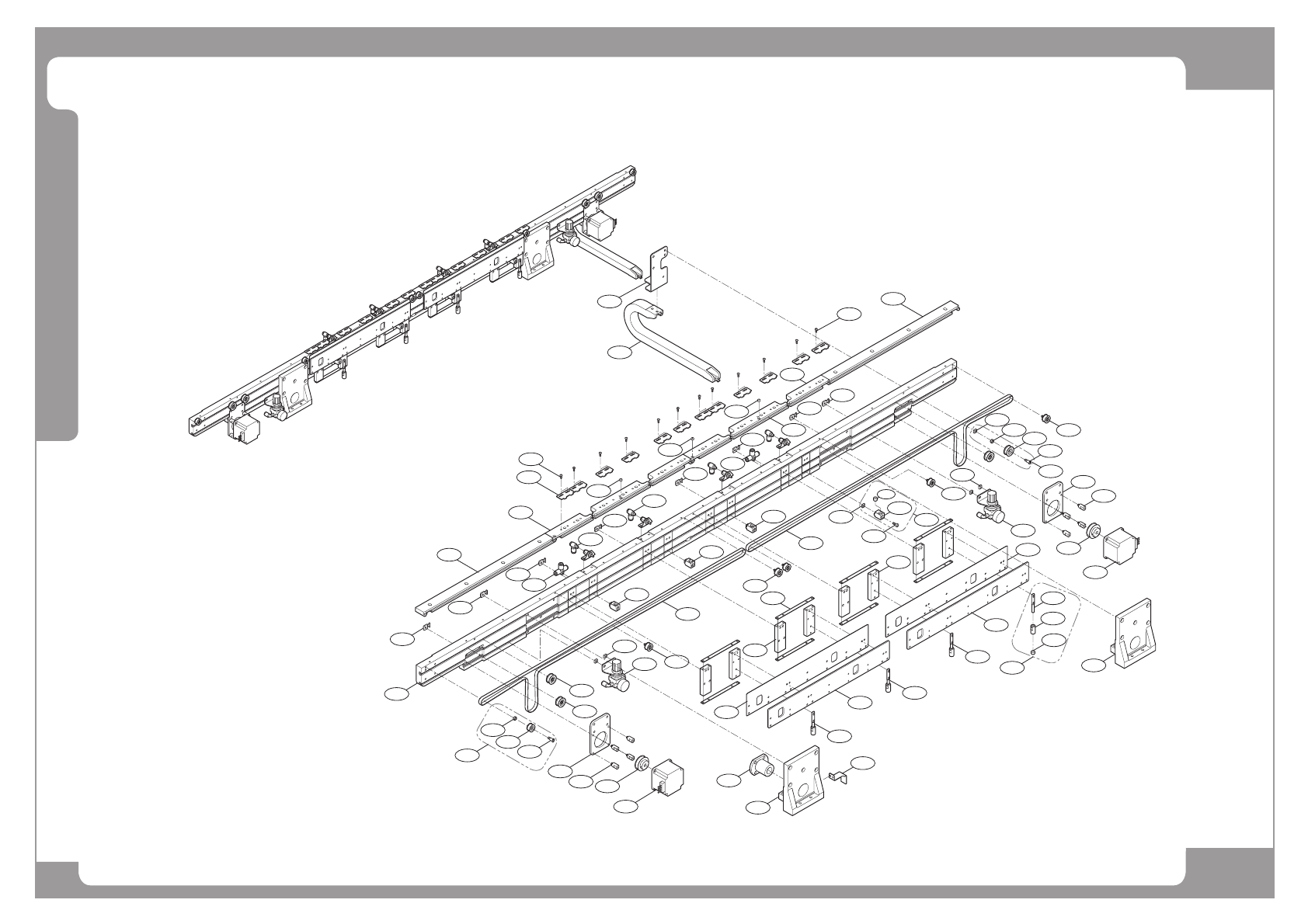

Conveyor Ass’y (1/5)
30
21
3
31
7
20
18
6
3
37
37
35
35
35
35
35
29
39
A
A
A
19
14
13
17
16
32
27
6
36
24
23
11
2
2
2
B
33
33
34
15
15
35
35
35
1
5
B
8
12
26
25
10
D
17
14
13
25
10
4
B
C
C
4
36
B
B
A
22
28
28
D
C
D
D
5
9
6
12
40
6
