SLM110_120_TRM(Ver7.1_CS16.26) - 第211页
Page HANWHA TECHWIN 199 SLM120/110 Head IF Board Interface 110 (2/2) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Su pply L T Reference 1 J9061 1852A FL A T_ CABLE_ASSY AP 5_FL003 2 2 AM03-013472 B CONV_HEAD_1…
Page
HANWHA TECHWIN
198
SLM120/110
Head IF Board Interface 110 (2/2)
^4`
^5`
^6`
^4`
^7` ^8`
Page
HANWHA TECHWIN
199
SLM120/110
Head IF Board Interface 110 (2/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90611852A FLAT_CABLE_ASSY AP5_FL003 2
2 AM03-013472B CONV_HEAD_1_CAN_CABLE_ASSY AP5_CA003 1 J90834109A/AM03-013472A
3 J90834353A FID_ILL_CABLE_ASSY AP5_HD004 1
4 J90834354A LSC_ILL_EXT_CABLE_ASSY AP5_HD005 1
5 J90834355A LSC_ILL_CABLE_ASSY AP5_HD006 1
Page
HANWHA TECHWIN
200
SLM120/110

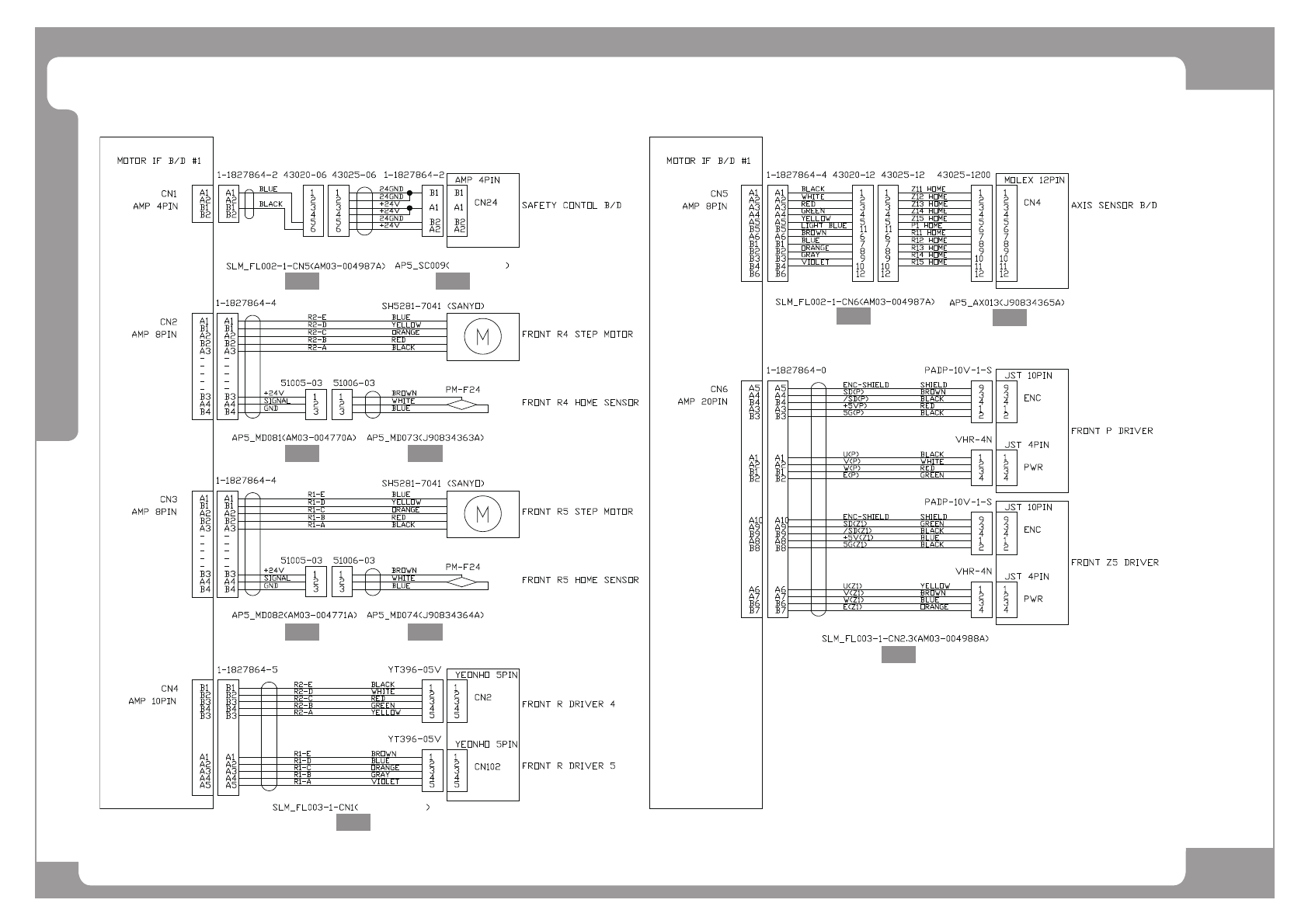

Motor IF Board Interface 120 (1/8)
^4`
^5`
^6` ^7`
^:`
^8`
^4`
^;`
^9`
^:`
J90834365A
J90834317A
