Page HANWHA TECHWIN 204 SLM120/110 Motor IF Board Interface 120 (3/8) ^4` ^5` ^6` ^7` ^8` ^9` ^:` ^;` ^<` ^43`

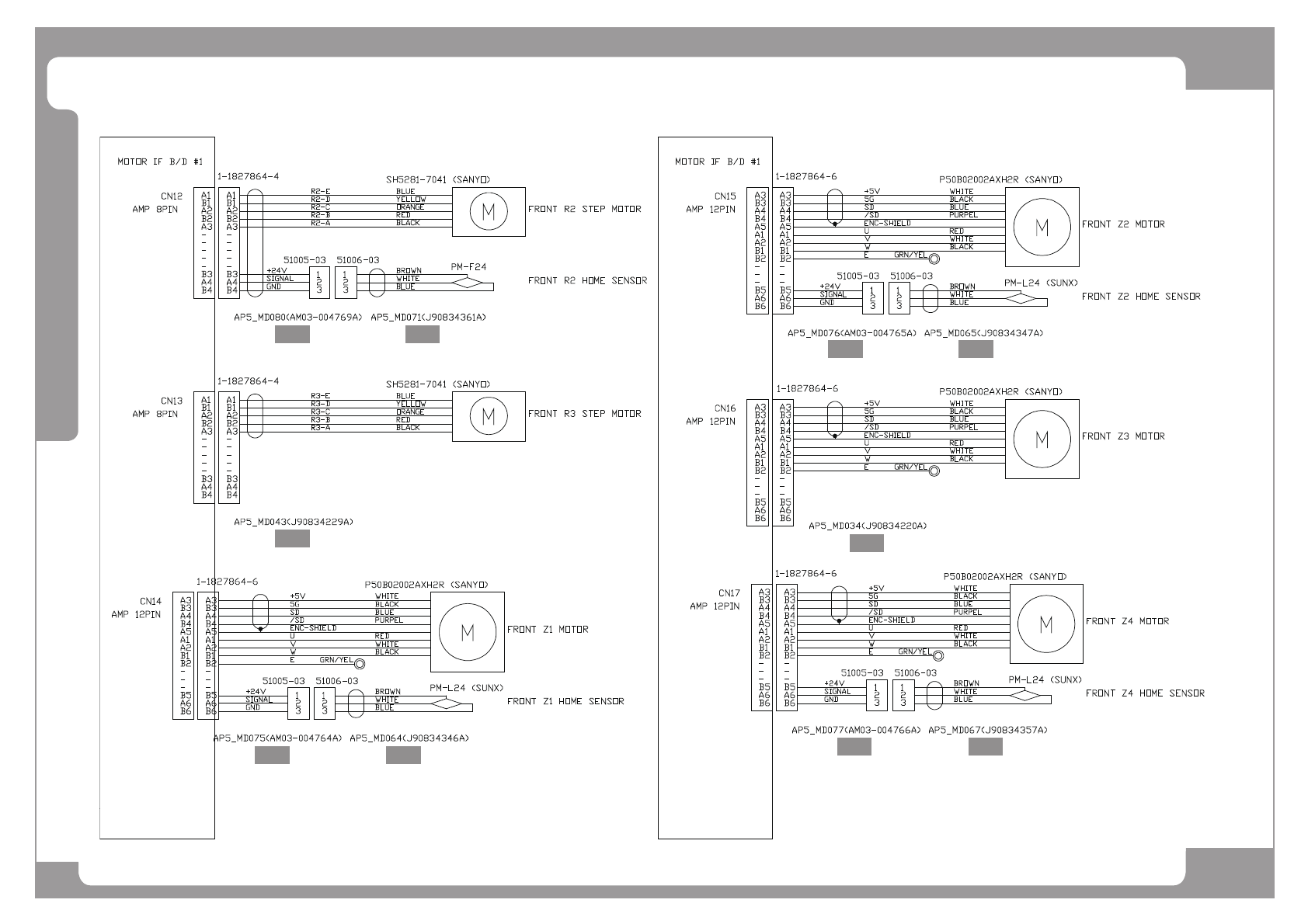

Page
HANWHA TECHWIN
203
SLM120/110
Motor IF Board Interface 120 (2/8)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-004988A CABLE ASSY-FL003-1_FLAT_CABLE_ASSY 2
2 AM03-004987A CABLE ASSY-FL002-1_FLAT_CABLE_ASSY 2
3 AM03-004784A CABLE ASSY-FR23_STEP_MOT_PWR_EXT_CABLE_ 1
4 AM03-004783A CABLE ASSY-FR1_STEP_MOT_PWR_EXT_CABLE_A 1
5 AM03-004768A CABLE ASSY-LEFT_R1_MOTOR 1
6 J90834360A HEAD_R1_HOME_CABLE_ASSY AP5_MD070 1
Page
HANWHA TECHWIN
204
SLM120/110
Motor IF Board Interface 120 (3/8)
^4`
^5`
^6`
^7` ^8`
^9`
^:`
^;`
^<` ^43`
Page
HANWHA TECHWIN
205
SLM120/110
Motor IF Board Interface 120 (3/8)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-004769A CABLE ASSY-LEFT_R2_MOTOR 1
2 J90834361A HEAD_R2_HOME_CABLE_ASSY AP5_MD071 1
3 J90834229A R3_MOTOR_CABLE_ASSY AP5_MD043 1
4 AM03-004764A CABLE ASSY-LEFT_Z1_MOTOR 1
5 J90834346A HEAD_Z1_HOME_SENSOR_CABLE_ASSY 1
6 AM03-004765A CABLE ASSY-LEFT_Z2_MOTOR 1
7 J90834347A HEAD_Z2_HOME_SENSOR_CABLE_ASSY 1
8 J90834220A Z3_MOTOR_CABLE_ASSY AP5_MD034 1
9 AM03-004766A CABLE ASSY-LEFT_Z4_MOTOR 1
10 J90834357A HEAD_Z4_HOME_SENSOR_CABLE_ASSY 1
