Page HANWHA TECHWIN 227 SLM120/110 Safety Interlock Interface 120 (2/2) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supp ly Supply L T Reference 1 J90834178A FDR_BASE_PWR_CABEL_A SSY AP5_FD006 1 2 J90834148A CONV_IF…
Page
HANWHA TECHWIN
226
SLM120/110

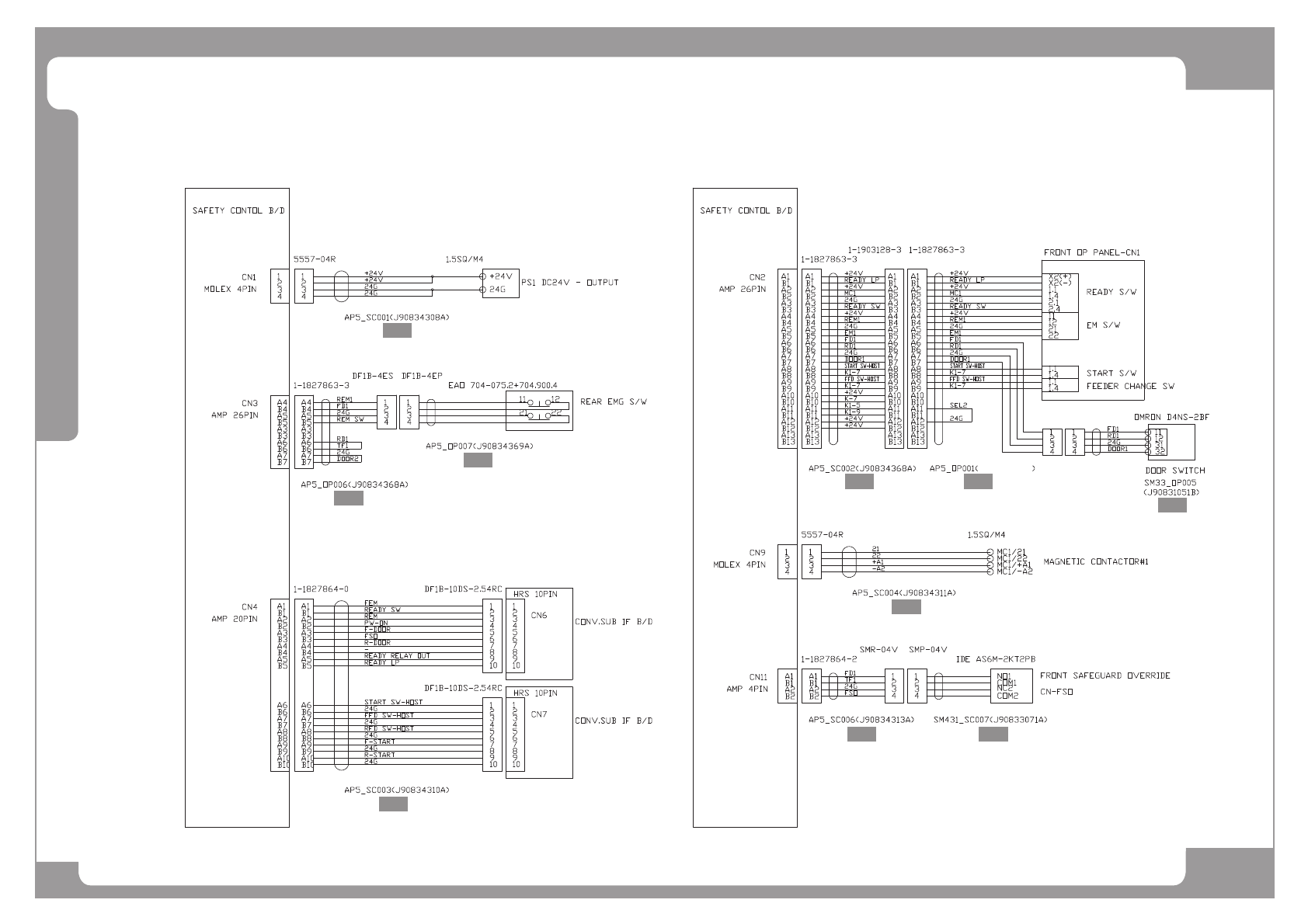

Safety Interlock Interface 120 (2/2)
^4`
^5`
^6`
^7`
^9`
^7`
^:`
^9`
^8`
^;`
Page
HANWHA TECHWIN
227
SLM120/110
Safety Interlock Interface 120 (2/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834178A FDR_BASE_PWR_CABEL_ASSY AP5_FD006 1
2 J90834148A CONV_IF_BD_POWER_CABLE_ASSY AP5_CV004 1
3 J90834082A AXIS_SEN_BD_PW_CABLE_ASSY AP5_AX001 1
4 J90834314A SC_CN22_AXIO_1_PWR_CABLE_ASSY AP5_SC007 2
5 AM03-013461B HEAD_MOTOR_IF_BD_1_PW_CABLE_ASSY 1 J90834316A/AM03-013461A
6 J90611826A FLAT_CABLE_ASSY AP5_FL001 2
7 AM03-013462B HEAD_MOTOR_IF_BD_2_PW_CABLE_ASSY 1 J90834317A/AM03-013462A
8 J90834169A FDR_IO_PWR_CABLE_ASSY AP5_FD001 1
Page
HANWHA TECHWIN
228
SLM120/110
Safety Interlock Interface 110 (1/2)
^4`
^5`
^6`
^7`
^:`
^8`
^;` ^<`
^6`
^9`
-$
