Page HANWHA TECHWIN 240 SLM120/110 Electric Circuit Diagram 120 (5/5) ^4` ^5` ^:` ^9` ^8` ^7` ^6` ^;` ^<` ^43` ^44` ^46` ^45` AM03-004806A AM03-004806A
Page
HANWHA TECHWIN
239
SLM120/110
Electric Circuit Diagram 120 (4/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834274A PS1_SC_CN1_POWER_CABLE_ASSY AP5_PW013 1
2 J90834282A MC1_TB1_POWER_CABLE_ASSY AP5_PW021 1
3 J90834278A PS2_TB1_POWER_CABLE_ASSY AP5_PW017 1
4 J90834284A PS2_R_DRV_BD_PWR_CABLE_ASSY AP5_PW023 1
5 J90834280A LEFT_FAN_POWER_CABLE_ASSY AP5_PW019 1
6 J90833316A FAN_CABLE_ASSY SM-FAN00 1
7 J90834279A PS3_TB1_POWER_CABLE_ASSY AP5_PW018 1
8 J90834305A SDP_1_5V_PWR_CABLE_ASSY AP5_PW044 1
9 J90834306A SDP_2_5V_PWR_CABLE_ASSY AP5_PW045 1
10 AM03-004806A Z_P_DRV_INPUT_POWER_1_CABLE_ASSY 1
11 J90834380A Z_P_DRV_INPUT_POWER_3_CABLE_ASSY 1
Page
HANWHA TECHWIN
240
SLM120/110
Electric Circuit Diagram 120 (5/5)
^4`
^5`
^:`
^9`
^8`
^7`
^6`
^;`
^<`
^43`
^44`
^46`
^45`
AM03-004806A
AM03-004806A
Page
HANWHA TECHWIN
241
SLM120/110

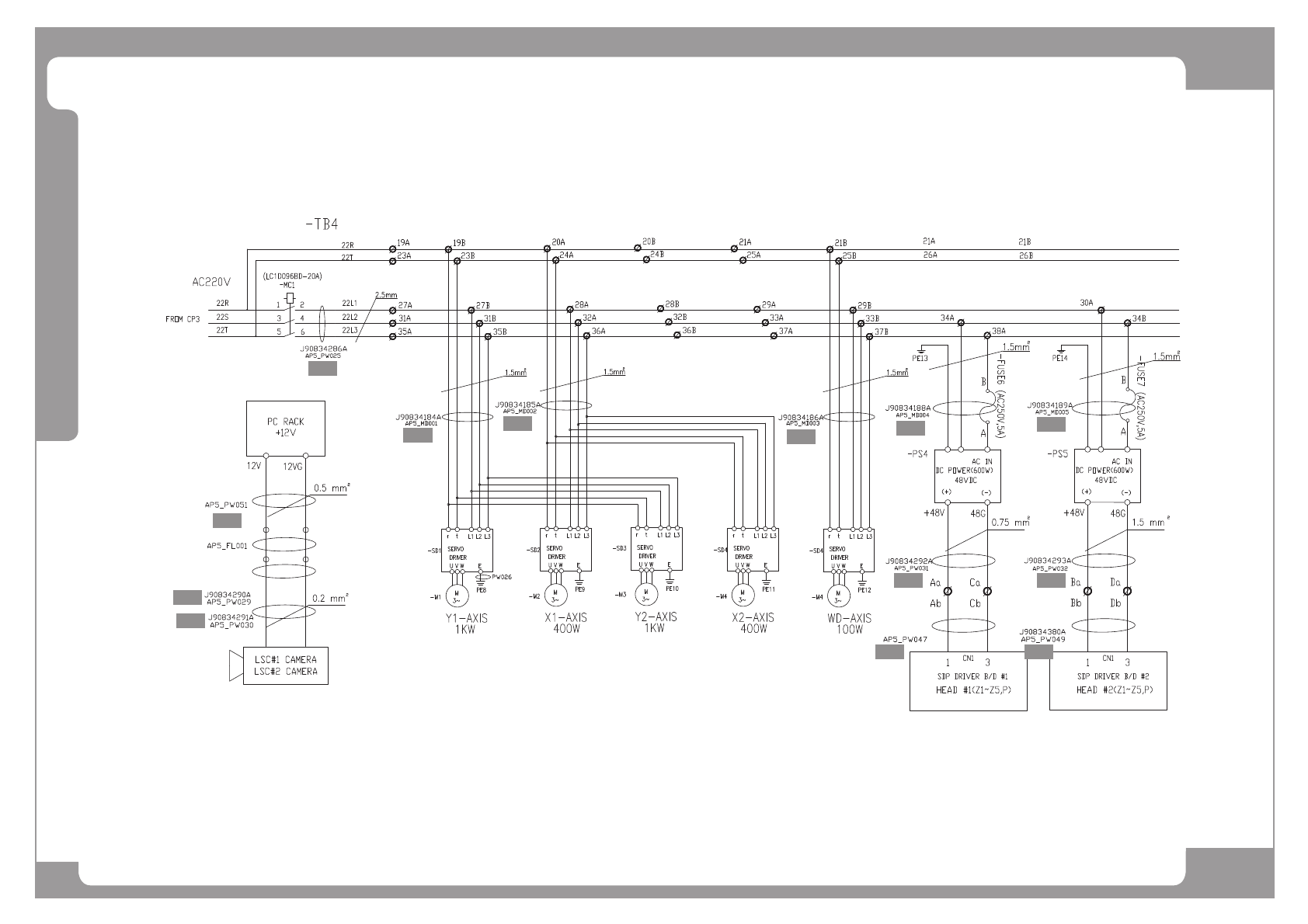

Electric Circuit Diagram 120 (5/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J90834286A MC1_TB1_CABLE_ASSY AP5_PW025 1
2 AM03-004806A LSC_CAM_1_2_PWR_CABLE_ASSY AP5_PW051 1
3 AM03-013466A LSC_CAM_1_PWR_CABLE_ASSY AP5_PW029 1 J90834290A
4 AM03-013467A LSC_CAM_2_PWR_CABLE_ASSY AP5_PW030 1 J90834291A
5 J90834184A Y1_Y2_DRV_TB1_PWR_CABLE_ASSY AP5_MD001 1
6 J90834185A X1_X2_DRV_TB1_PWR_CABLE_ASSY AP5_MD002 1
7 J90834186A WD_DRV_TB1_PWR_CABLE_ASSY AP5_MD003 1
8 J90834188A PS4_TB1_POWER_CABLE_ASSY AP5_MD004 1
9 J90834292A SDP1_BD_PWR_CABLE_ASSY AP5_PW031 1
10 AM03-004806A Z_P_DRV_INPUT_POWER_1_CABLE_ASSY 1
11 J90834189A PS5_TB1_POWER_CABLE_ASSY AP5_MD005 1
12 J90834293A SDP2_BD_PWR_CABLE_ASSY AP5_PW032 1
13 J90834380A Z_P_DRV_INPUT_POWER_3_CABLE_ASSY 1
