Page HANWHA TECHWIN 22 SLM120/110 Conveyor Ass’y (5/5) 3 8 17 10 18 9 7 15 1 21 2 20 11 11 12 5 6 13 16 19 4 14 9
Page
HANWHA TECHWIN
21
SLM120/110
Conveyor Ass’y (4/5)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A RAIL_TRANSFER_L_ASSY 1
1 FC18-902045 lead-screw-dcm16_470_5_toyo FC18-902045 1
2 RM01-900167 lm-rail-sbg20sll_410_sbc RM01-900167 1
3 HP03-900009 CYLINDER AQ2A12-30D 1
4 MC19-900014 PULLEY-WIDTH [20-XL-025] 1
5 J70531109A MANUAL_HANDLE J70531109A 1
6 J7053194A BEARING NUT [J7053194A] 1
7 MC05-900189 TIMING_BELT 1
8 MC03-900023 BALL BEARING 2
9 HP14-900083 THROTTLE VALVE(ELBOW) 1
10 EP19-900109 PHOTO_SENSOR 1
11 MC03-900121 BALL BEARING[F608ZZ] 2
12 J70531735A BELT_TENSION_BKT J70531735A 1
13 J70531999A ap5-04-fix_stand J70531999A 1
14 J70532006A SCREW_STAND 1
15 J70532009A ap5-04-support_wide_adjust J70532009A 1
16 J70532035A AP5-04-WAIT_CYLINDER_BKT J70532035A 1
17 J70531736A TENSION_BEARING_PIN J70531736A 1
18 HP06-900047 ELBOW FITTING 1
19 J70531739A MOVE_STAND J70531739A 1
Page
HANWHA TECHWIN
22
SLM120/110
Conveyor Ass’y (5/5)
3
8
17
10
18
9
7 15
1
21
2
20
11
11
12
5
6
13
16
19
4
14
9
Page
HANWHA TECHWIN
23
SLM120/110

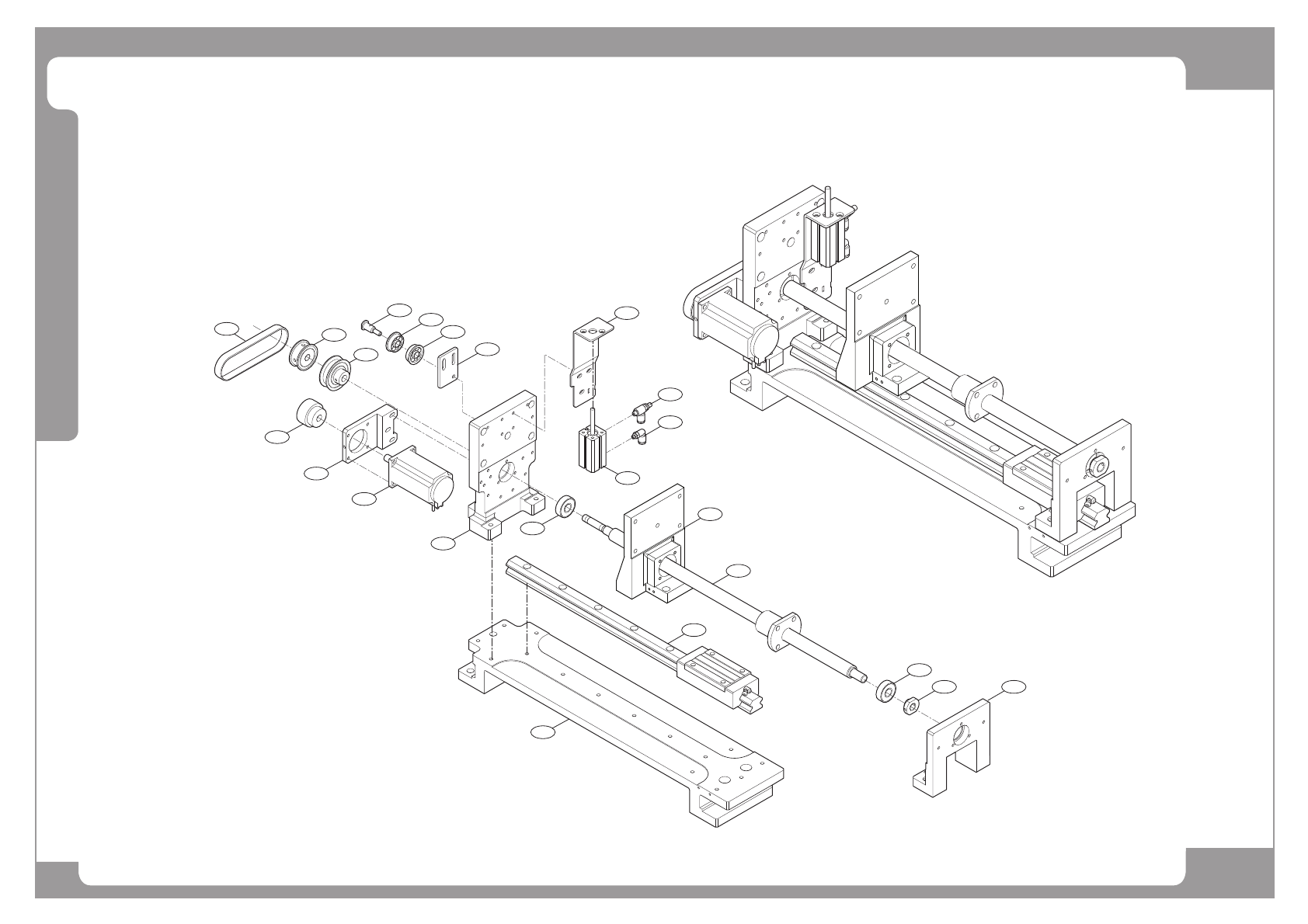

Conveyor Ass’y (5/5)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A RAIL_TRANSFER_R_ASSY 1
1 FC18-902045 lead-screw-dcm16_470_5_toyo FC18-902045 1
2 RM01-900167 lm-rail-sbg20sll_410_sbc RM01-900167 1
3 MC05-900026 TIMING BELT [258-3M-9] 1
4 HP03-900009 CYLINDER AQ2A12-30D 1
5 MC19-900014 PULLEY-WIDTH [20-XL-025] 1
6 MC19-900015 PULLEY-MOTOR [P32-3M-9] 1
7 J7053194A BEARING NUT [J7053194A] 1
8 J7153330A PULLEY SHAFT[J7153330A] 1
9 MC03-900023 BALL BEARING 2
10 HP14-900083 THROTTLE VALVE(ELBOW) 1
11 MC03-900121 BALL BEARING[F608ZZ] 2
12 J70531735A BELT_TENSION_BKT J70531735A 1
13 J70531993A ap5-04-bracket_servo_motor J70531993A 1
14 J70531999A ap5-04-fix_stand J70531999A 1
15 J70532006A SCREW_STAND 1
16 J70532009A ap5-04-support_wide_adjust J70532009A 1
17 J70532036A AP5-04-WAIT_CYLINDER_BKT_RL J70532036A 1
18 HP06-900047 ELBOW FITTING 1
19 EP08-000009 MOTOR,SERVO;AC,100W,WH3:motor 1
20 J70531736A TENSION_BEARING_PIN J70531736A 1
21 J70531739A MOVE_STAND J70531739A 1
