Page HANWHA TECHWIN 30 SLM120/110 Head Ass’y (1/12) 1 6 7 4 5 2 3 8 9
Page
HANWHA TECHWIN
29
SLM120/110
Base Module Ass’y
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A J90541015A Y-BALL_SCREW_MODULE J90541015A 2
1 J72541006A MOTOR,SERVO;AC,1kW,WH3:motor 2
2 EP08-900154 SERVO_MOTOR 2
3 J70791244A BKT_CONN_BASE_2L_G1 J70791244A 1
4 J70791245A BKT_CONN_BASE_2L_G2 J70791245A 1
5 J70791265A BKT_CABLE_MOUNT_2 J70791265A 1
6 J73541024A X_CABLE_CUSHION J73541024A 2
7 J70541030A BRG_HOUSING_Y 2
8 EP19-900114 LIMIT SENSOR [EE-SX674] 2
9 J70541005C Y_MOTOR_BLOCK 2
10 J70791262A CLAMP_LM_RAIL J70791262A 12
11 J70791236A CABLE_DUCT_X_G1 1
12 J70791237A CABLE_DUCT_X_G2 1
13 J70791218A CABLE_DUCT_X_SUPPORT 4
14 J70791223A SENSOR_PLATE_LEFT_END J70791223A 1
15 J70791226A SENSOR_PLATE_RIGHT_END J70791226A 1
16 J71541345A X_CUSHION_BRACKET_AL J71541345A 2
17 MC13-900160 Y-BALL_SCREW SBK2030ZS-3.4GT+956LC5-B 2
18 FC18-901665 C-RING (SHAFT) [DIA15] 2
19 MC04-900028 SUPPORT UNIT[FK-15] 2
20 HP06-900080 STRAIGHT_FITTING KQ2H04-M6 8
21 J70541006B BS_REAR_SUPPORT 2
22 MC03-900027 BALL BEARING 2
23 J72541004A STOPPER_Y_BALL_SCREW J72541004A 2
24 J6612055A COUPLING 2
Page
HANWHA TECHWIN
30
SLM120/110
Head Ass’y (1/12)
1
6
7
4
5
2
3
8
9
Page
HANWHA TECHWIN
31
SLM120/110
Head Ass’y (1/12)

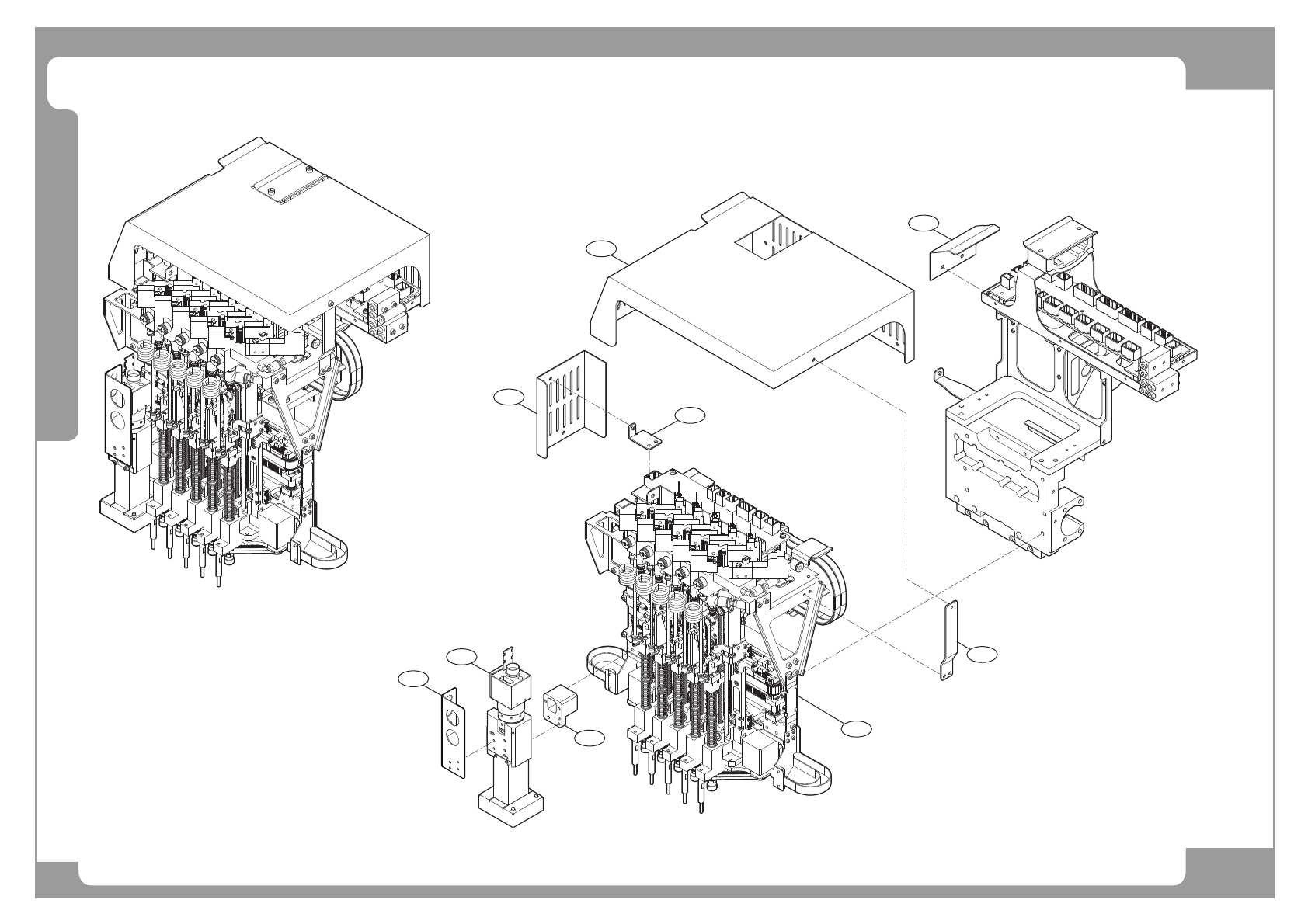

No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
1 J71551899A HEAD_BKT_COVER_L J71551899 1
2 J71551906A FID_BRACKET_L J71551906A 1
3 J70551968A COVER_FIX_BKT_3 J70551968A 1
4 J71551901A HEAD_COVER_L J71551901A 1
5 J70551967A COVER_FIX_BKT_1 J70551967A 1
6 J71551900A FRONT_COVER_L J71551900A 1
7 J91851121A AP5_08_FIDUCIA_LENS_ASSY 1
8 AM03-000606A ASSY,HEAD-AP5 HEAD ASSY 1
9 FC09-002422A BRACKET-FID_CAM_COVER_1 1
