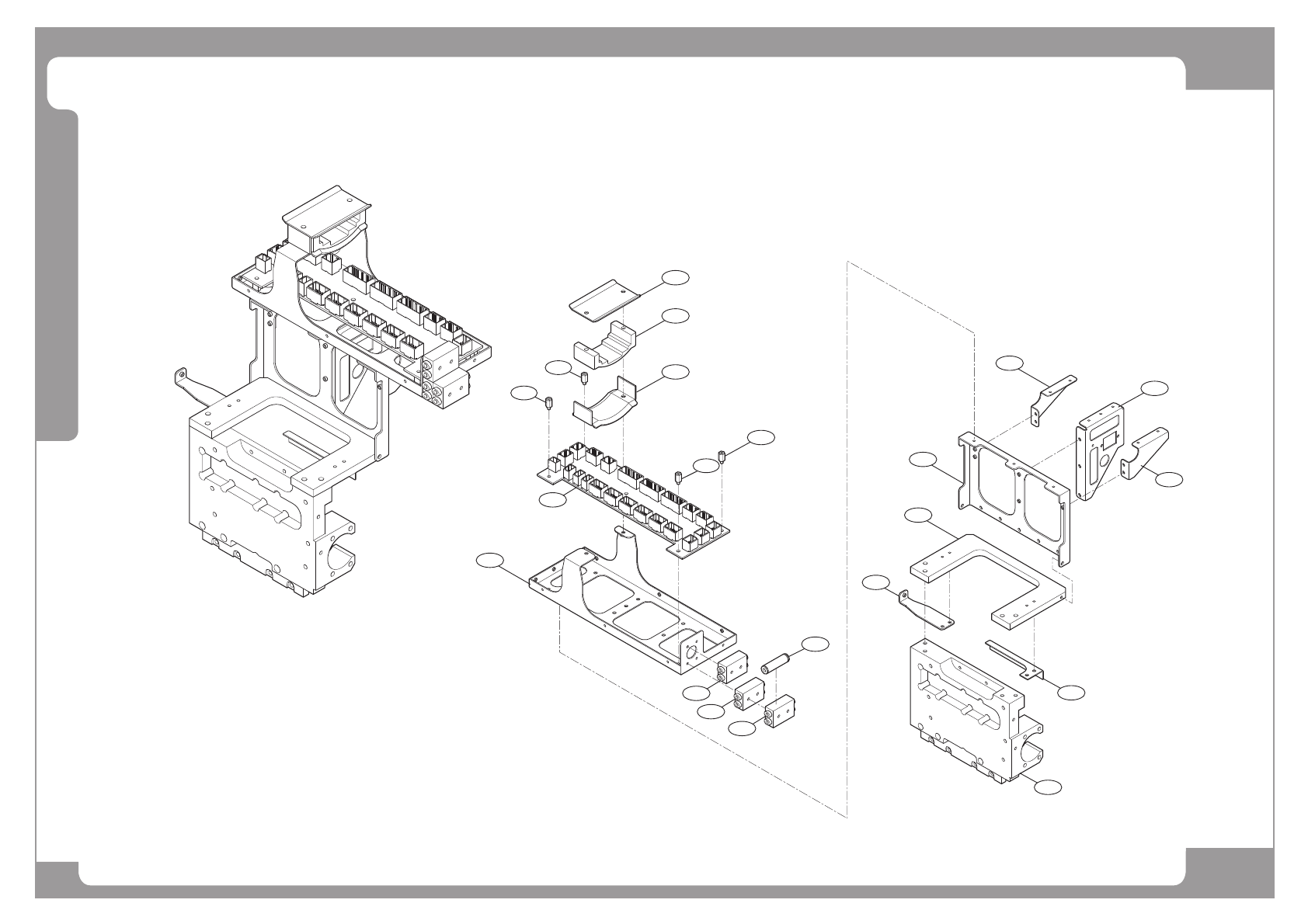

Page
HANWHA TECHWIN
31
SLM120/110
Head Ass’y (1/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
1 J71551899A HEAD_BKT_COVER_L J71551899 1
2 J71551906A FID_BRACKET_L J71551906A 1
3 J70551968A COVER_FIX_BKT_3 J70551968A 1
4 J71551901A HEAD_COVER_L J71551901A 1
5 J70551967A COVER_FIX_BKT_1 J70551967A 1
6 J71551900A FRONT_COVER_L J71551900A 1
7 J91851121A AP5_08_FIDUCIA_LENS_ASSY 1
8 AM03-000606A ASSY,HEAD-AP5 HEAD ASSY 1
9 FC09-002422A BRACKET-FID_CAM_COVER_1 1
Page
