Page HANWHA TECHWIN 35 SLM120/110 Head Ass’y (3/12) No. LEVEL PA R T N o . P ART NAME Q'TY TYPE Old N o. Sto ck Appl y Reference 1 J71551903A HEAD_BKT_COVE R_R J715519 03A 1 2 J71551907A FID_BRACKE T_R J71551907 A 1…

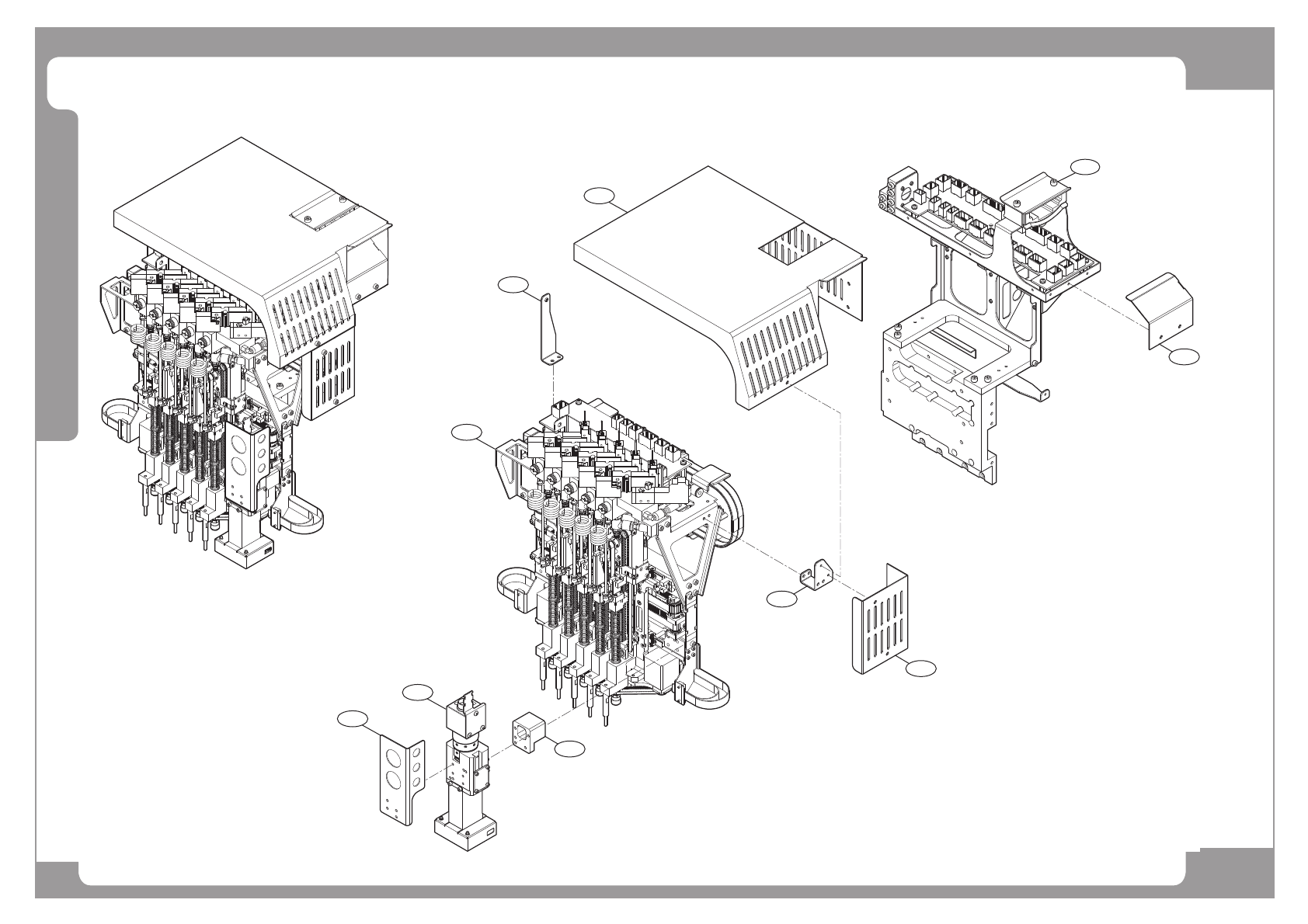

Page

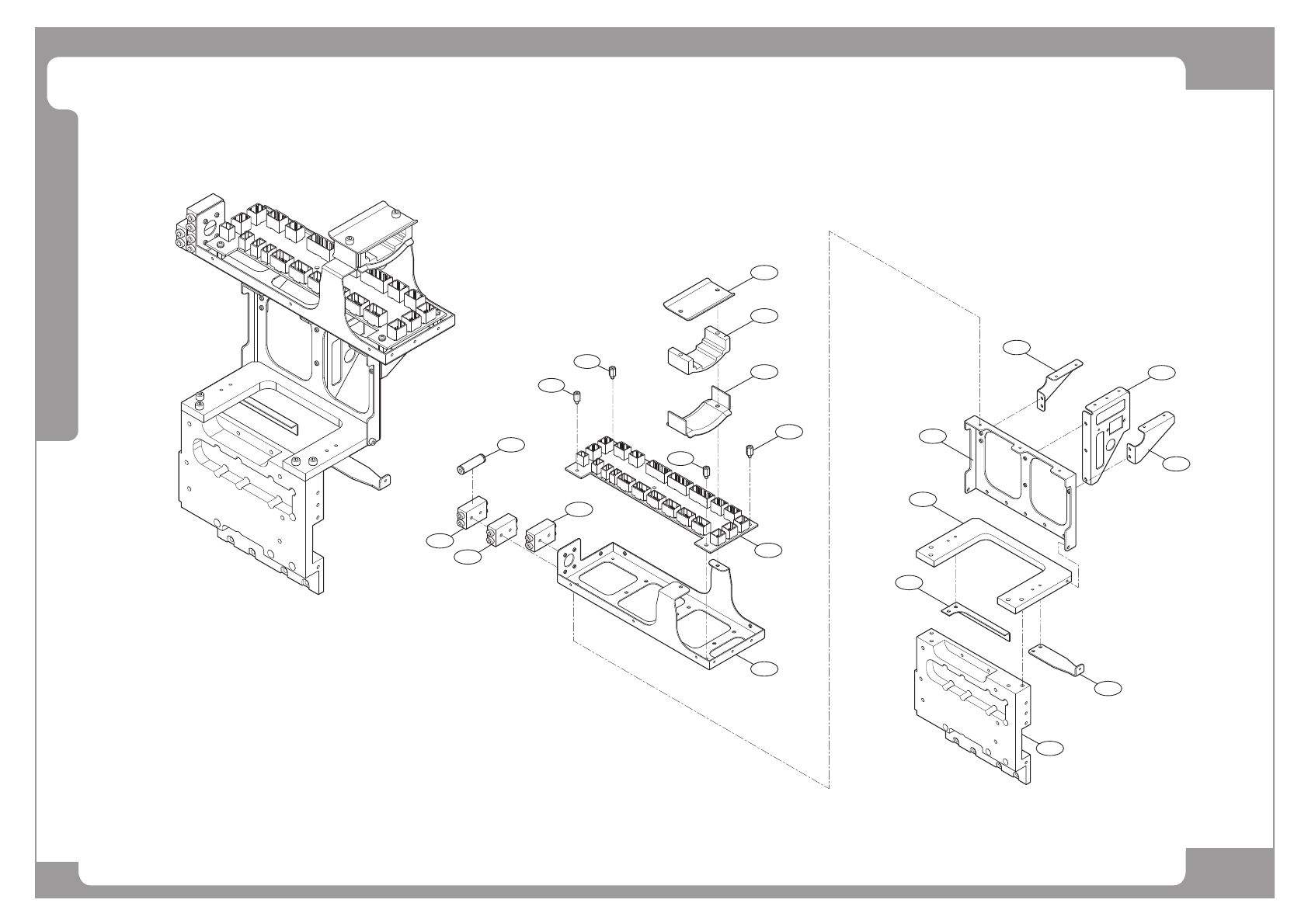

HANWHA TECHWIN
34
SLM120/110
Head Ass’y (3/12)
7
8
6
5
1
2
3
4
9
10
Page
HANWHA TECHWIN
35
SLM120/110
Head Ass’y (3/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
1 J71551903A HEAD_BKT_COVER_R J71551903A 1
2 J71551907A FID_BRACKET_R J71551907A 1
3 J71551902A FRONT_COVER_R J71551902A 1
4 J70551970A COVER_FIX_BKT_4 J70551970A 1
5 J91851121A AP5_08_FIDUCIA_LENS_ASSY 1
6 AM03-000606A ASSY,HEAD-AP5 HEAD ASSY 1
7 J71551904A HEAD_COVER_R J71551904A 1
8 J70551971A COVER_FIX_BKT_5 J70551971A 1
9 FC09-002423A BRACKET-FID_CAM_COVER_2 1
10
Page
HANWHA TECHWIN
36
SLM120/110
Head Ass’y (4/12)
4
11
6
8
1
9
14
13
12
7
2
13
13
16
5
10
3
15
12
12
12
