Page HANWHA TECHWIN 37 SLM120/110 Head Ass’y (4/12) No. LEVEL P ART No. P ART NAME Q'TY TYPE Old No. St o ck Apply Reference 1 J71541353A Y_CABLE_FIX_HEAD J 71541353A 1 2 J70541491A X_CUSHION_BRACKET 1 3 J70551946A …
Page
HANWHA TECHWIN
36
SLM120/110
Head Ass’y (4/12)
4
11
6
8
1
9
14
13
12
7
2
13
13
16
5
10
3
15
12
12
12
Page
HANWHA TECHWIN
37
SLM120/110
Head Ass’y (4/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
1 J71541353A Y_CABLE_FIX_HEAD J71541353A 1
2 J70541491A X_CUSHION_BRACKET 1
3 J70551946A HEAD_BRACKET_R J70551946A 1
4 J70551945A HEAD_BRACKET_CENTER J70551945A 1
5 J71541343A HEAD_CARRIER_G2 1
6 J71551865A HEAD_BRACKET_PLATE J71551865A 1
7 J73541024A X_CABLE_CUSHION J73541024A 1
8 J70551928A MOVING_SNS_DOG_2 J70551928A 1
9 J70551882A HEAD_BRACKET_3 J70551882A 1
10 J70551939A HEAD_BRACKET_SIDE_1 J70551939A 1
11 J70551940A HEAD_BRACKET_SIDE_2 J70551940A 1
12 FC29-900605 HEX SUPPORT [M3*10 (BOLT-NUT)] 4
13 J801070 STRAIGHT_CONNECTOR_FITTING 3
14 HP14-900095 CHECK VALVE 1
15
16
Page
HANWHA TECHWIN
38
SLM120/110

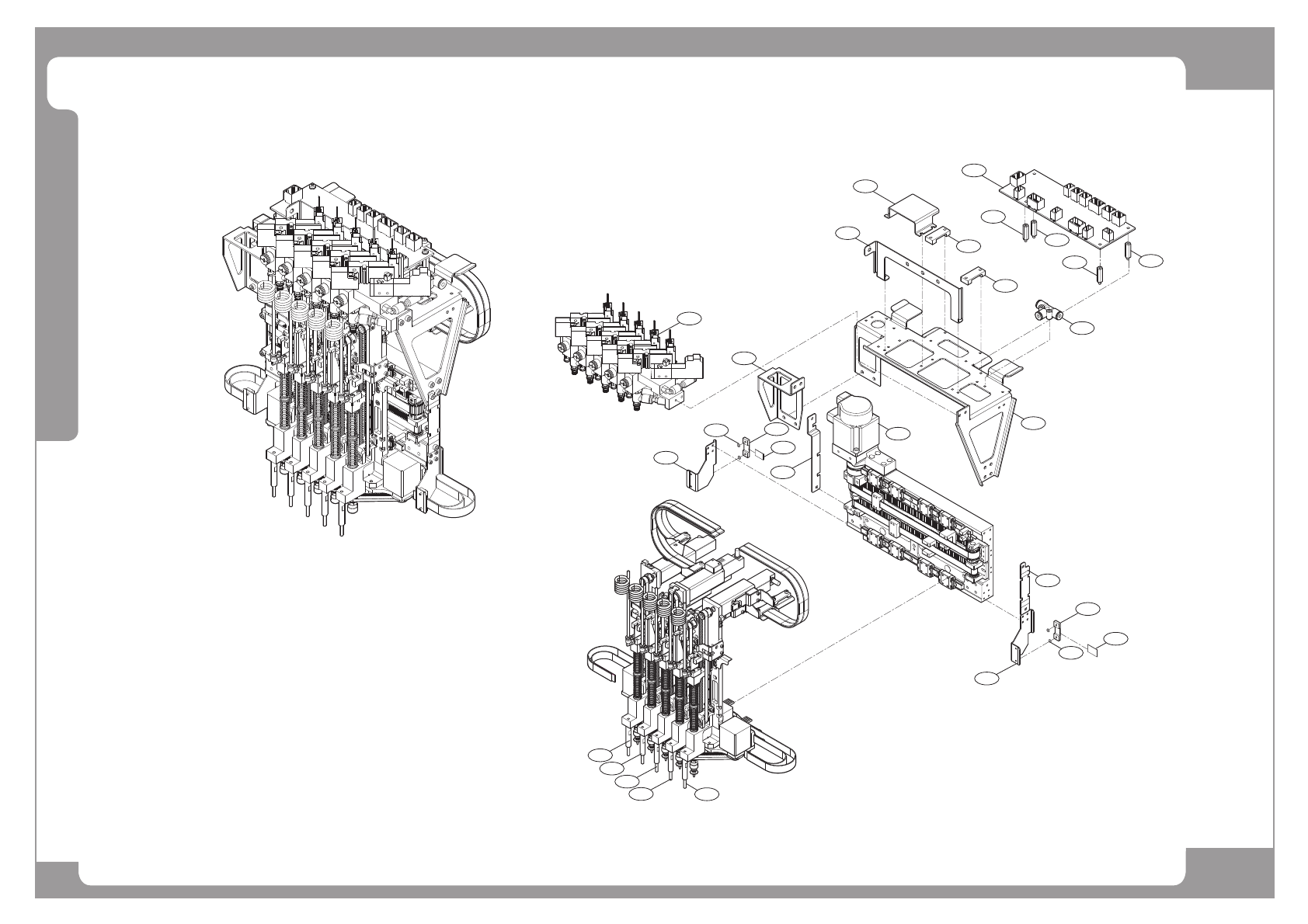

Head Ass’y (5/12)
19
14
12
11
8
14
2
18
6
1
15
16
17
13
13
14
20
14
10
9
5
7
4
3
21
3
21
22
22
