Page HANWHA TECHWIN 46 SLM120/110 Head Ass’y (8/12) 24 2 48 39 44 31 30 17 33 35 50 6 40 46 14 26 32 3 9 44 45 29 10 1 42 34 47 11 19 4 43 21 12 41 20 48 5 23 22 38 25 25 16 13 15 15 8 18 7 51 27 36 28 37
Page
HANWHA TECHWIN
45
SLM120/110
Head Ass’y (7/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
Page
HANWHA TECHWIN
46
SLM120/110

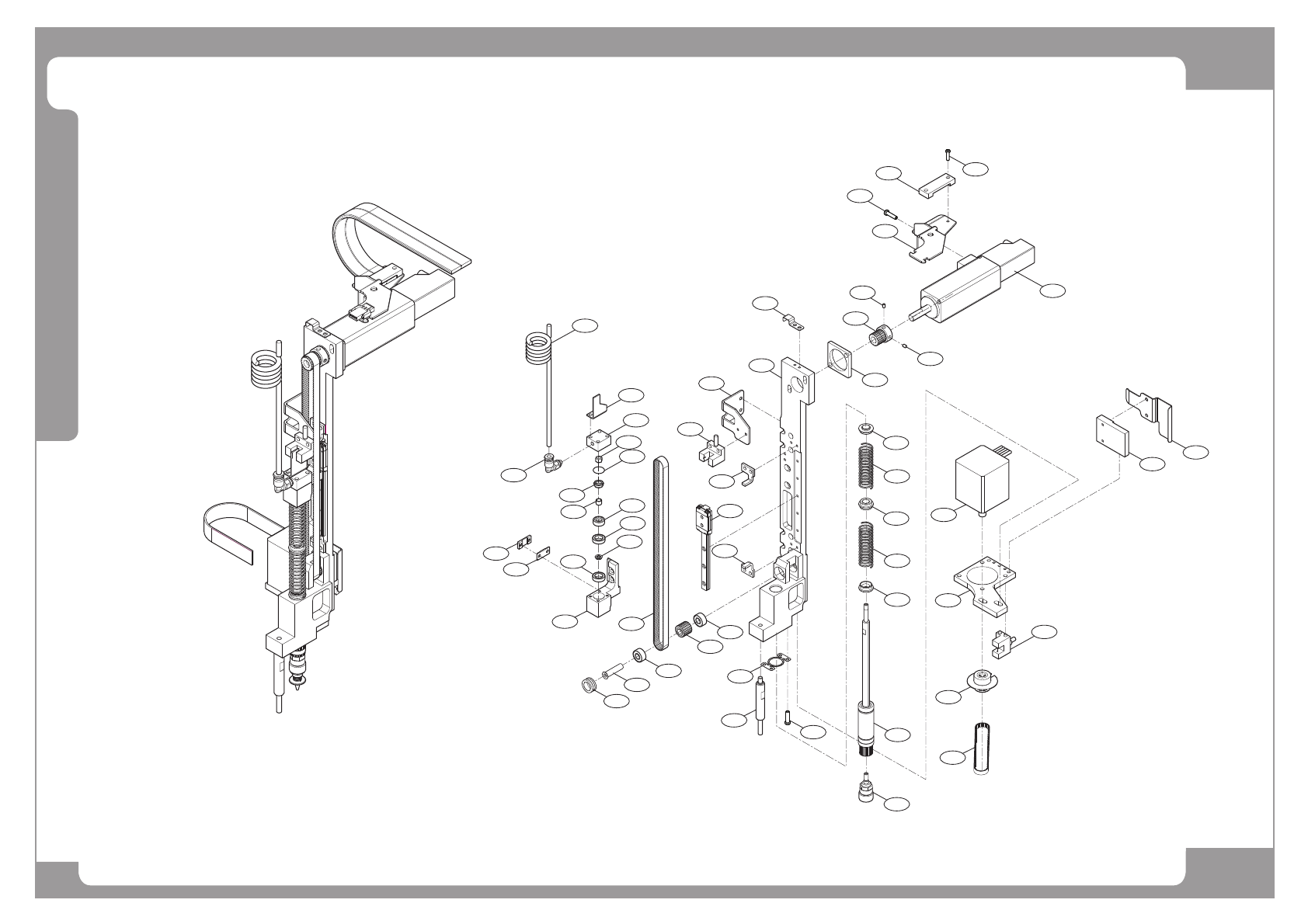

Head Ass’y (8/12)
24
2
48
39
44
31
30
17
33
35
50
6
40
46
14
26
32
3
9
44
45
29
10
1
42
34
47
11
19
4
43
21
12
41
20
48
5
23
22
38
25
25
16
13
15
15
8
18
7
51
27
36
28
37
Page
HANWHA TECHWIN
47
SLM120/110
Head Ass’y (8/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A SPINDLE_MODULE1_ASSY 1
1 J71551837A T_MOTOR_PULLEY J71551837A 1
2 J71551840A Z_MOTOR_PULLEY J71551840A 1
3 FC18-901422 O_RING ID7 X WD0.5 1
4 J71551841A Z_ROD_HOUSING1 J71551841A 1
5 J72551103A SPRING_BASE J72551103A 1
6 J67131038A COIL_TUBE J67131038A 1
7 J90551508A BALL_SPLINE_ASSY J90551508A 1
8 J71551838A T_MOTOR_CABLE_BRACKET J71551838A 1
9 J70551867A PACKING_HOUSING J70551867A 1
10 J70551868A PACKING_COLLAR J70551868A 1
11 J70551869A Z_BELT_CLAMP J70551869A 1
12 J70551873A Z_BEARING_PLATE J70551873A 1
13 J70551874A Z_IDLE_SHAFT J70551874A 1
14 J70551899A Z_SENSOR_DOG_1 J70551899A 1
15 J70551901A SPINDLE_SPRING 2
16 J70551947A Z_IDLER_CAP J70551947A 1
17 J70551948A Z_SENSOR_GUIDE_2 J70551948A 1
18 J70551952A T_CABLE_CLAMP_1 J70551952A 1
19 J71551847A Z_BELT_FITTING J71551847A 1
20 J71551890A Z_MOTOR_PLATE J71551890A 1
21 J71551891A HEAD_FIDUCIAL_SHAFT J71551891A 1
22 J72551120A SPRING_COLLAR J72551120A 1
23 J72551121A SPRING_TOP_BASE J72551121A 1
24 J72551122A Z_CABLE_CLAMP J72551122A 1
25 MC03-900127 BEARING 2
