Page HANWHA TECHWIN 49 SLM120/110 Head Ass’y (8/12) No. LEVEL P ART No. P ART NAME Q'TY TYPE Old No. St o ck Apply Reference
Page
HANWHA TECHWIN
48
SLM120/110
Head Ass’y (8/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
26 J70551419A LOCK_NUT_Z_2 J70551419A 1
27 M2*6(BL/ZN)
28 J70551452A Z_SPACER J70551452A 1
29 J70551951A Z_STOP_PLATE_2 J70551951A 1
30 J70551980A Z_STOP_PLATE_3 J70551980A 1
31 J70551894A Z_SENSOR_BRACKET_1 J70551894A 1
32 J71551846A Z_CAP J71551846A 1
33 J71551827A SPINDLE_HOUSING1 J71551827A 1
34 J71551862A T_MOTOR_BRACKET_1 J71551862A 1
35 J71551889A Z_CABLE_BKT_1 J71551889A 1
36 J7255021B SILICON TUBE(BLACK ??) [J7255021B] 1
37 HP07-900278 Y_PACKING KSYN-4 1
38 J71551848A Z_IDLER_PULLEY J71551848A 1
39 EP19-900119 MICRO PHOTO SENSOR[PM-L24] 1
40 MC13-900113 LM_GUIDE SEBS5BYUU1-70P 1
41 AM03-014928A CABLE ASSY-LEFT_Z_MOTOR_AS 1 EP08-900149
42 MC05-900171 TIMING_BELT 129-1.5GT-3 1
43 MC05-900191 TIMING_BELT 339-1.5GT-5 1
44 MC03-900066 BALL_BEARING 693ZZ 2
45 HP06-900228 FITTING PL3-M3M 1
46 EP19-900134 MICRO_PHOTO_SENSOR PM-F24 1
47 EP08-000007 MOTOR,STEP;5 PHASE,ET1:ETC. 1
48 J71551840A SOCKET SET SCREW M3*3(BL/ZN) 2
49
50 M2*8(BL/ZN) 2
51 M2*4 4
Page
HANWHA TECHWIN
49
SLM120/110
Head Ass’y (8/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
Page
HANWHA TECHWIN
50

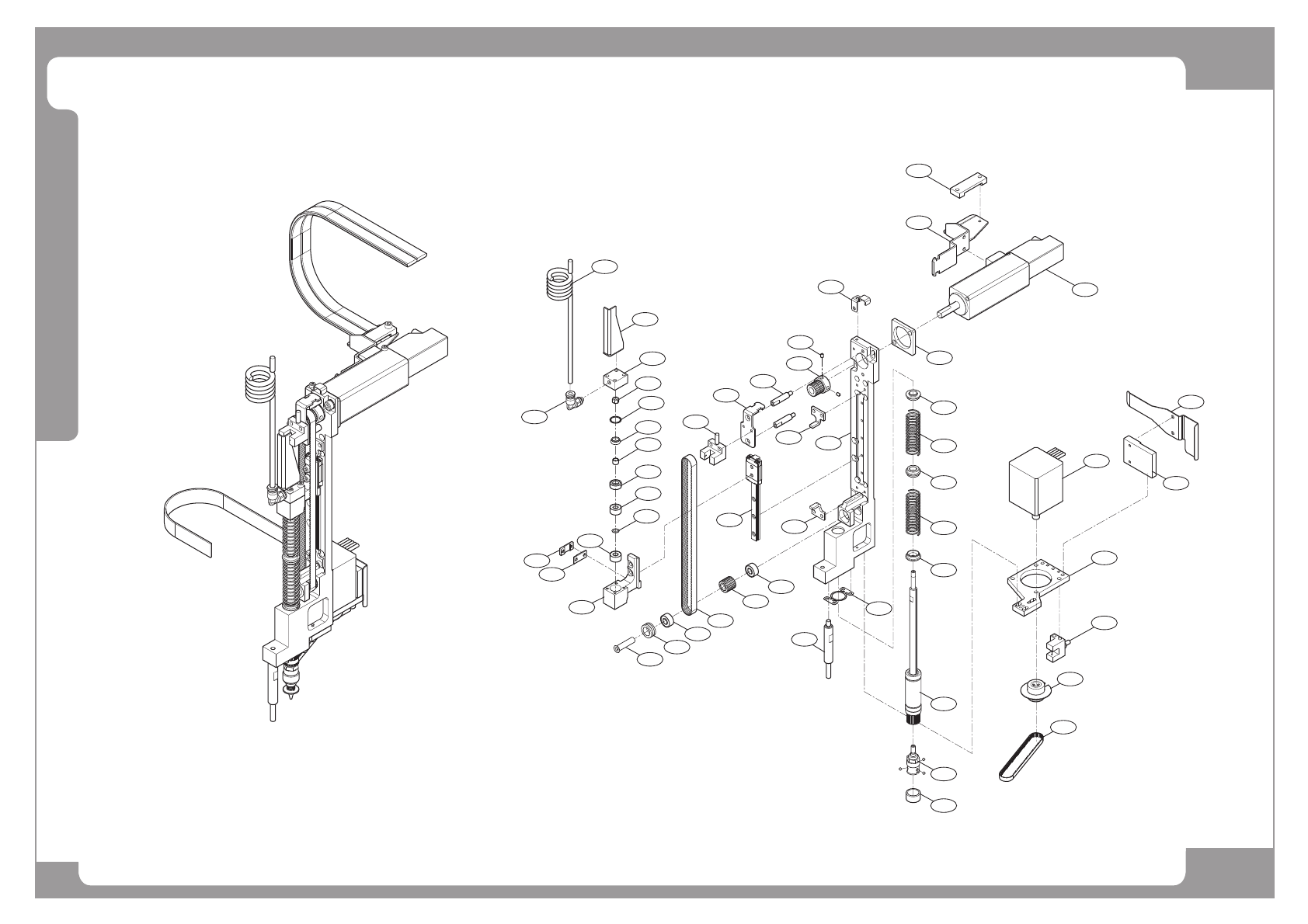

SLM120/110
Head Ass’y (9/12)
27
19
1
16
13
43
38
24
34
46
33
45
48
20
41
40
23
26
25
15
15
5
28
28
37
42
17
12
7
2
11
30
35
39
18
18
21
10
22
4
6
14
32
8
9
3
29
43
31
44
48
36
