Page HANWHA TECHWIN 54 SLM120/110 Head Ass’y (10/12) 2 28 35 19 22 21 15 15 5 40 1 36 29 39 7 25 30 20 10 18 4 37 11 34 17 23 23 32 16 12 13 33 6 38 17 41 41 26 8 9 3 24 27 14 31
Page
HANWHA TECHWIN
53
SLM120/110
Head Ass’y (9/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
Page
HANWHA TECHWIN
54
SLM120/110

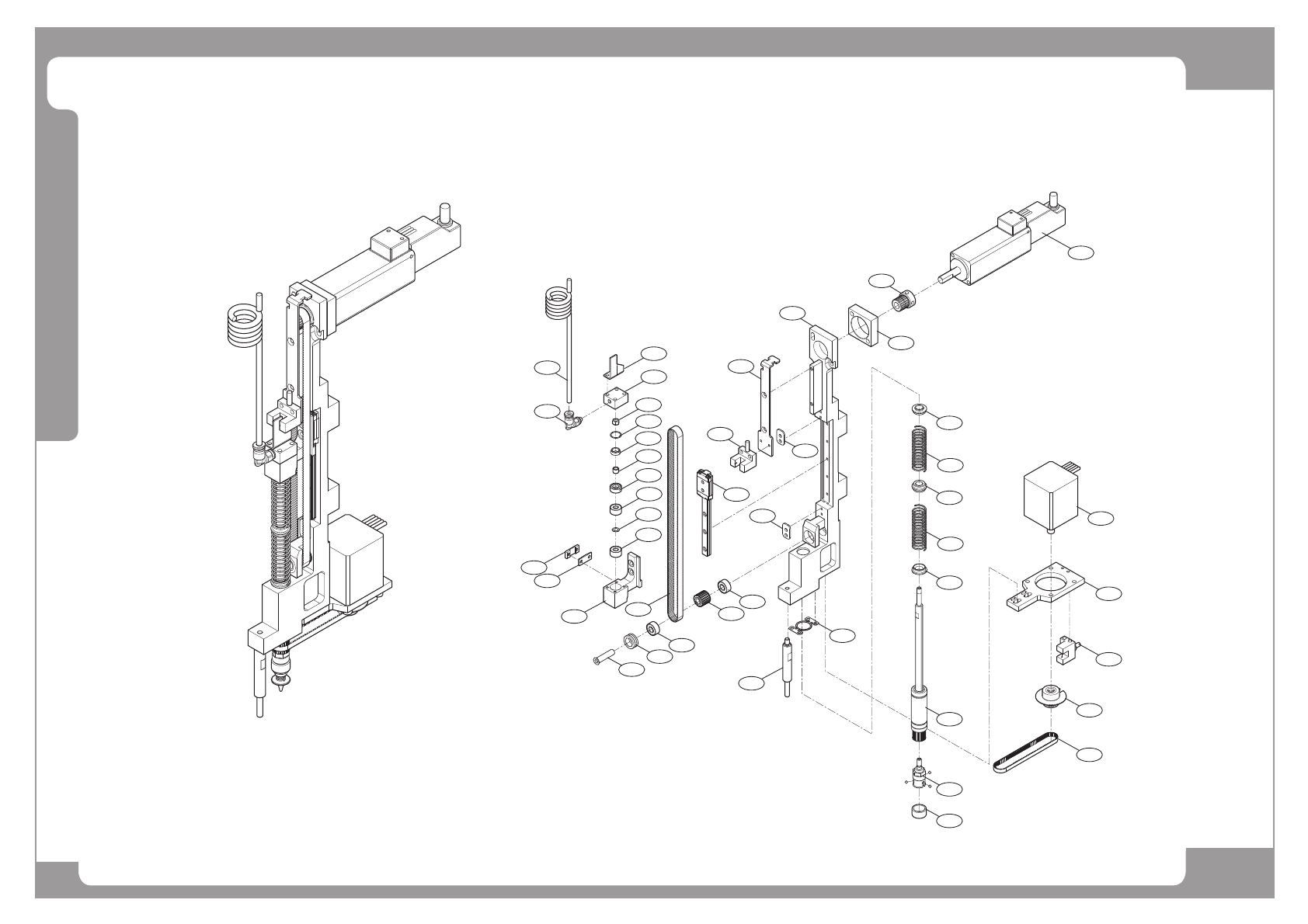

Head Ass’y (10/12)
2
28
35
19
22
21
15
15
5
40
1
36
29
39
7
25
30
20
10
18
4
37
11
34
17
23
23
32
16
12
13
33
6
38
17
41
41
26
8
9
3
24
27
14
31
Page
HANWHA TECHWIN
55
SLM120/110
Head Ass’y (10/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A SPINDLE_MODULE3_ASSY 1
1 J71551837A T_MOTOR_PULLEY J71551837A 1
2 J71551840A Z_MOTOR_PULLEY J71551840A 1
3 FC18-901422 O_RING ID7 X WD0.5 1
4 J71551843A Z_ROD_HOUSING3 J71551843A 1
5 J72551103A SPRING_BASE J72551103A 1
6 J67131038A COIL_TUBE J67131038A 1
7 J90551508A BALL_SPLINE_ASSY J90551508A 1
8 J70551867A PACKING_HOUSING J70551867A 1
9 J70551868A PACKING_COLLAR J70551868A 1
10 J70551869A Z_BELT_CLAMP J70551869A 1
11 J70551873A Z_BEARING_PLATE J70551873A 1
12 J70551874A Z_IDLE_SHAFT J70551874A 1
13 J70551896A Z_SENSOR_BRACKET_3 J70551896A 1
14 J70551899A Z_SENSOR_DOG_1 J70551899A 1
15 J70551901A SPINDLE_SPRING 2
16 J70551947A Z_IDLER_CAP J70551947A 1
17 J70551955A Z_STOP_PLATE_4 J70551955A 2
18 J71551847A Z_BELT_FITTING J71551847A 1
19 J71551864A Z_MOTOR_PLATE_3 J71551864A 1
20 J71551891A HEAD_FIDUCIAL_SHAFT J71551891A 1
21 J72551120A SPRING_COLLAR J72551120A 1
22 J72551121A SPRING_TOP_BASE J72551121A 1
23 MC03-900127 BEARING 2
24 J70551419A LOCK_NUT_Z_2 J70551419A 1
25 J90551225A_AS 431_NOZZLE_HOLDER_ASSY 1
