Page HANWHA TECHWIN 62 SLM120/110 Head Ass’y (12/12) 37 31 1 19 21 48 20 40 13 18 15 7 35 30 9 45 47 3 11 29 29 39 17 12 43 36 6 16 26 27 28 25 42 23 2 34 14 41 44 24 5 22 10 46 4 8 32 33 38 45
Page
HANWHA TECHWIN
61
SLM120/110
Head Ass’y (11/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
Page
HANWHA TECHWIN
62
SLM120/110

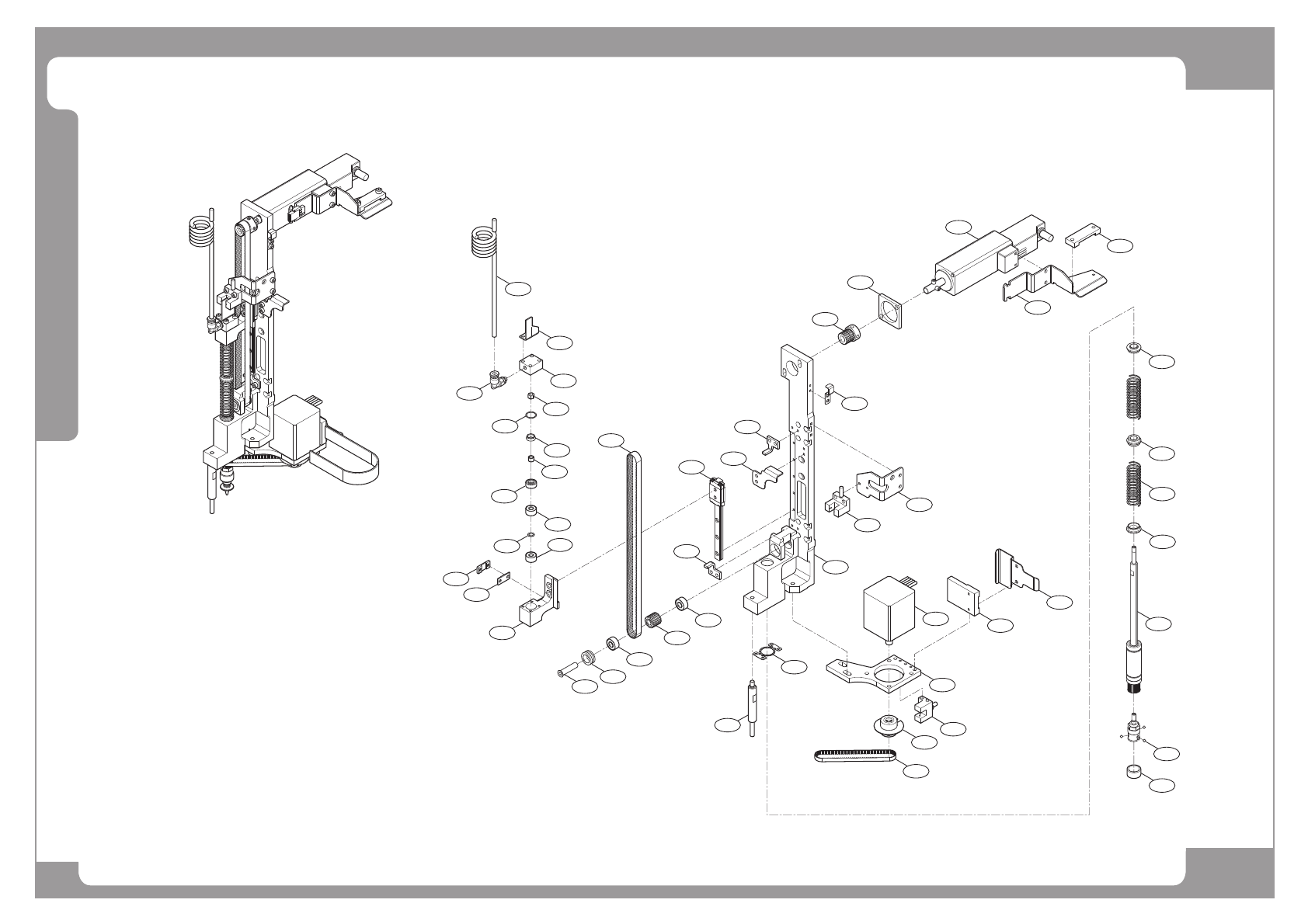

Head Ass’y (12/12)
37
31
1
19
21
48
20
40
13
18
15
7
35
30
9
45
47
3
11
29
29
39
17
12
43
36
6
16
26
27
28
25
42
23
2
34
14
41
44
24
5
22
10
46
4
8
32
33
38
45
Page
HANWHA TECHWIN
63
SLM120/110
Head Ass’y (12/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A SPINDLE_MODULE5_ASSY 1
1 J90551508A BALL_SPLINE_ASSY J90551508A 1
2 J71551840A Z_MOTOR_PULLEY J71551840A 1
3 J71551837A T_MOTOR_PULLEY J71551837A 1
4 FC18-901422 O_RING ID7 X WD0.5 1
5 J71551845A Z_ROD_HOUSING5 J71551845A 1
6 J72551103A SPRING_BASE J72551103A 1
7 J67131038A COIL_TUBE J67131038A 1
8 J70551867A PACKING_HOUSING J70551867A 1
9 J70551868A PACKING_COLLAR J70551868A 1
10 J70551869A Z_BELT_CLAMP J70551869A 1
11 J70551873A Z_BEARING_PLATE J70551873A 1
12 J70551874A Z_IDLE_SHAFT J70551874A 1
13 J70551897A Z_SENSOR_BRACKET_5 J70551897A 1
14 J70551898A P_SENSOR_DOG J70551898A 1
15 J70551899A Z_SENSOR_DOG_1 J70551899A 1
16 J70551901A SPINDLE_SPRING 2
17 J70551947A Z_IDLER_CAP J70551947A 1
18 J70551948A Z_SENSOR_GUIDE_2 J70551948A 1
19 J70551958A T_CABLE_CLAMP_5 J70551958A 1
20 J71551824A SPINDLE_HOUSING5 J71551824A 1
21 J71551838A T_MOTOR_CABLE_BRACKET J71551838A 1
22 J71551847A Z_BELT_FITTING J71551847A 1
23 J71551890A Z_MOTOR_PLATE J71551890A 1
24 J71551891A HEAD_FIDUCIAL_SHAFT J71551891A 1
25 J71551896A Z_CABLE_BKT_3 J71551896A 1
