Page HANWHA TECHWIN 66 SLM120/110 Cutter Ass’y (1/2) 19 1 5 6 10 10 7 8 3 A 3 8 8 12 12 2 4 9 A A A 14 15 16 18 17 11 13 12
Page
HANWHA TECHWIN
65
SLM120/110
Head Ass’y (12/12)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
Page
HANWHA TECHWIN
66
SLM120/110
Cutter Ass’y (1/2)
19
1
5
6
10
10
7
8
3
A
3
8
8
12
12
2
4
9
A
A
A
14
15
16
18
17
11
13
12
Page
HANWHA TECHWIN
67
SLM120/110

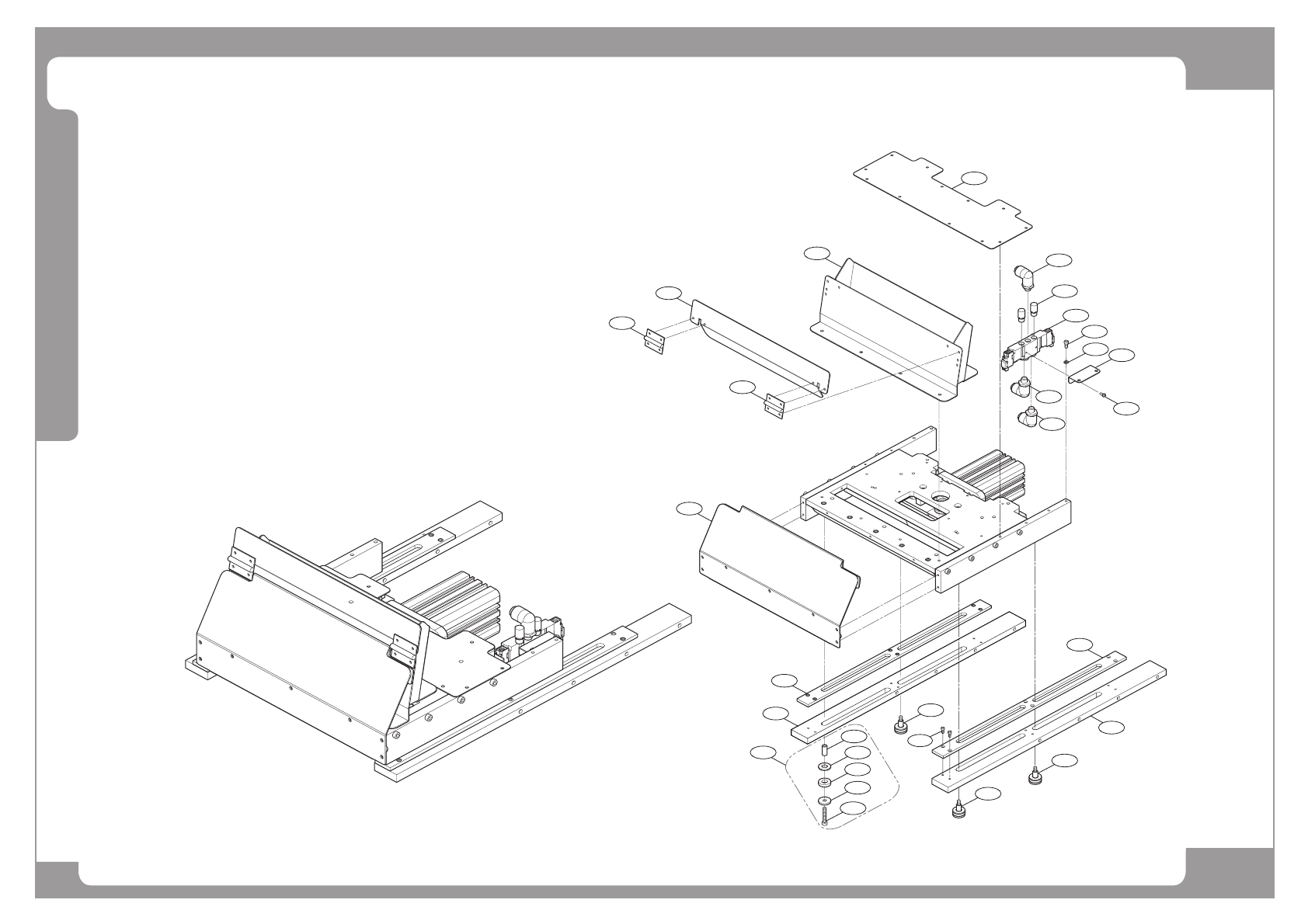

Cutter Ass’y (1/2)
No. LEVEL PART No. PART NAME Q'TY TYPE Old No. Stock Apply Reference
1 J70653599A SC_CUTTER_TOP_COVER J70653599A 1
2 J70653600A SC_CUTTER_VALVE_BKT J70653600A 1
3 J70653606A SC CUTTER SUPPORT REAR 1
4
5 J70653810A SC-TAPE_GUIDE_FRONT_UPPER J70653810A 1
6 J70653809A SC CUTTER TAPE GUIDE COVER 1
7 J70653811A SC_CUTTER_TAPE_GUIDE J70653811A 1
8 FC18-902668 SEMUS NABE SCREW 2
9
10 FC29-900190 HINGE KH-1061-2 2
11 HP14-900067 SOL_VALVE DV3220-5V-01 1
12 HP06-900188 AIR_FITTING SQL06-01S-W 3
13 HP09-900172 SILENCER SN101-01 2
14 J70653920A AP5_CUTTER_SUPPORT_BUSH J70653920A 4
15 J70791035A FRAME_FIX_WASHER_2 J70791035A 4
16 FC18-903260 URETHANE_WASHERS URWS20-10-5 4
17 J70791042A FRAME_FIX_WASHER_1 J70791042A 4
18 SHCS[M6*50] 4
