TR7700 SIII Ultra CI SERIES Specications Model TR7700 SIII Ultra CI Imaging System Camera 4 MP High Speed Color Camera Lighting Multi-phase RGB+W+UV LED Laser Module (Optional) 3D Laser Sensor or Coating Thickness Measu…
TR7700 SIII Ultra CI SERIES
The TR7700 SIII Ultra CI is a cutting-edge
Conformal Coating Inspection with improved
optical design and specialized multi-phase
lighting for detect coating issues, and can
measure coating thickness and the ability to
extend to the inspection of dispensed ux and
glue. The TR7700 SIII Ultra CI is a powerful
tool for manufacturers looking to optimize
their production’s yield rate and enable the
Connected Factory.
Next-level Conformal Coating Defect Detection
Create conformal coating inspection programming with ease with Smart Programming.
Easily convert CAD data and creates coating maps for rapid deployment. Learning from
sample PCBs, the system rapidly improves accuracy and reduces false calls.
Smart Programming
Smart Inspection
TRI’s CI software easily detects the most common coating issues, including cracks, bubble/voids, insufcient/excess
coating, and loss of adhesion. Innovative CI algorithms are used to calculate the maximum/minimum coating coverage
length and measure the coating length and the splash or insufcient coating.
Inspection Capabilities
Auto Learning for Coating Area
Bubble / Void
Missing Coating
Contamination
Smear
Cracked Coating
Excess Coating
Caliper Spill Measurement
3D Height Map
Create Coating Map Learning & Tuning
Learning
condition table
CI tester SW
TR7700 SIII Ultra CI SERIES
Smart Monitoring
The TR7700 SIII Ultra CI is not only a conformal coating inspection; through the multi-spectrum lighting range and 3D
technologies, the capabilities extend to the inspection of dispensed ux and glue inspection.
Multiple Applications
Smart Inspection
Multi-phase lighting inspection is a specialized lighting technique that enables the TR7700 SIII Ultra CI to lter noise, judge
defects, and identify typical coating defects with minimum false calls, ensuring high-precision optical design and accurate
identication of most common coating issues.
Multi-phase Lighting Inspection
The CI AOI offers precise measurements of coating
distance from critical areas on the PCB, enables
manufacturers to detect unwanted coating spills near
PCB connectors, sensitive components, and designated
mounting holes.
Excess and Insufcient Coating Detection
Blue Angled Laser Technology
The TR7700 SIII Ultra CI has an optional sensor feature
exclusively for coating thickness measurement. The
measurement range is from 35 µm to 750 µm.
Coating Thickness Measurement
UV + Red Light:
Set coating region
Red Light:
FM search & white line filter
White Light:
FM search & alignment box
UV Light:
Conformal coating inspection
Spill & Insufficient Coating
Flux Inspection Glue Spot Height Map
Laser module sensor measuring Coating Thickness
Big Data Ready
TRI’s Smart Factory Solutions promote full
traceability and data exchange by generating
Big Data for your MES Applications, which is
essential for optimizing your production’s yield
rate, enabling the Connected Factory. TRI’s
solutions comply with Industry 4.0 standards
like the IPC-Hermes-9852, the IPC-DPMX, and
the Connected Factory Exchange (IPC-CFX)
Smart Factory Ready
MES
Integration
Real Time
SPC Trends
M2M
Availability
TR7700 SIII Ultra CI SERIES
Specications
Model
TR7700 SIII Ultra CI
Imaging System
Camera
4 MP High Speed Color Camera
Lighting
Multi-phase RGB+W+UV LED
Laser Module (Optional) 3D Laser Sensor or Coating Thickness Measurement Module
Optical Resolution
10 μm 15 μm
Inspection Speed
2D
60 cm
2
/sec 120 cm
2
/sec
2D+3D
27 – 39 cm
2
/sec 40 – 60 cm
2
/sec
3D Height Range
4 mm 20 mm
Coating Thickness Measurement
35 μm - 750 μm
Inspection Functions
Component Defects
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective,
Upside Down, Extra Component, Foreign Material, Lifted Component
Solder Joint Defects
Excess Solder, Insucient Solder, Bridging,
Through-hole Pins, Lifted Lead, Golden Finger Scratch / Contamination
Conformal Coating
Missing Coating, Insucient Coating, Crack, Bubble, Splash,
Contamination, Spill Coating, Thickness, Glue Height (3D Laser)
X-Y-Z Axis Control
Ballscrew + AC Servo with Motion Controller
X-Y-Z Axis Resolution 1 μm
Min PCB Size
50 x 50 mm (1.97 x 1.97 in.)
Max PCB Size 510 x 460 mm (20.08 x 18.11 in.)
PCB Thickness 0.6 - 5 mm (0.02 - 0.20 in.)
PCB Transport Height
(1)
880 - 920 mm (34.65 -36.22 in.)
Max PCB Weight 3 kg (6.61 lb). Optional: 5 kg (11.02 lb)
PCB Carrier / Fixing
Step Motor Driven
Clearance
Top
25 mm (0.98 in.). Optional: 50 mm (1.97 in.)
Bottom
40 mm (1.57 in.)
Edge 3 mm (0.12 in.). Optional: 5 mm (0.20 in.)
Weight 940 kg (2,072.35 lb)
Power Requirement 200 – 240 VAC, Single phase, 50 / 60 Hz, 3 kVA
Air Requirement 72 psi – 87 psi (5 – 6 bar)
Optional
Barcode Scanner, Repair Station, Oine Editor, OCR, Yield Management System (YMS 4.0),
Support Pin, Synchro Drive, Coaxial Light, AI Solutions (Requires GPU Upgrade),
Metrology Module (AOM), Coating Thickness Measurement Module or 3D Laser Module
(1) Optional: 940-965 mm (SMEMA compatible)

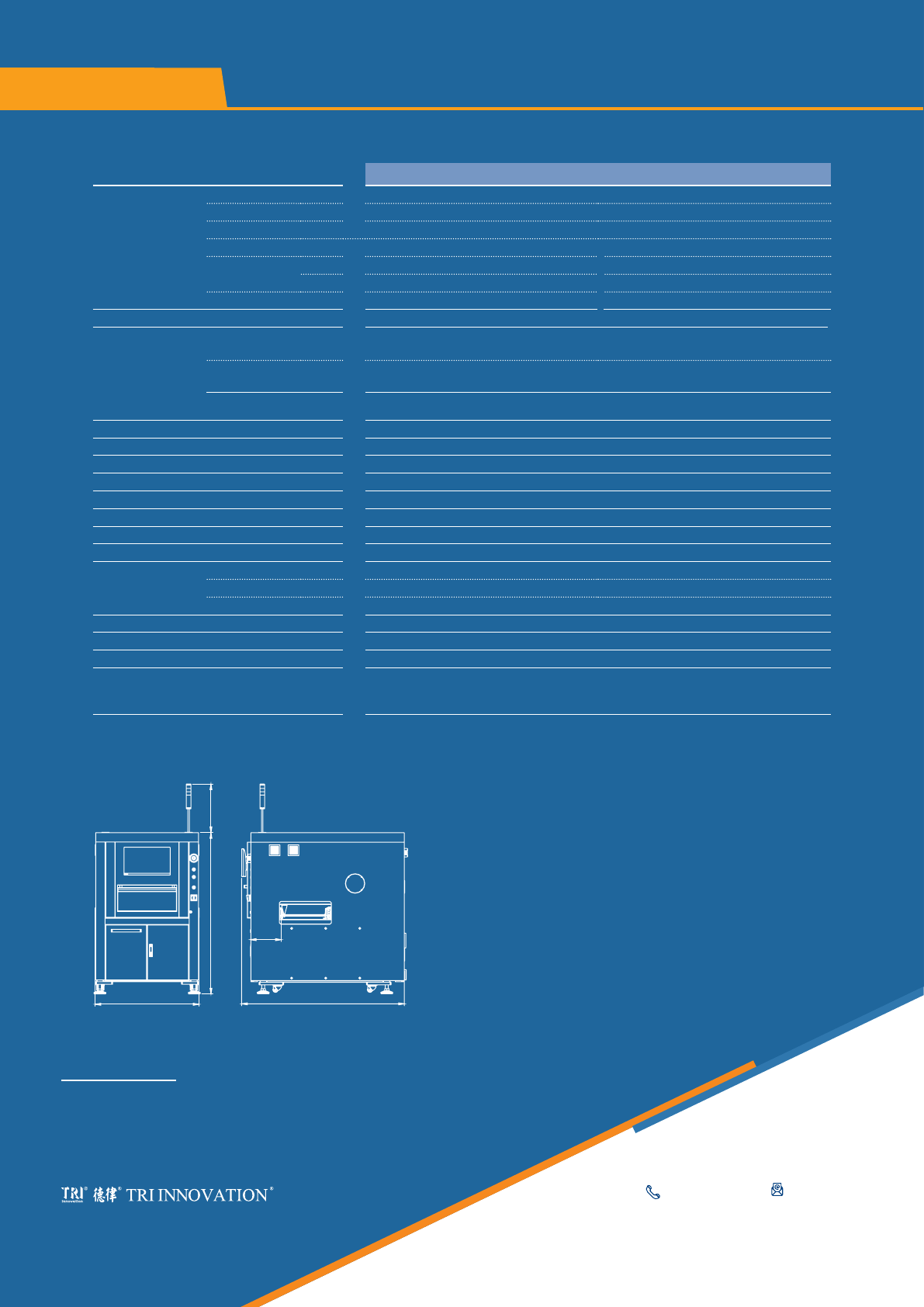

Unit: mm (in.)
1710 (67.32) 515 (20.28)
1100 (43.31) 1720 (67.72)
330
(12.99)
TR7700 SIII Ultra CI
