Retrofit instructions SIPLACE HS-60 2.5 Mechanical conversion 12/2004 Edition 52 2.5.2 Inst alling the lif ti ng t able travel limiter 2 2 : Use the tool to lift the compression spri ng on the PCB clamp as far as the sto…
Retrofit instructions SIPLACE HS-60
12/2004 Edition 2.5 Mechanical conversion
51
: Shorten the air hose (PUN 4x0.75) from the main distributor so that it extends to the conversion
board cover plate (see picture) in the input or output area.
2
: Attach the 2 PUN4 hoses to reducing rings.
: Attach the hoses to the solenoid valves.
2
: Screw the solenoid valves to the plates.
2
2
2
2
2

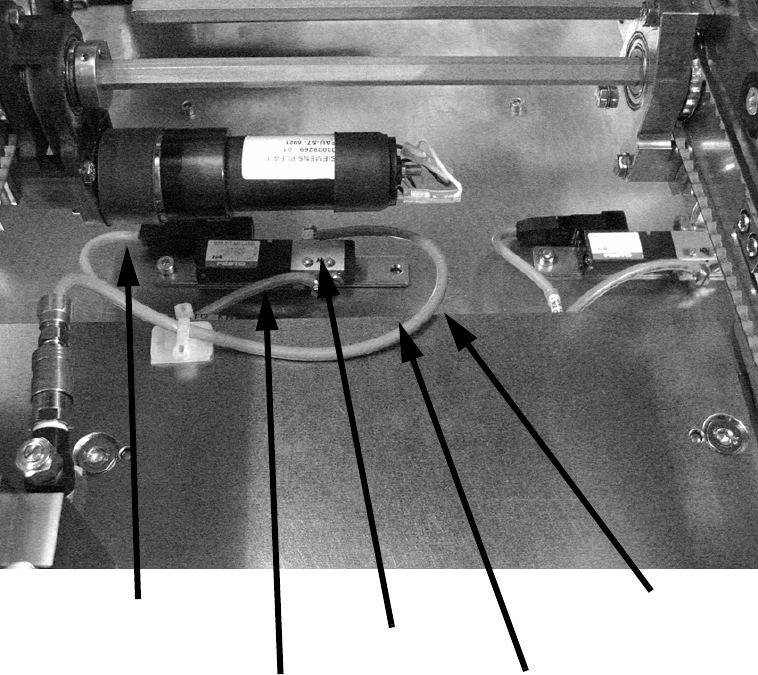

PUN4 hose to ceramic sub-
strate centering
Solenoid valve
Mounting plate
PUN4 hose to
compressed air distributor
Connecting cable
Solenoid valve
Retrofit instructions SIPLACE HS-60
2.5 Mechanical conversion 12/2004 Edition
52
2.5.2 Installing the lifting table travel limiter
2
2
: Use the tool to lift the compression spring on the PCB clamp as far as the stop.
2
2
PCB clamp
PCB clamp
Lift the compression spring
Travel limiter
Tools
Retrofit instructions SIPLACE HS-60
12/2004 Edition 2.5 Mechanical conversion
53

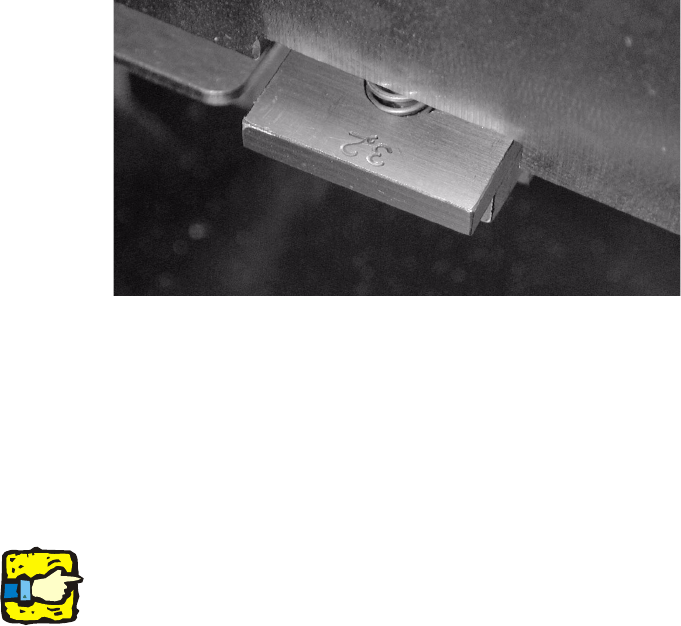

: Insert the travel limiter. You must feel the compression spring snap into place.
2
: Remove the tool.
: Insert two travel limiters per conveyor side wall and placement area.
: If you wish to remove the travel limiters, insert the tool over the limiter and then pull the spring
up.
The travel limiter can then be pulled out at the side.
2
Make sure that the spring does not jump out. It must be lowered correctly back into a groove or
placed around the pins. 2
2
Please contact Siemens L&A Product Management if you need to place the PCBs right up to the
edge. 2
2
: Close the covers over the cable ducts.
: Refit the lifting tables into the placement machine and bolt in place.
2
2
2
2
2
2
2
00366960-02 Travel limiter 2.5 mm for SIPLACE HS-60 / S-27 HM
